NorthTech Up Cut Saw CS36R-2534

Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours, weekend orders are processed the next business day.  Products that are backlog or custom order will be processed as soon as possible. If you have shipping questions, contact us at 800-598-6344.

Description

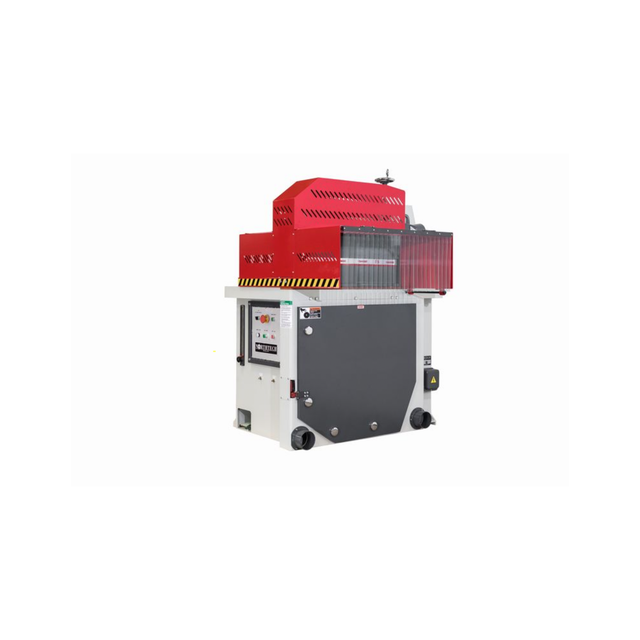

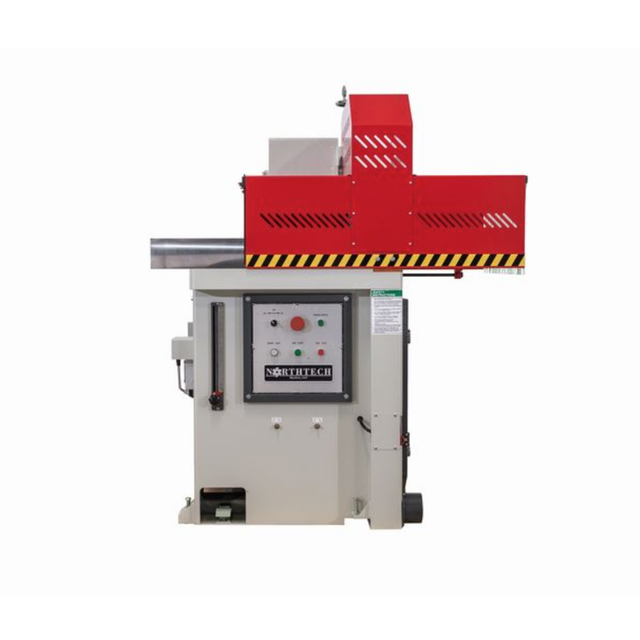

NorthTech Up Cut Saw NT CS36R-2534

  • PRODUCT DIMENSIONS

    • Max cutting capacity: 2" x 33" 4" x 31" 6" x 29" 8" x 25" 10" x 20" 12" x 12"

  • FEATURES

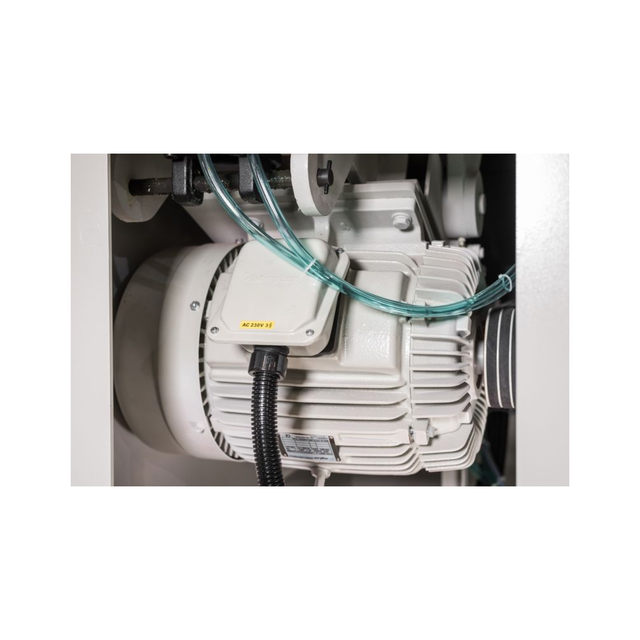

    • Motor: 25HP 3PH 460V; (1500 RPM).

    • 36” Carbide tipped blade with 120T included

    • 2” Saw arbor diameter

    • Cycle operation: Pneumatic

    • Table size: 57-3/4'' x 34-3/4''

    • Safety interlock on blade door.

    • Quick access on front of the machine to adjust stroke.

    • Net weight: 2,605 lbs. • Gross weight: 2,900 lbs.

    • Packing dimensions: (L) 63" x (W) 45" x (H) 79"

    • (1) Tool box and manual

    • Warranty is one year parts

    • All machines are tested at factory prior to shipment providing trouble free start up.

  • OPTIONS

    • 8’ infeed / 8’ outfeed roller system with (2) gravity flip stops

    • 16' infeed / 16' outfeed roller system with (2) gravity flip stops

    • 36” x 120T carbide tipped blade (standard with saw)

    • 36” x 160T carbide tipped blade

    • (1) Gravity flip stop

    • 460V electrics

    • Double palm button actuation in lieu of foot pedal

  • SPECS

    • = Factory

    • Main Motor Hp. = 25 hp.

    • Voltage/ Freq. = 460 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 30 Amps

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 24 Volt Control Voltage

    • Assisted Start = Wye Delta

    • Cut Envelope = 2'' x 33'' 12'' x 12''

    • Max. Width = 2'' x 33''

    • Max. Thickness = 12''

    • Arbor Rpm = 1500 Rpm

    • Blade Size = 36'' Tungsten Carbide Tipped

    • No. of Teeth = 120 Tooth

    • Tooth Spacing = 1''

    • Blade Kerf = .305 In.

    • Dust Collection = 681 CFM @ Extraction Point

    • Dust Port Out = 2- 5'' Top 2- 5'' Bottom

    • Arbor Diameter = 2" Arbor

    • Cycles/Minute = 14 Cuts Per Minute

    • Hold Down Style = T Clamp

    • FLR Included = Filter, Lubricator, Regulator

    • Recommended CFM = 3/8'' Supply Line @ 90 Psi

    • Emergency Stop = Push Button

    • Safety Feature = Safety Interlock Switch

    • Guarding = High Visibility Guarding

    • Operation Style = Pneumatic Foot Pedal

    • Fence Type = Adjustable

    • Fence Dims. = 3'' x 39-3/4''

    • Frame Const. = 1/4'' Steel Construction

    • Worktable Dims. = 34-3/4'' x 57-3/4''

    • Table Const. = Cast Iron

    • Decible Rating = 79 dB

    • Net Weight = 2605 Lbs.

    • Gross Weight = 2900 Lbs.

    • Machine Dims. = 66'' x 58'' x 78''

    • Packaging Dims = 62'' x 45'' x 79''
