NorthTech Up Cut Saw CS30L-1532 + CS30R-1532

$0.00
Shipping calculated at checkout.
MACHINE

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours, weekend orders are processed the next business day.  Products that are backlog or custom order will be processed as soon as possible. If you have shipping questions, contact us at 800-598-6344.

Description

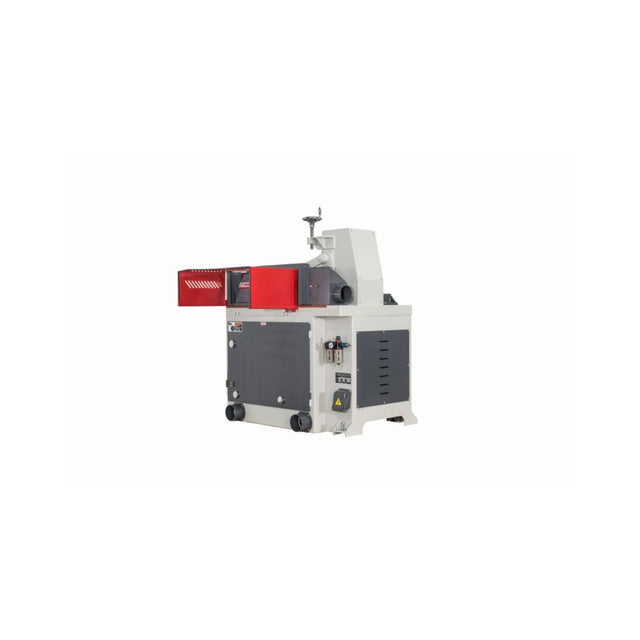

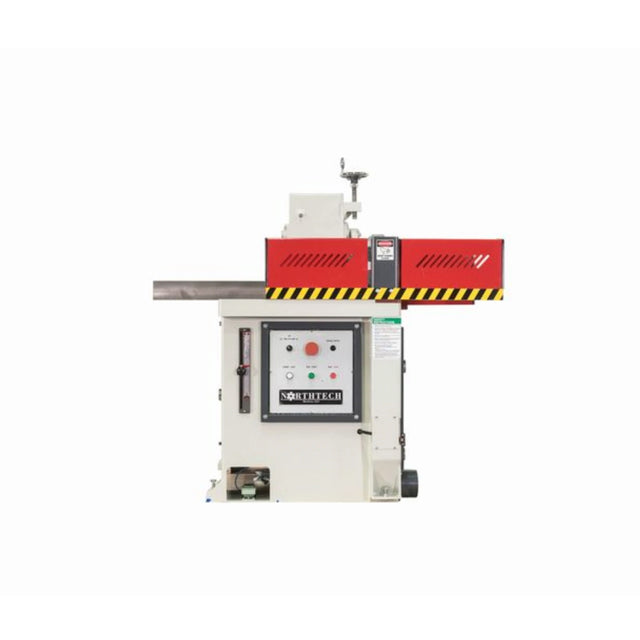

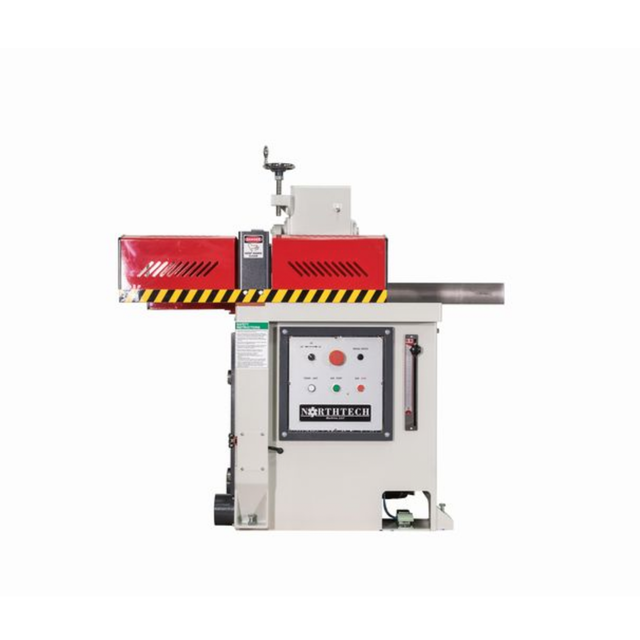

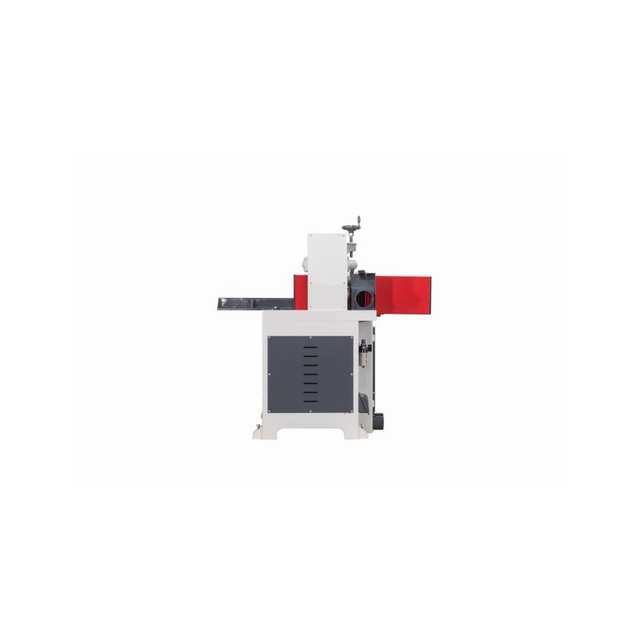

NorthTech Up Cut Saw NT CS30L-1532

  • FEATURES

    • 15 HP motor

    • 30” Carbide tipped blade included

    • 1600 RPM

    • 2” Saw arbor diameter

    • Cycle speed: 12-15 stroke/min

    • Pneumatic cycle

    • Quick access on front of the machine to adjust blade stroke.

    • Safety interlock on blade access door

    • Table size: 50” x 32”

    • (3) 5" dust ports requiring 981 CFM at point of extraction

    • Net / Gross weight: 1,704 lbs. / 1,915 lbs.

    • Packing dimensions: (L) 56" x (W) 38" x (H) 69"

    • (1) Tool box and manual

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start

  • CUTTING CAPACITY

    WITH FENCE

    • 1'' x 25-1/2''

    • 2'' x 25-1/16''

    • 4'' x 23-15/16''

    • 6'' x 21-1/4''

    • 8'' x 16-3/8''

    • 10'' x 6-3/4''

    • 10-3/8'' x 2-1/2''

    WITHOUT FENCE

    • 1'' x 27-3/4''

    • 2'' x 27''

    • 4'' x 24-1/2''

    • 6'' x 21-1/4''

    • 8'' x 16-3/8''

    • 10'' x 6-3/4''

    • 10-3/8'' x 2-1/2''

  • SPECS

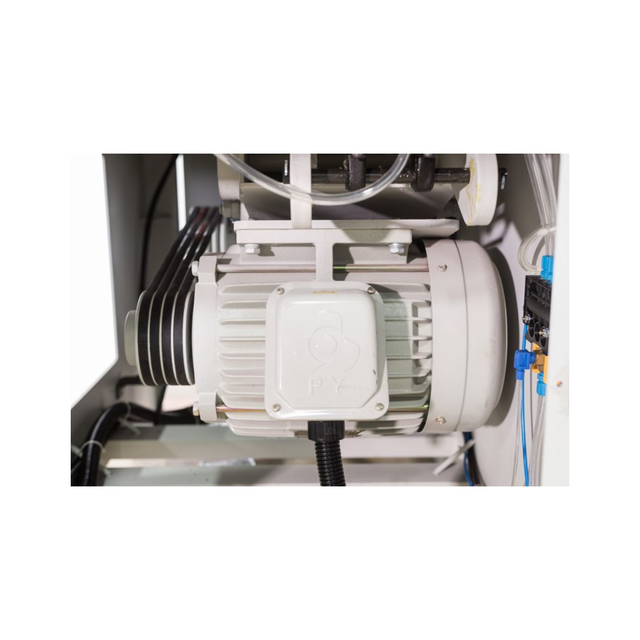

    • Main Motor Hp. = 15 hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 32 Amps

    • Total Hp. = 15 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 24 Volt Control Voltage

    • Assisted Start = Wye Delta

    • Pass-Line = 36''

    • Max. Width = 1'' x 25-1/2''

    • Max. Thickness = 10-3/8'' x 2-1/2''

    • Arbor Rpm = 1600 Rpm

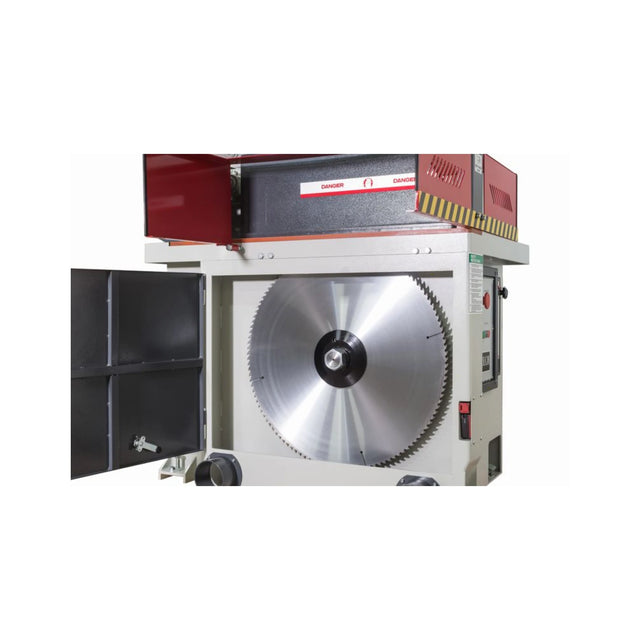

    • Blade Size = 30'' Tungsten Carbide Tipped

    • No. of Teeth = 120 Tooth

    • Tooth Spacing = 3/4''

    • Blade Kerf = .185''

    • Dust Collection = (3) 5'' Ports @ 981 CFM

    • Arbor Diameter = 2" Arbor

    • Cycles/Minute = 12-15 Cycles Per Minute

    • FLR Included = Filter, Lubricator, Regulator

    • Recommended CFM = 1/4'' Line @ 90 PSI

    • Emergency Stop = Push Button

    • Safety Feature = Safety Interlock Switch

    • Guarding = Full Guard with Clear View

    • Operation Style = Pneumatic Foot Pedal

    • Fence Type = Adjustable Fence

    • Fence Dims. = 3-3/4'' x 39-3/8''

    • Frame Const. = Cast/Steel Construction

    • Worktable Dims. = 50'' x 31-7/8''

    • Table Const. = Cast Iron

    • Decible Rating = 77 dB

    • Net Weight = 1704 Lbs.

    • Gross Weight = 1915 Lbs.

    • Machine Dims. = 50'' x 64'' x 63''

    • Packaging Dims = 56'' x 38'' x 69''
