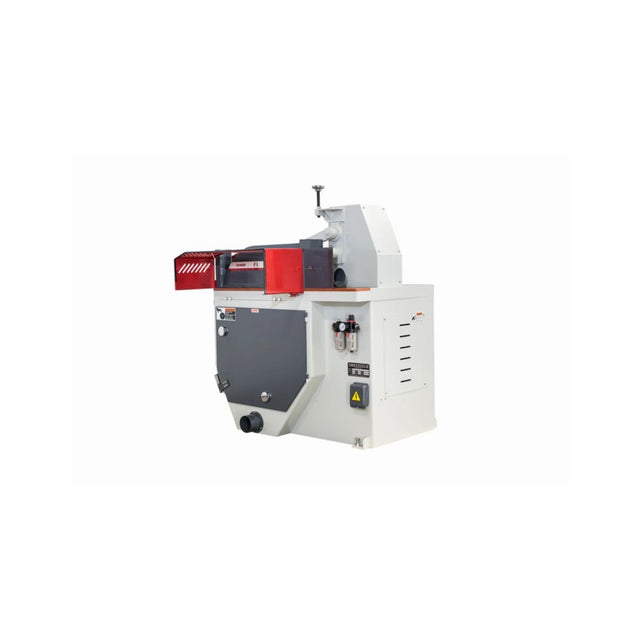

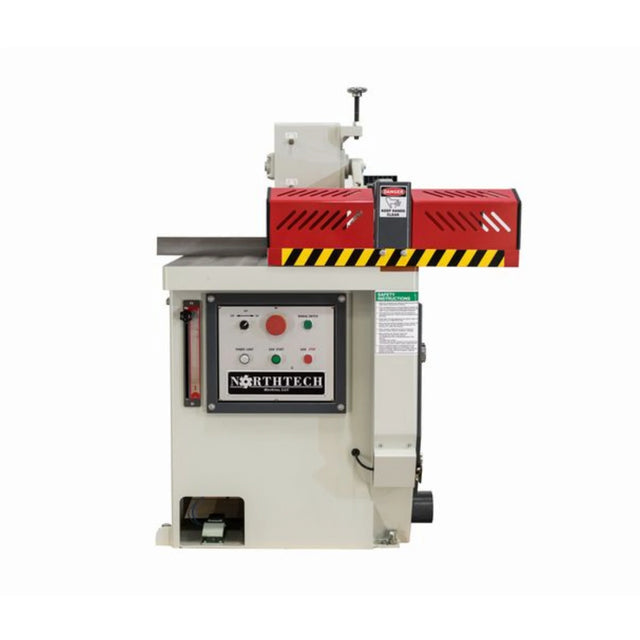

NorthTech Up Cut Saw CS24L-1534 + CS24R-1534
Description
Description

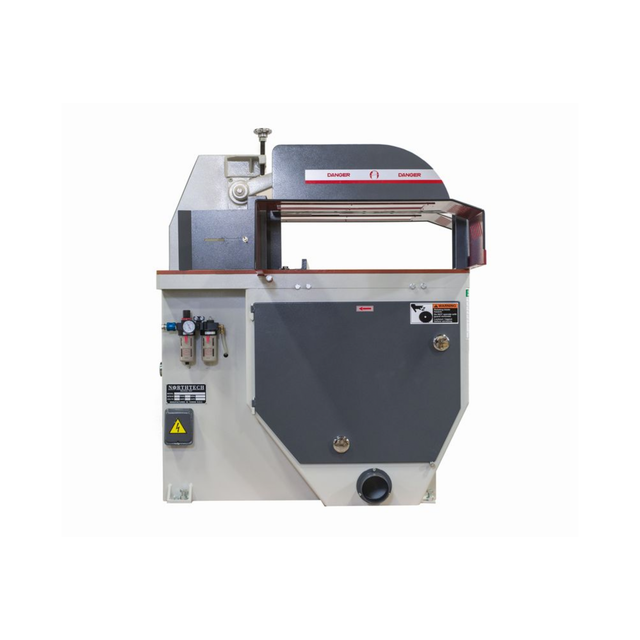

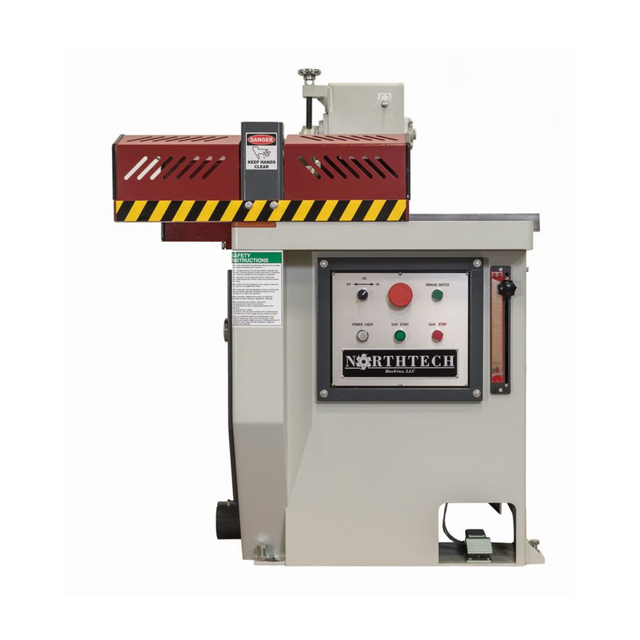

NorthTech Up Cut Saw NT CS24L-1534
-
FEATURES
• 15HP motor, 3PH 460V with 24V magnetic controls
• 24” Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatic
• Quick access on front of the machine to adjust blade stroke.
• Safety interlock on blade access door
• Table size: 28-3/4” x 45”
• 2100 RPM
• Net / Gross weight: 1,285 lbs. / 1,458 lbs.
• Machine dimensions: (L) 32" x (W) 45" x (H) 56"
• Packing dimensions: (L) 36" x (W) 51" x (H) 61"
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
-
PRODUCT DIMENSIONS
• Max cutting capacity: 2" x 21", 4" x 19", 6" x 15", 8" x 8"
• Shipping Dimensions 8' In feed 8' Out Feed: 100'' x 28'' x 19'' 235 Lbs.
-
SPECS
• = Factory

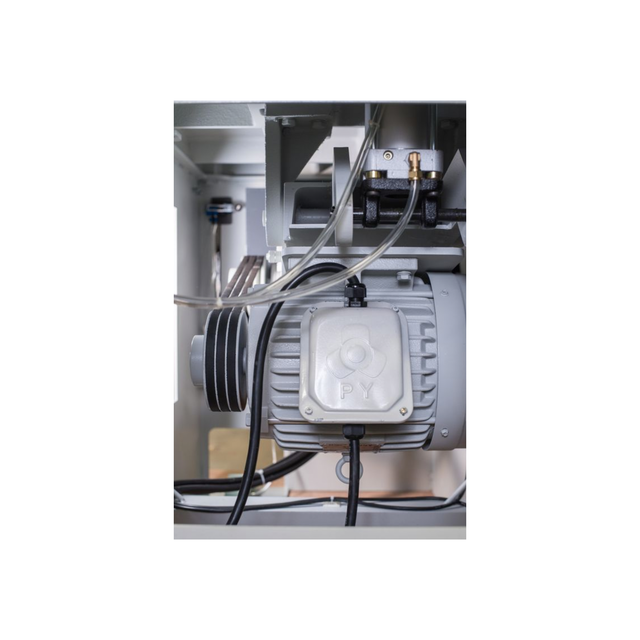

• Main Motor Hp. = 15 hp.
• Voltage/ Freq. = 460 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 16 Amps
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Assisted Start = Wye Delta
• Pass-Line = 34''
• Cut Envelope = 2'' x 21'' 8'' x 8''
• Max. Width = 2'' x 21''
• Max. Thickness = 8''
• Arbor Rpm = 2100
• Blade Size = 24'' Tungsten Carbide Tipped
• No. of Teeth = 120 Tooth
• Tooth Spacing = 5/8 In.
• Blade Kerf = 4 mm
• Dust Collection = (2) 4'' @ 900 CFM
• Dust Port Out = 4'' Top 4'' Bottom
• Arbor Diameter = 1'' Arbor
• Cycles/Minute = 40 Cuts Per Minute
• Hold Down Style = T Clamp
• Emergency Stop = Push Button
• Safety Feature = Safety Interlock Switch
• Guarding = Full Guard with Clear View
• Operation Style = Pneumatic Foot Pedal
• Fence Type = Adjustable Fence
• Fence Dims. = 2" x 25''
• Adjust. Stroke = 7-3/4'' Adj. on Arbor Stroke
• Frame Const. = 1/4'' Steel Construction
• Worktable Dims. = 28-3/4'' x 45''
• Table Const. = Cast Iron
• Decible Rating = 68 dB
• Net Weight = 1285 Lbs.
• Gross Weight = 1458 Lbs.
• Machine Dims. = 31-3/4'' x 45'' x 56''
• Packaging Dims = 36'' x 51'' x 61''
