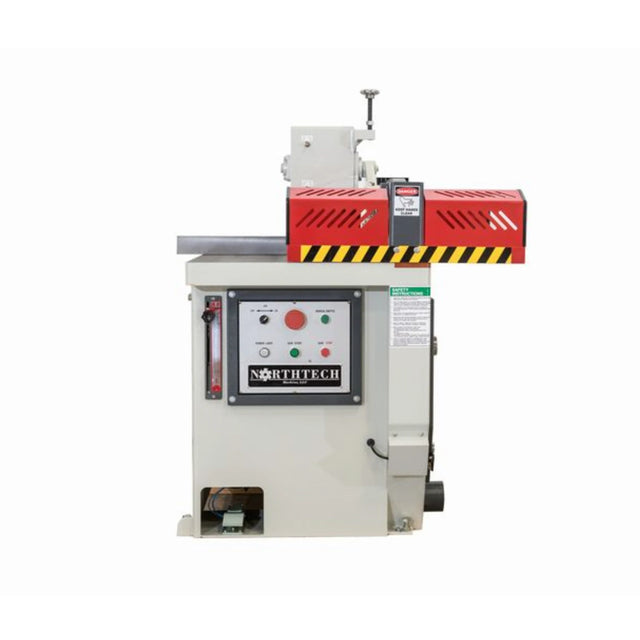

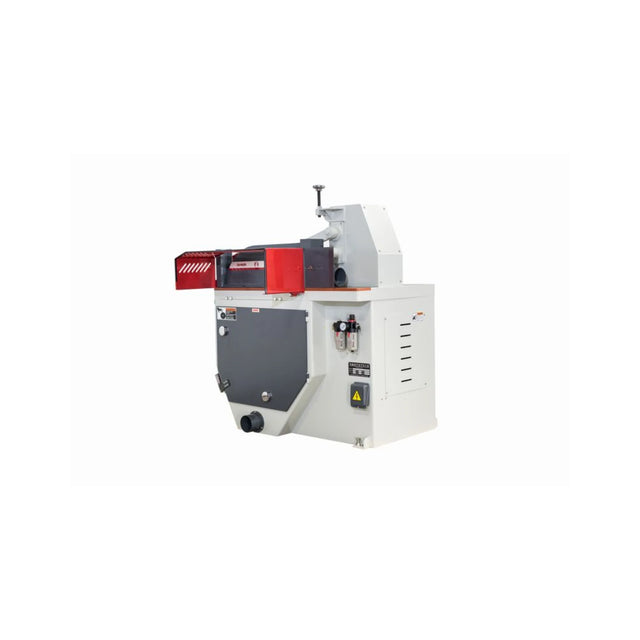

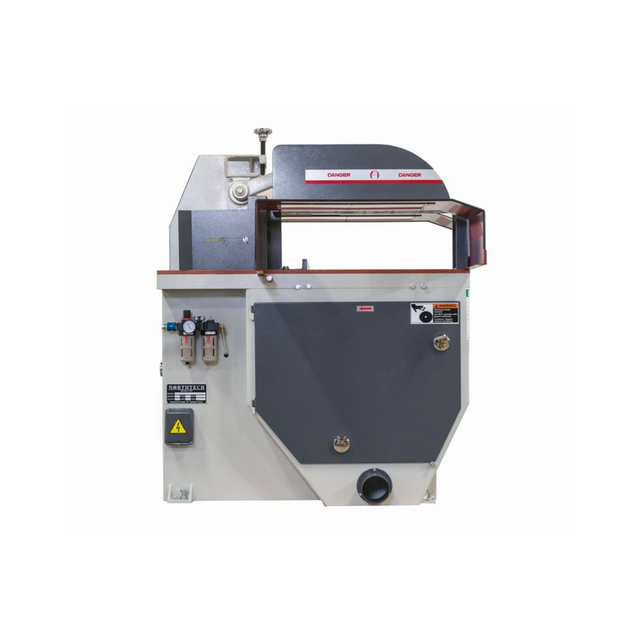

NorthTech Up Cut Saw CS24L-1532 + CS24R-1532

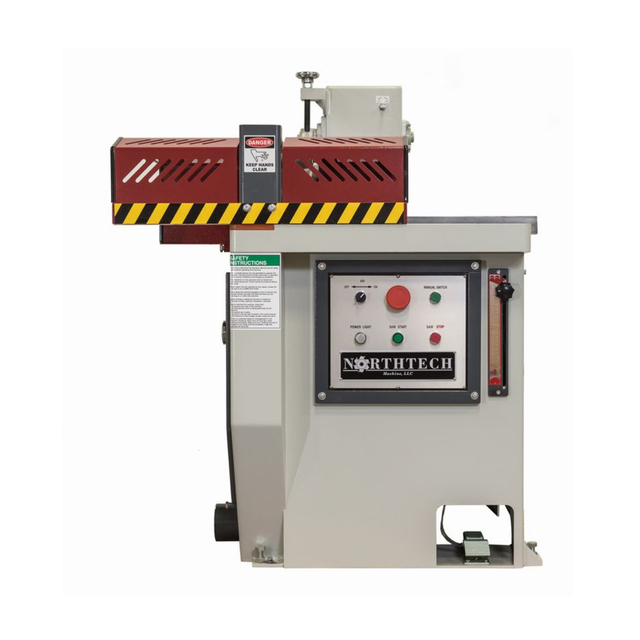

NorthTech Up Cut Saw CS24L-1532 + CS24R-1532 - Left
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
NorthTech Up Cut Saw CS24L-1532 + CS24R-1532
Description
Description
NorthTech Up Cut Saw NT CS24L-1532 + CS24L-1532
-
FEATURES

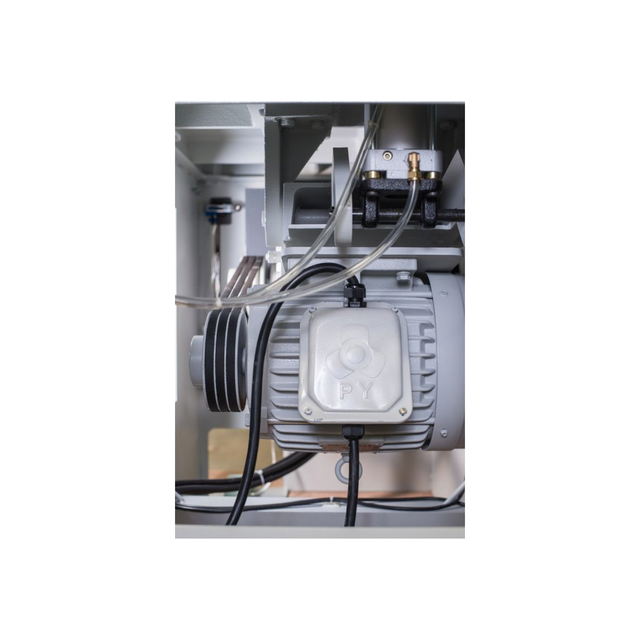

• 15HP motor, 3PH 230V with 24V magnetic controls
• 24” Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatic
• Quick access on front of the machine to adjust blade stroke.
• Safety interlock on blade access door
• Table size: 28-3/4” x 45”
• 2100 RPM
• Net / Gross weight: 1,285 lbs. / 1,458 lbs.
• Machine dimensions: (L) 32" x (W) 45" x (H) 56"
• Packing dimensions: (L) 36" x (W) 51" x (H) 61"
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
-
PRODUCT DIMENSIONS
• Max cutting capacity: 2" x 21", 4" x 19", 6" x 15", 8" x 8"
• Shipping Dimensions 8' In feed 8' Out Feed: 100'' x 28'' x 19'' 235 Lbs.
-
SPECS
• = Factory
• Main Motor Hp. = 15 hp.
• Voltage/ Freq. = 230 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 32 Amps
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Assisted Start = Wye Delta
• Pass-Line = 34''
• Cut Envelope = 2'' x 21'' 8'' x 8''
• Max. Width = 2'' x 21''
• Max. Thickness = 8''
• Arbor Rpm = 2100
• Blade Size = 24'' Tungsten Carbide Tipped
• No. of Teeth = 120 Tooth
• Tooth Spacing = 5/8 In.
• Blade Kerf = 4 mm
• Dust Collection = (2) 4'' @ 900 CFM
• Dust Port Out = 4'' Top 4'' Bottom
• Arbor Diameter = 1'' Arbor
• Cycles/Minute = 40 Cuts Per Minute
• Hold Down Style = T Clamp
• Emergency Stop = Push Button
• Safety Feature = Safety Interlock Switch
• Guarding = Full Guard with Clear View
• Operation Style = Pneumatic Foot Pedal
• Fence Type = Adjustable Fence
• Fence Dims. = 2" x 25''
• Adjust. Stroke = 7-3/4'' Adj. on Arbor Stroke
• Frame Const. = 1/4'' Steel Construction
• Worktable Dims. = 28-3/4'' x 45''
• Table Const. = Cast Iron
• Decible Rating = 68 dB
• Net Weight = 1285 Lbs.
• Gross Weight = 1458 Lbs.
• Machine Dims. = 31-3/4'' x 45'' x 56''
• Packaging Dims = 36'' x 51'' x 61''
ITEM ID: 1082
