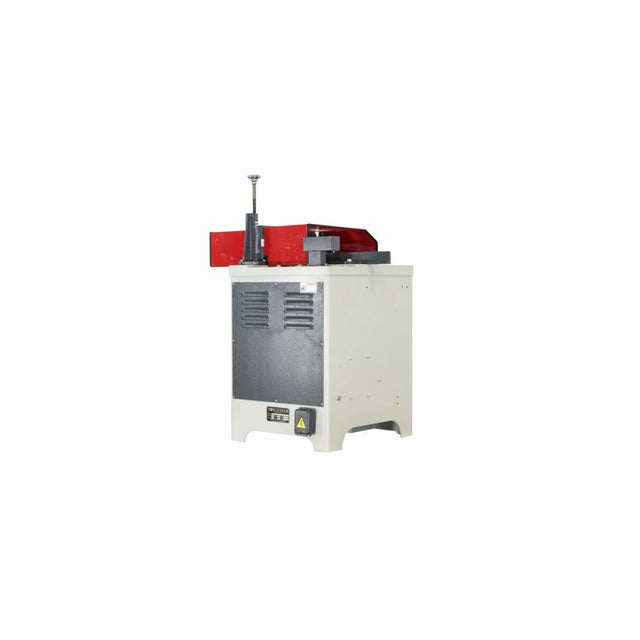

NorthTech Up Cut Saw NT CS20L-1034
-
FEATURES

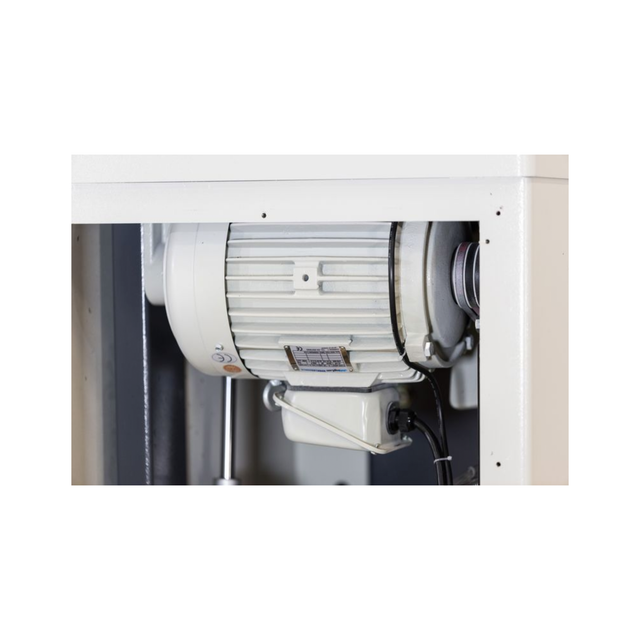

• 10HP motor, 3PH 460V with 24V magnetic controls
• 20” Tungsten Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatic
• Quick access on front of the machine to adjust blade stroke.
• Safety interlock for blade access
• Table size: 20” x 26”
• 2700 RPM
• Net / Gross weight: 788 lbs. / 874 lbs.
• Packing dimensions: (L) 30" x (W) 35" x (H) 51"
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
-
CUT CAPACITY
• Cut capacity with Factory Fence: 1" x 14.5", 2" x 14", 3" x 13", 4" x 12", 5" x 11"
• Cut capacity without Factory Fence: 1" x 15.5", 2" x 15-1/8", 3" x 14-3/8", 4" x 13.5", 5-3/4" x 9-1/2"
-
SPECS
• = Factory
• Main Motor Hp. = 10 hp.
• Voltage/ Freq. = 460 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 12 Amps
• Electronics = UL Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Pass-Line = 36''
• Cut Envelope = 1'' x 15-1/2'', 5-3/4'' x 9-1/
• Max. Width = 17-1/4''
• Max. Thickness = 5-7/8''
• Arbor Rpm = 2700 Rpm
• Blade Size = 20'' Tungsten Carbide Tipped
• No. of Teeth = 120 Tooth
• Tooth Spacing = 1/2''
• Blade Kerf = .141''
• Dust Collection = (1) 4'' @ 450 CFM
• Arbor Diameter = 1'' Arbor
• Cycles/Minute = 40 Cuts Per Minute
• Hold Down Style = T Clamp
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 3/8'' Supply Line @ 90 Psi
• Emergency Stop = Push Button
• Safety Feature = Safety Interlock Switch
• Guarding = High Visibility Guarding
• Operation Style = Pneumatic Foot Pedal
• Fence Type = Adjustable Fence
• Fence Dims. = 2" x 25''
• Worktable Dims. = 21-1/2'' x 67''
• Table Const. = Cast Iron
• Decible Rating = 75 dB
• Net Weight = 788 Lbs.
• Gross Weight = 874 Lbs.
• Machine Dims. = 42'' x 34'' x 54-1/2''
• Packaging Dims = 35'' x 30'' x 51''
ITEM ID: 3502
