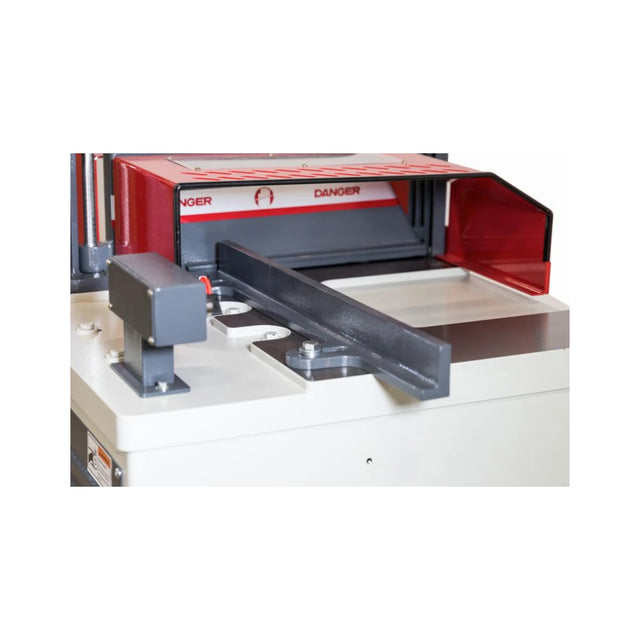

NorthTech Up Cut Saw CS20L-1032 + CS20R-1032

Shipping calculated at checkout.
MACHINE

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours, weekend orders are processed the next business day.  Products that are backlog or custom order will be processed as soon as possible. If you have shipping questions, contact us at 800-598-6344.

Description

NorthTech Up Cut Saw NT CS20L-1032

  • FEATURES

    • 10HP motor, 3PH 230V with 24V magnetic controls

    • 20” Tungsten Carbide tipped blade included

    • 1” Saw arbor diameter

    • Cycle operation: Pneumatic

    • Quick access on front of the machine to adjust blade stroke.

    • Safety interlock for blade access

    • Table size: 20” x 26”

    • 2700 RPM

    • Net / Gross weight: 788 lbs. / 874 lbs.

    • Packing dimensions: (L) 30" x (W) 35" x (H) 51"

    • (1) Tool box and manual

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start up.

  • CUT CAPACITY

    • Cut capacity with Factory Fence: 1" x 14.5", 2" x 14", 3" x 13", 4" x 12", 5" x 11"

    • Cut capacity without Factory Fence: 1" x 15.5", 2" x 15-1/8", 3" x 14-3/8", 4" x 13.5", 5-3/4" x 9-1/2"

  • SPECS

    • = Factory

    • Main Motor Hp. = 10 hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 24.6 Amps

    • Electronics = UL Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 24 Volt Control Voltage

    • Pass-Line = 36''

    • Cut Envelope = 1'' x 15-1/2'', 5-3/4'' x 9-1/

    • Max. Width = 17-1/4''

    • Max. Thickness = 5-7/8''

    • Arbor Rpm = 2700 Rpm

    • Blade Size = 20'' Tungsten Carbide Tipped

    • No. of Teeth = 120 Tooth

    • Tooth Spacing = 1/2''

    • Blade Kerf = .141''

    • Dust Collection = (1) 4'' @ 450 CFM

    • Arbor Diameter = 1'' Arbor

    • Cycles/Minute = 40 Cuts Per Minute

    • Hold Down Style = T Clamp

    • FLR Included = Filter, Lubricator, Regulator

    • Recommended CFM = 3/8'' Supply Line @ 90 Psi

    • Emergency Stop = Push Button

    • Safety Feature = Safety Interlock Switch

    • Guarding = High Visibility Guarding

    • Operation Style = Pneumatic Foot Pedal

    • Fence Type = Adjustable Fence

    • Fence Dims. = 2" x 25''

    • Worktable Dims. = 21-1/2'' x 67''

    • Table Const. = Cast Iron

    • Decible Rating = 75 dB

    • Net Weight = 788 Lbs.

    • Gross Weight = 874 Lbs.

    • Machine Dims. = 42'' x 34'' x 54-1/2''

    • Packaging Dims = 35'' x 30'' x 51''
