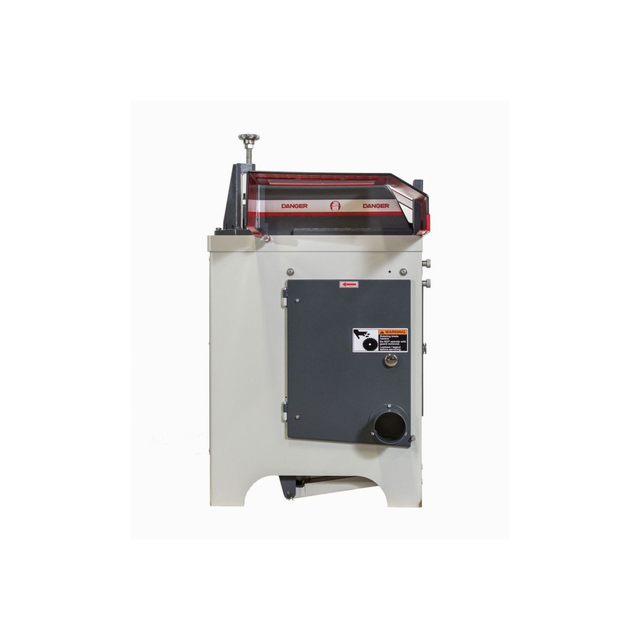

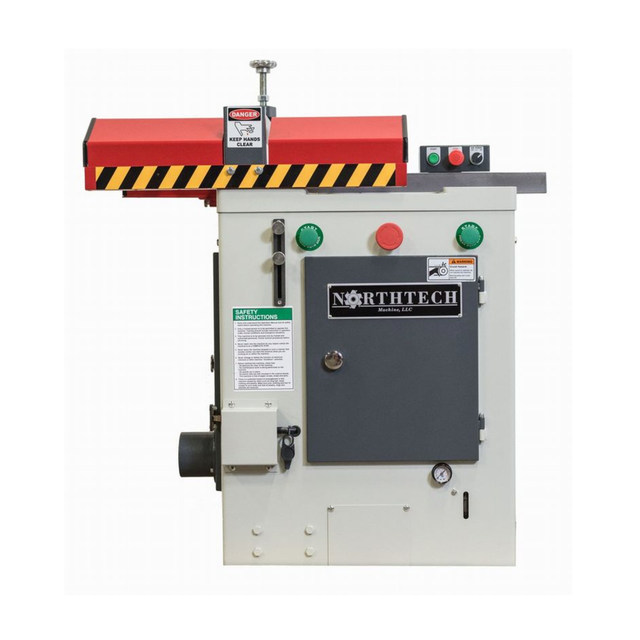

NorthTech Up Cut Saw CS18LPBA-1032

$0.00
Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours, weekend orders are processed the next business day.  Products that are backlog or custom order will be processed as soon as possible. If you have shipping questions, contact us at 800-598-6344.

Description

NorthTech Up Cut Saw NT CS18LPBA-1032

  • PRODUCT DIMENSIONS

    • Max cutting capacity: 1" x 13-1/2", 2" x 12", 3" x 11", 4" x 10"

  • FEATURES

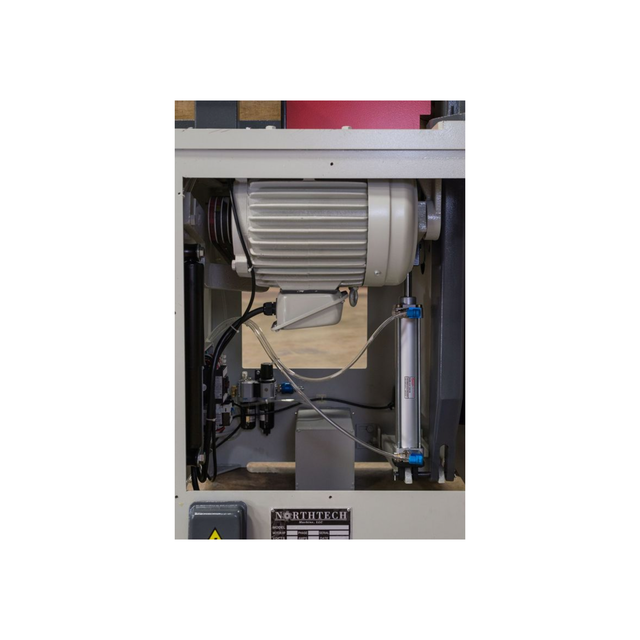

    • 10HP motor, 3PH 230V with 24V magnetic controls

    • 18” 120T Carbide tipped blade included

    • 1” Saw arbor diameter

    • Cycle operation: Pneumatic

    • Table size: 26” x 27.25”

    • Quick access on front of the machine to adjust blade stroke.

    • Dust requirements: (1) 4" dust port requiring 450 CFM at point of extraction

    • Net weight: 730 lbs.

    • Gross weight: 890 lbs.

    • Packing dimensions: (L) 33" x (W) 33" x (H) 46"

    • (1) Tool box and manual

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start up.

  • OPTIONS

    • 8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops

    • 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops

    • Custom infeed/outfeed rollers up to 40’

    • 18" x 80T carbide tipped blade

    • 18” x 100T carbide tipped blade

    • 18” x 120T carbide tipped blade

    • (1) Gravity flip stop

    • 460V 3Ø electrics

    • Safety interlock for blade access

    • Double palm button actuation in place of foot pedal

    • Rigid stop

  • SPECS

    • = N09

    • Main Motor Hp. = 10 hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 24 Amps

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 24 Volt Control Voltage

    • Cut Envelope = 1'' x 13'' 2'' x 12'' 4'' x

    • Min. Length = 14'' from Blade to Guard Edge

    • Max. Width = 1'' x 13''

    • Max. Thickness = 5''

    • Arbor Rpm = 3600 Rpm

    • Blade Size = 18'' Tungsten Carbide Tipped

    • No. of Teeth = 120 Tooth

    • Tooth Spacing = 15/32 In.

    • Blade Kerf = .135 In.

    • Dust Collection = 4'' 450 CFM

    • Dust Port Out = 4'' Bottom

    • Arbor Diameter = 1''

    • Cycles/Minute = 45 Cuts Per Minute

    • Hold Down Style = T Clamp

    • FLR Included = Filter, Lubricator, Regulator

    • Recommended CFM = 480 nl/min

    • Emergency Stop = Push Button

    • Safety Feature = Safety Interlock Switch

    • Guarding = High Visibility Guarding

    • Operation Style = Pneumatic Foot Pedal

    • Fence Type = Adjustable Fence

    • Fence Dims. = 2" x 25''

    • Adjust. Stroke = 2-3/4'' Adj. on Arbor Stroke

    • Frame Const. = 1/4'' Steel Construction

    • Worktable Dims. = 26'' x 27-1/4''

    • Table Const. = Machined Steel

    • Decible Rating = 78 dB

    • Net Weight = 730 Lbs.

    • Gross Weight = 890 Lbs.

    • Machine Dims. = 26'' x 27-1/4'' x 49-1/2''

    • Packaging Dims = 40'' x 48'' x 55''
