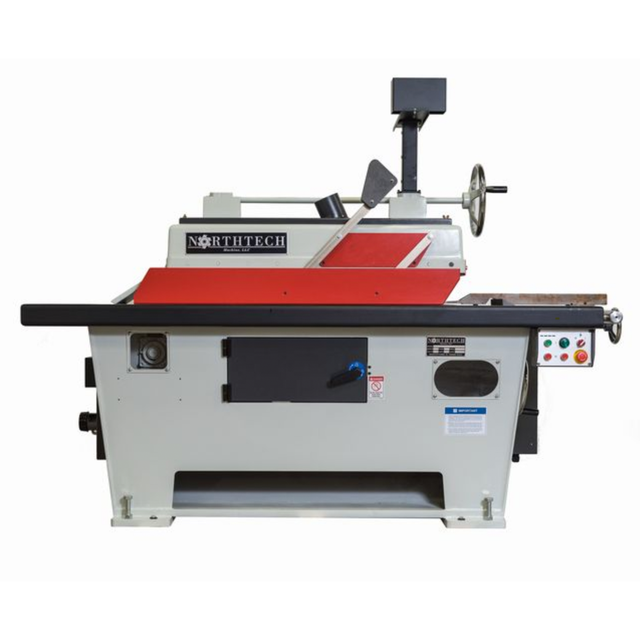

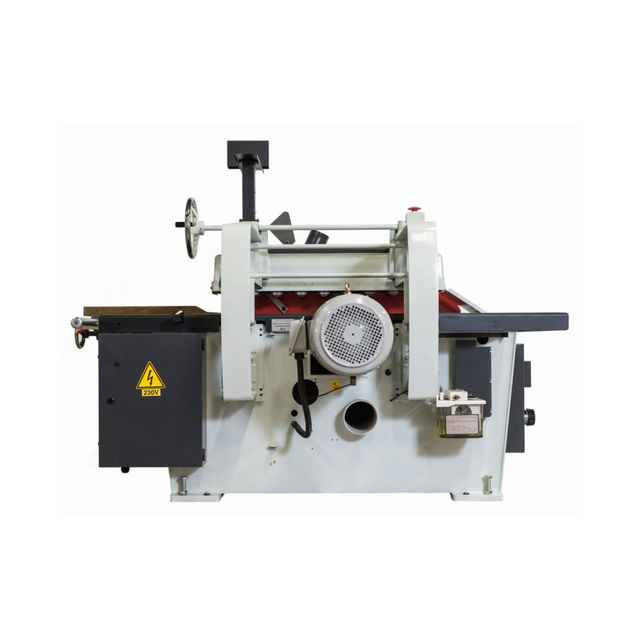

NorthTech Straight Line Rip Saw SLR-18SC-2034

Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours, weekend orders are processed the next business day.  Products that are backlog or custom order will be processed as soon as possible. If you have shipping questions, contact us at 800-598-6344.

Description

NorthTech Precision Straight Line Rip Saw SLR-18SC-2032

  • FEED SYSTEM

    • Saw motor: 20HP, 3PH 460V

    • Feed: 1.5HP variable from 50' - 190' / minute

  • PRODUCT DIMENSIONS

    • Min. thickness: 3/16"

    • Max depth of cut: 5" with 18'' Blade

    • Max depth of cut: 4" with 16'' Blade

    • Max depth of cut: 3" with 14'' Blade

    • Max. width of stock: (Blade to column arms) 26-1/4"

  • FEATURES

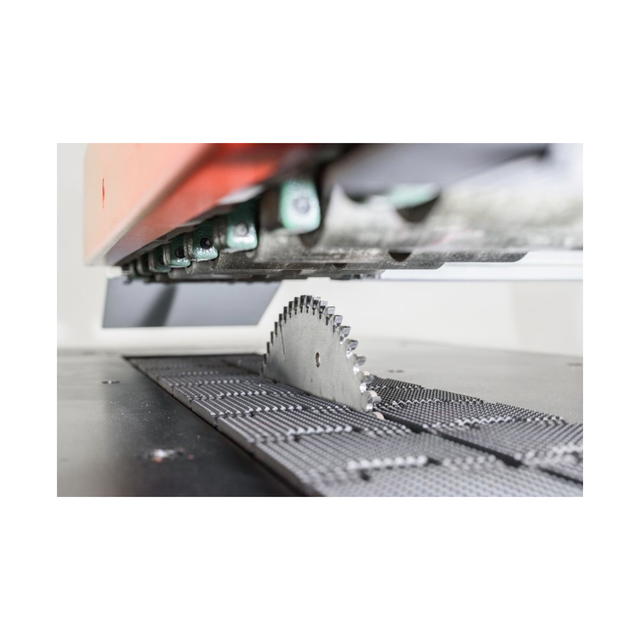

    • “True Track" Chain and Race

    • Table size 83” x 40”

    • Machine frame is constructed of a 1" thick base plate

    • Solid steel frame with 1" thick column arms.

    • Safety door switch with pneumatic motor brake.

    • 2" arbor and large support bearings.

    • Glue line guarantee on 4/4 stock is 14' - 16' at 50 FPM.

    • All motors and electrical are UL rated.

    • Industrial fence with cam lock quick release on rack and pinion glide.

    • Two rows of heavy duty kickback fingers.

    • (8) large pressure rollers for optimum glue line ripping.

    • An automatic mechanical oiling system with low oil level feed shutoff.

    • A 100mw laser light and mounting bracket are included.

    • (1) Tool box

    • Amperage requirements: 20HP + 1.5HP 230V / 460V: 54.3A / 27A.

    • Dust requirements: (1) 4" dust port requiring 450 CFM (1) 6" dust port requiring 1,000 CFM

    • Weight: 3455 lbs.

    • Machine dimensions: (L) 90" x (W) 67" x (H) 68"

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start up. F.O.B. Borden, IN

  • SPECS

    • Main Motor Hp. = 20 hp.

    • Voltage/ Freq. = 460 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 27.15 Amps

    • Feed Hp. = 3 Hp.

    • Feed System = 4'' Split Chain with True Trac

    • Drive System = Belt

    • Feed Speed = 50 - 190 FPM

    • Variable Speed = Mechanical

    • Elevation Style = Manual Wheel Adjustment

    • Elevation Sys. = Jack Screw / Linear Guides

    • Total Hp. = 23 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Pass-Line = 32-5/8''

    • Throat Capacity = 26-1/4''

    • Min. Length = 16" Kickback to First Roller

    • Min. Width = 1"

    • Min. Thickness = 3/16"

    • Max. Thickness = 5''

    • Glue Line Rip = 14' - 16' 4/4 stock @ 50 FPM

    • Arbor Rpm = 3550 Rpm

    • Blade Size = 14'' Tungsten Carbide Tipped

    • No. of Teeth = 70 Tooth

    • Tooth Spacing = 5/8 In.

    • Blade Kerf = .197 In.

    • Tracking Style = "True Track" System

    • Dust Collection = 1417 Total CFM

    • Dust Port Out = 4'' Top 6'' Bottom

    • Chain Adj. = True Track Adjustable Chain

    • Hold Down Style = 8 Spring Loaded Hold Downs

    • Kickback Finger = (85) Bottom (40) Top

    • Emergency Stop = Push Button

    • Rear E Stop = Push Button

    • Safety Feature = Door Switch / Motor Brake

    • Guarding = High Visibility Guarding

    • Oiler = Automatic Mechanical Oiler

    • Low Oil Warning = Low Oil Shut-off

    • Fence Type = Industrial Cam Lock Quick Rel

    • Fence Dims. = 1-3/4'' x 27-3/4''

    • Brake System = Air Brake on Motor

    • Frame Const. = 1" Base 1/2" Cabinet 3/4" Arms

    • Worktable Dims. = 83" x 40" x 3.5" Table

    • Table Const. = Steel

    • Laser = 100mw Laser Light & Mount Bracket

    • Decible Rating = 84 dB

    • Net Weight = 3455 Lbs.

    • Gross Weight = 3675 Lbs.

    • Machine Dims. = 90" x 67" x 68"

    • Packaging Dims = 91'' x 72'' x 78''
