NorthTech Straight Line Rip Saw SLR-14SC (230 Volt)

SKU NORTHTECH-STRAIGHT-LINE-SLR-14SC

NorthTech Precision Straight Line Rip Saw NT SLR-14SC

  • FEED SYSTEM

    • Saw motor: 15HP, 3PH 230V

    • Feed: 1.5HP variable from 40 - 120 FPM

  • PRODUCT DIMENSIONS

    • Min. thickness: 3/16"

    • Max depth of cut: 3-1/8" (with 14" blade)

    • Max. width of stock: (Blade to column arms) 18"

  • FEATURES

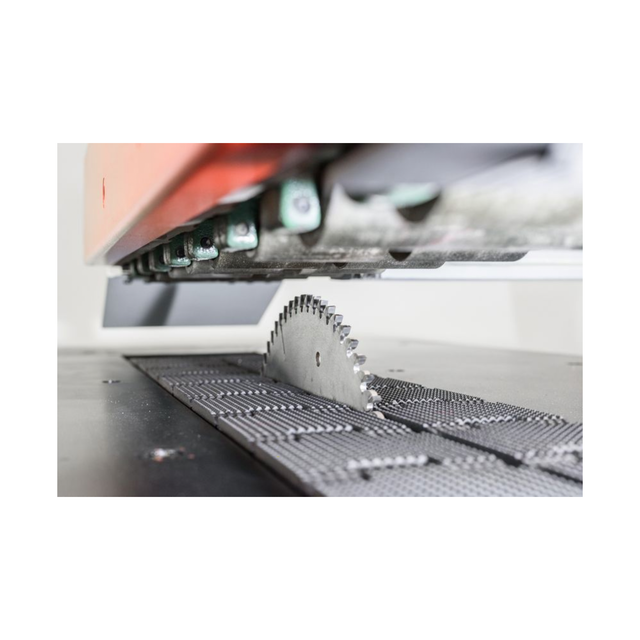

    • Chain and Race equipped with "True Track"

    • Table size 61" x 33-1/2" x 31-1/2''

    • Machine frame is constructed of a 1" thick base plate.

    • Solid steel frame with 3/4" thick column arms.

    • Safety door switch with pneumatic motor brake.

    • 2" arbor and large support bearings.

    • Glue line guarantee on 8ft 4/4 at 50 FPM.

    • All motors and electrical are UL rated.

    • Industrial fence with cam lock quick release on rack and pinion glide.

    • Two rows of heavy duty kickback fingers.

    • (6) large pressure rollers for optimum glue line ripping.

    • An automatic mechanical oiling system with low oil level feed shutoff.

    • A 100mw laser light (red) and mounting bracket are included.

    • (1) Tool box

    • Amperage requirements: 15HP + 1.5HP 230V / 460V: 40A / 20A.

    • Dust requirements: (1) 4" @ 450 CFM (1) 6'' Port @ 981 CFM

    • Weight: 1,930 lbs.

    • Machine dimensions: (L) 70" x (W) 59" x (H) 71"

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start up.

  • SPECS

    • Main Motor Hp. = 15 hp.

    • Direct Drive = Direct Drive

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 39.7 Amps

    • Feed Hp. = 1.5 Hp.

    • Feed System = 4'' Split Chain with True Trac

    • Drive System = Belt

    • Feed Speed = 40-120 FPM

    • Variable Speed = CVT Adjustable Drive

    • Elevation Style = Manual Wheel Adjustment

    • Elevation Sys. = Linear Gauge with Hand Wheel

    • Total Hp. = 16.5 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Assisted Start = Wye Delta

    • Pass-Line = 31-1/2''

    • Throat Capacity = 18''

    • Min. Length = 12'' 1st Hold Down to Kickback

    • Max. Length = Infinite

    • Min. Width = 1"

    • Min. Thickness = 3/16"

    • Max. Thickness = 3-1/8''

    • Glue Line Rip = Guaranteed 8' 4/4 stock @ 50 FPM

    • Arbor Rpm = 3520 RPM

    • Blade Size = 14'' Tungsten Carbide Tipped

    • No. of Teeth = 70 Tooth

    • Tooth Spacing = 5/8 In.

    • Blade Kerf = .197 In.

    • Tracking Style = "True Track" System

    • Vertical Travel = 3/16'' - 3-1/2''

    • Dust Collection = 1417 Total CFM

    • Dust Port Out = (1) 4'' Top (1) 6'' Bottom

    • Arbor Diameter = 2" Arbor

    • Chain Adj. = True Track Adjustable Chain

    • Hold Down Style = (6) Spring Loaded Hold Downs

    • Kickback Finger = (31) Top (59) Bottom Fingers

    • Recommended CFM = 1417 Total CFM

    • Emergency Stop = Push Button

    • Rear E Stop = Push Button

    • Safety Feature = Door Switch / Motor Brake

    • Guarding = High Visibility Guarding

    • Oiler = Automatic Mechanical Oiler

    • Low Oil Warning = Low Oil Shut-off

    • Fence Type = Industrial Cam Lock Quick Rel

    • Fence Dims. = 1-3/4'' x 23-3/4''

    • Brake System = Pneumatic Brake

    • Frame Const. = 1/4'' Steel Construction

    • Worktable Dims. = 61'' x 33-1/2''

    • Table Const. = Steel

    • Laser = 100mw Laser Light & Mount Bracket

    • Decible Rating = 80 dB

    • Net Weight = 1930 Lbs.

    • Gross Weight = 2150 Lbs.

    • Machine Dims. = 69-1/2'' x 54'' x 62-1/2''

    • Packaging Dims = 72'' x 59'' x 71''

ITEM ID: 1252
