NorthTech | SKU: NORTHTECH-NOTCHER-NT -N14-355-XR

NorthTech Panel Notcher NT PN14-355-XR

Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.

Description

NorthTech Panel Notcher NT PN14-355-XR

DETAILS
FEATURES
SPECS

DETAILS

• 90Â° Notcher

• Air over hydraulic operation for quick and stable strokes

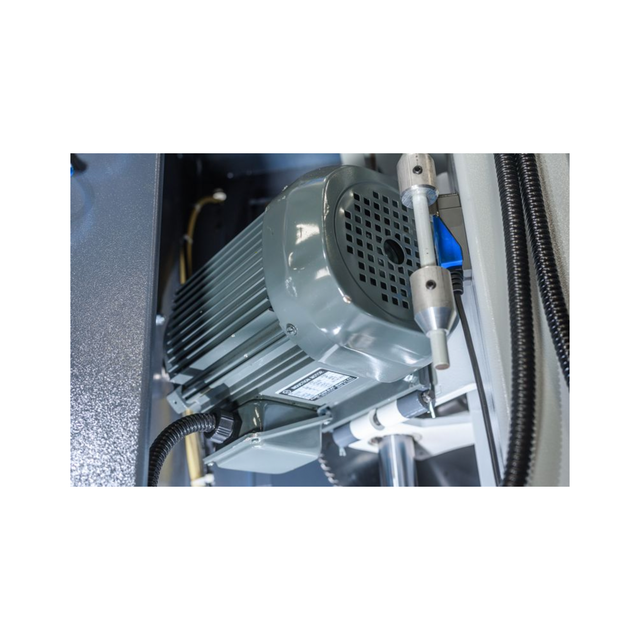

• (2) 5HP arbor motors

• Linear guide bearing for repeatable precision

• 7” stack height

• 5-1/4” x 5-1/4” cut depth

• Easy blade adjusts for blade wear compensation

• Quickly adjustable stroke setting

• (2) 14” carbide tipped saw blades included

• (4) Vertical clamps for premium part hold

• Net weight: 908 lbs.

• Gross weight: 1102 lbs.

• Machine dimensions: (L) 39”" x (W) 36" x (H) 63-1/2"

• Packing dimensions: (L) 48” x (W) 44" x (H) 69"

• (1) Tool box

• Warranty is one-year parts

• All machines are tested stateside prior to shipment providing trouble free start up.
FEATURES

• * Inclusive with dual linear guideways and dual support roller bearings

• Specially designed for cutting tall work pieces

• Saw blades feed vertically. Maximum height of. cutting is 7''.

• Two staggered saw blades are perfectly positioned at 45Â° vertically to reduce work piece waste to a minimum.

• Saw blades move vertically on two precision shafts, assuring consistent cutting.

• Compensation for saw blade wear is easy to adjust.

• Saw blade height Is adjustable for saving time during cycle.
SPECS

• Main Motor Hp. = 5 hp. x 2

• Voltage/ Freq. = 230 Volt 60Hz

• Phase = 3 Phase

• Amp Requirement = 30 Amps

• Total Hp. = 10 Hp.

• Electronics = CE Approved Components

• Control Voltage = 24 Volt Control Voltage

• Min. Width = 1-1/8'' x 1-1/8''

• Max. Width = 5-1/2'' x 5-1/2''

• Max. Thickness = 7''

• Arbor Rpm = 3100 Rpm

• Blade Size = 14'' Tungsten Carbide Tipped

• No. of Teeth = 120 Tooth

• Tooth Spacing = 3/8''

• Blade Kerf = .118 In.

• Cleaning System = Detail Blow Off Nozzle

• Vertical Travel = 7''

• Dust Collection = (2) 4'' @ 900 CFM

• Arbor Diameter = 1''<

• Cycles/Minute = 5 Cycles Per Minute

• Hold Down Style = Dual Pneumatic Clamps

• Recommended CFM = 1/4'' Line @ 90 PSI

• Waste Discharge = Side Chute

• Emergency Stop = (1) Push Button (2) Bars

• Safety Feature = Safety Interlock Switch

• Guarding = High Visibility Guarding

• Operation Style = Dual Push Button

• Fence Type = Adjustable Fence

• Fence Dims. = 7-1/4'' x 12-1/2''

• Frame Const. = 3/16'' Steel Construction

• Worktable Dims. = 16-1/4'' x 37-1/2''

• Table Const. = Steel

• Measure Meth. = Lineal Scale on Fence

• Decible Rating = 70 dB

• Net Weight = 908 lbs.

• Gross Weight = 1102 lbs.

• Machine Dims. = 39-1/2'' x 36'' x 63-1/2''

• Packaging Dims = 48'' x 44'' x 69''

ITEM ID: 1278
