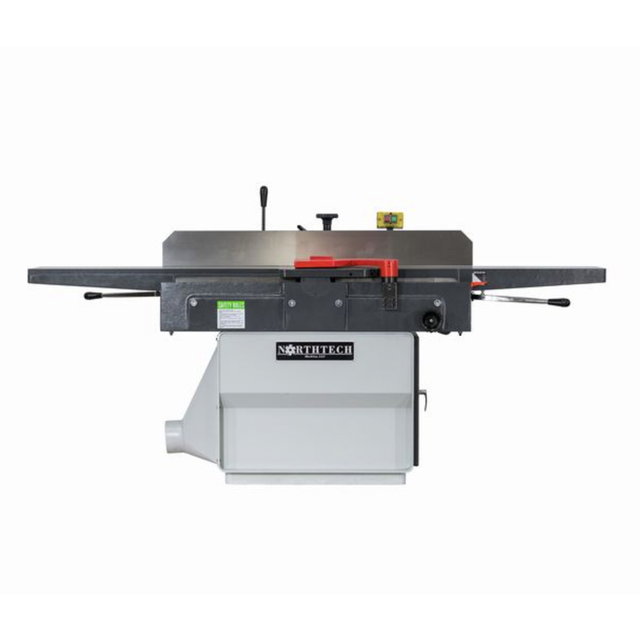

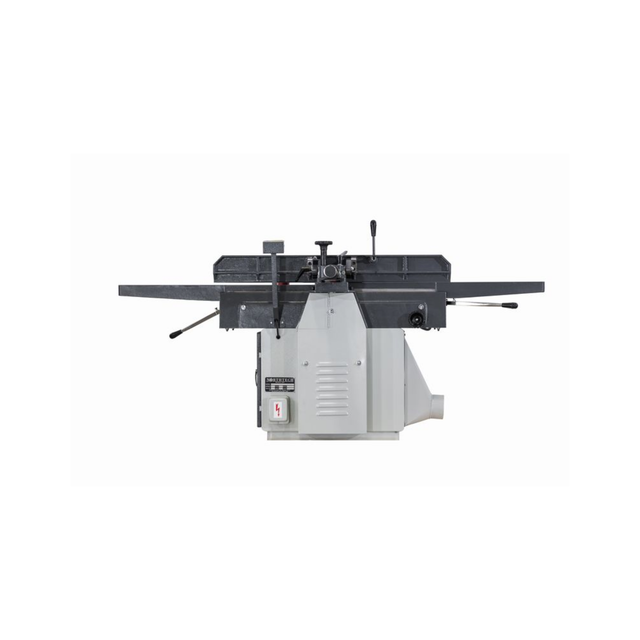

NorthTech Jointer NT 1284HC-532
NorthTech Jointer NT 1284HC-532 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours, weekend orders are processed the next business day. Products that are backlog or custom order will be processed as soon as possible. If you have shipping questions, contact us at 800-598-6344.
Description
Description
MODEL Jointer NT 1284HC-532
-
FEATURES
• Available machine width of 12" or 16".
• Bed way length is standard at 84" on 12" model / 96" on 16" model.
• Helical cutterhead is configured with 6 rows of 30 x 12 x 1.5 carbide 2 sided insert knives.
• Dynamically balanced cutterheads are precision fitted with class 5 NSK sealed bearings.
• Parallelogram designed bed ways provides quick and accurate adjustment of infeed/outfeed beds vs. older style jack screw and hand wheel system via cam and lever action. * Parallelogram design also facilitates the infeed table being in close proximity to the cutterhead, ensuring vibration free cutting and excellent chip removal characteristics via the cam and lever handle.
• Machine bed ways are heat treated, precision ground and highly polished for incredible end to end and side to fence tolerances.
• Center mount fence system employs a rack and pinion movement for quick and accurate positioning.
• Noise abatement fingers are precision ground on table edges surrounding cutterheads improving sound decibel levels by over 25%.

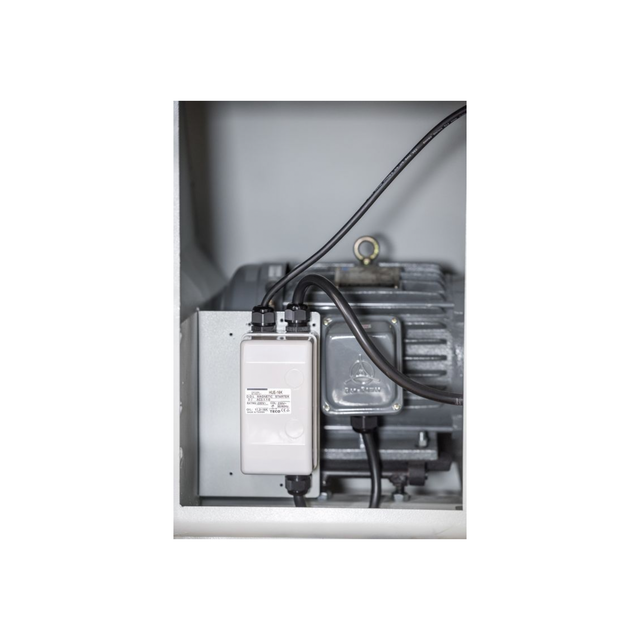

• Motors are started and protected via magnetic controls with overloads / on-off control is remote and located above the infeed table.
• Oversized guard is standard providing optimum operator protection (spring loaded and adjustable tensioning).
• Weight on 12" model . . . 706 lbs.
• Weight on 16" model . . . 956 lbs.
• Warranty is one year parts All machines are tested stateside prior to shipment providing trouble free start up.
-
SPECS
• Voltage/ Freq. = 230 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 14 Amps
• Total Hp. = 5 Hp.
• Electronics = UL Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 220V Control Voltage
• Pass-Line = 32''
• Min. Length = 12'' With Push Block
• Min. Width = 3'' With Push Block
• Max. Width = 12''
• Min. Thickness =
• Cutter Head RPM = 5000 RPM
• Head Type = Dynamically Balanced Helical Head
• Cutter Head Dim = 4'' x 12''
• Cut Head Matl. = Alloy Steel
• Rows of Cutters = 6 Rows
• No. of Inserts = 42 Inserts
• Insert Size = 30 x 12 x 1.5 mm
• Dust Collection = (1) 5'' @ 681 CFM
• Guarding = Swivel Guard Fence
• Dims. = 5-3/8'' x 47''<
• Frame Const. = Cast Construction
• Infeed Table = 41-1/4''
• Outfeed Table = 41-1/4''
• Decibel Rating = 69 dB
• Net Weight = 706 Lbs.
• Gross Weight = 888 Lbs.
• Machine Dims. = 85'' x 38'' x 44''
• Packaging Dims = 90'' x 27'' x 41''
Item ID: 3498
