SPECS

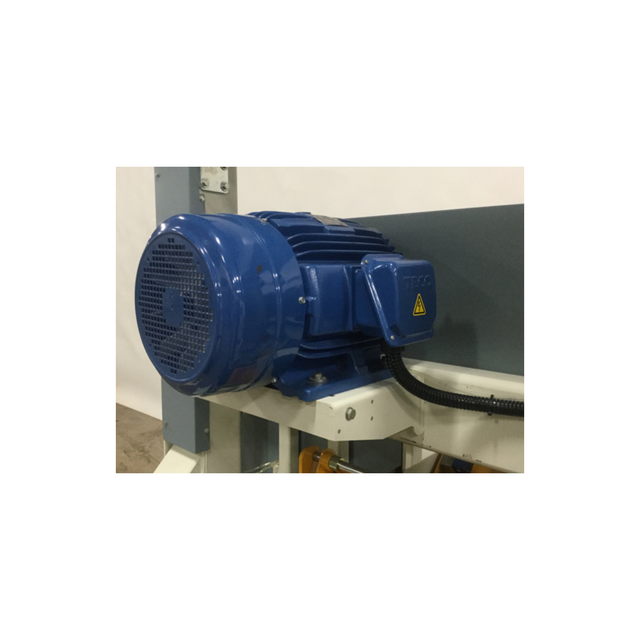

- Main Motor Hp. = 40 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 65 Amps
- Feed Hp. = 3 Hp.
- Feed System = 15-1/4'' x 215-3/8'' Belt
- Drive System = Motor Mated to Gear Box
- Feed Speed = 0 - 120 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 1 Hp.
- Elevation Style = CHPC-535 Elevation Control
- Elevation Sys. = (2) Post Jack Screw
- Total Hp. = 45 Hp.
- Electronics = UL Approved Components
- Control Voltage = 220V Control Voltage
- Min. Length = Individual Feed 20''
- Min. Width = 2"
- Max. Width = 17-1/2''
- Min. Thickness = 1/8''
- Max. Thickness = 10''
- Blade Size = 2'' x 208''
- No. of Teeth = 208
- Tooth Spacing = 1''
- Blade Kerf = .086 In.
- Blade Speed = 4700 - 6750 FPM
- Tracking Style = Manual Adjustment
- Tension Style = Pneumatic / Hydraulic Tension
- Vertical Travel = 1/8'' - 10''
- Dust Collection = (2) 6'' @ 1962 CFM
- Dust Port Out = (2) 6'' Ports
- Digital Display = Elevation
- Conveyor = 15-1/4'' x 215-3/8''
- Hold Down Style = Pneumatic / Gravity
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 1000 CFM @ Extraction Point
- Emergency Stop = Push Button
- Rear E Stop = Push Button
- Guarding = Full Cabinet Enclosure
- Oiler = Blade Oil Mister
- Tiltable = 30 Degree Tilt
- Blade Guide = Steel Blade Guides
- Wheel Dims. = 1-3/4'' x 33-1/2''
- Wheel Construction = Steel Construction
- Frame Const. = 1/4'' Steel Construction
- Worktable Dims. = 15'' x 109''
- Table Const. = Steel
- Return Conveyor = 7-1/4'' x 218'' Belt
- Decible Rating = 80 dB
- Net Weight = 3674
- Gross Weight = 4090 Lbs.
- Machine Dims. = 117'' x 100'' x 88''
- Packaging Dims = 120'' x 102'' x 90''
ITEM ID: 1178
