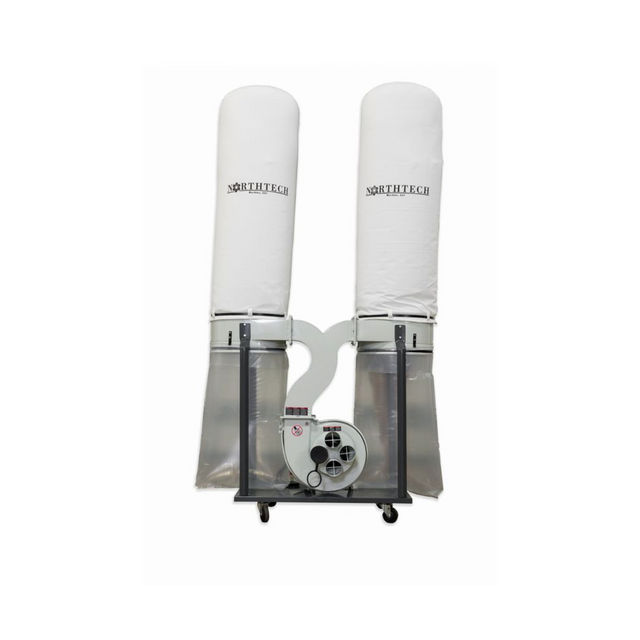

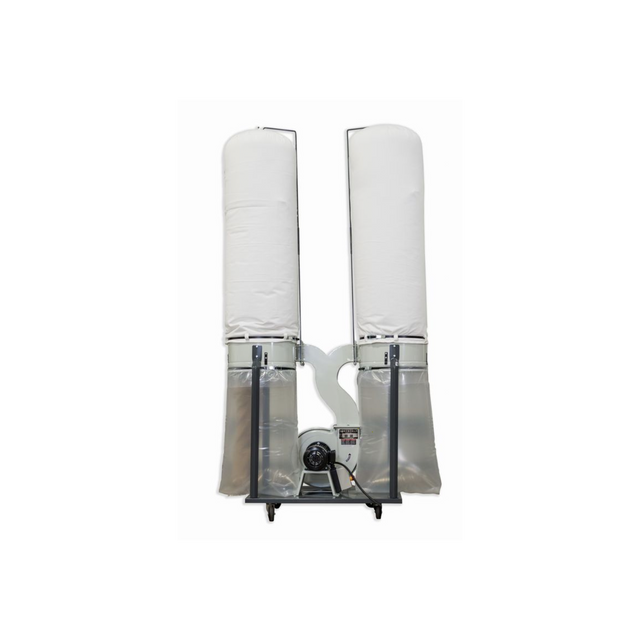

MODEL NT DC30-312
1,300 CFM Dust Collector
FEATURES

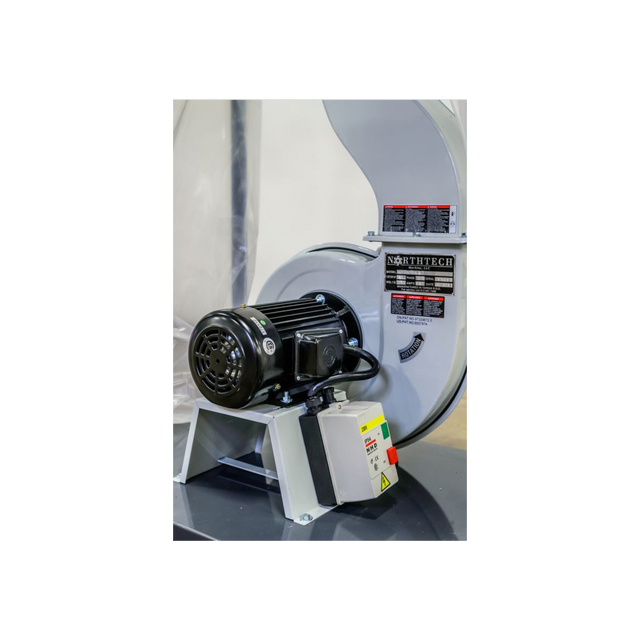

- 3HP motor, 230V/460V (1 Phase Available)
- Two top filter polyester bags, 5 micron
- Two lower collection plastic bag
- 3'' x 13-1/2" impeller
- 3100 CFM
- Dust Exhaust:
- 8" main; (4) 4" ports
- Gross weight: 250lbs
SPECS
- Main Motor Hp. = 3 hp.
- Direct Drive = Direct Drive
- Machine Hp. = 3 hp.
- Voltage/ Freq. = 220 Volt 60 Hz.
- Phase = 1 Phase
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 220V Control Voltage
- Dust Port In = (1) 8'' or (4) 4''
- Dust Port Out = 7'' x 7'' Box
- Free Air CFM = 3100 CFM
- Impeller = 3'' x 13-1/2'' Steel Impeller
- Frame Const. = 1/16'' Steel Construction
- Mobile Unit = (4) Caster Cart
- Upper Bags = 31'' x 59''
- Lower Bags = 31'' x 40''
- Decibel Rating = 93 dB
- Net Weight = 187 Lbs.
- Gross Weight = 250 Lbs.
- Machine Dims. = 60'' x 29'' x 144''
- Packaging Dims = 40'' x 48'' x 29''
Item ID: 3515
