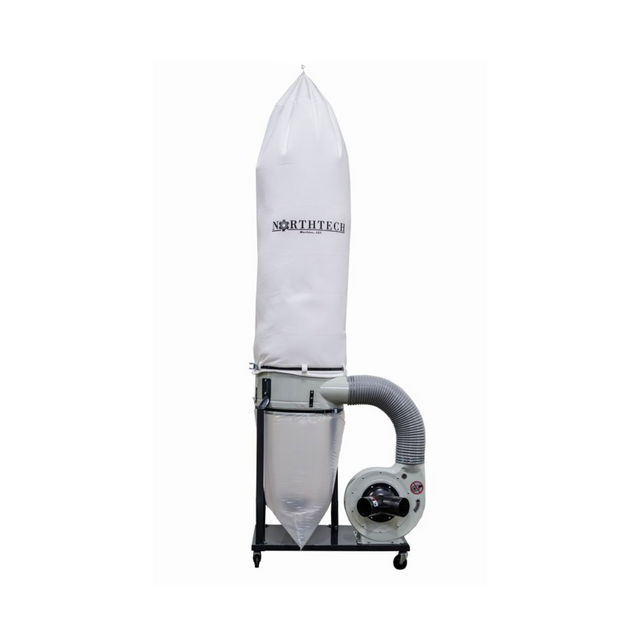

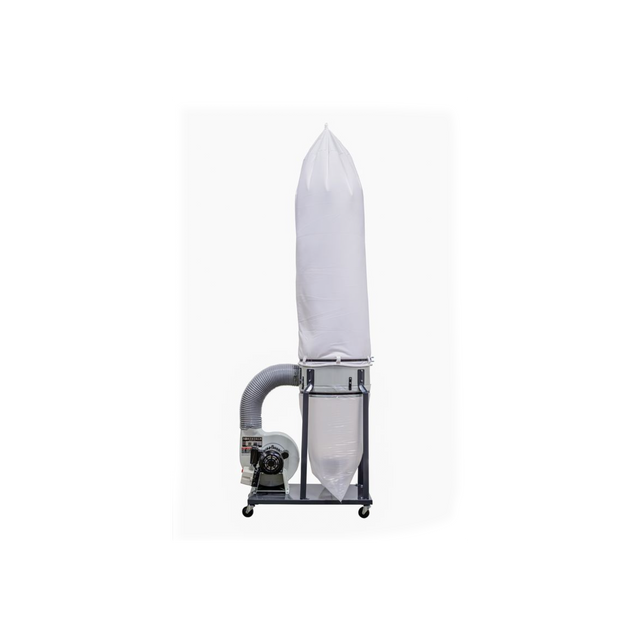

MODEL NT DC20-234
1,300 CFM Dust Collector
FEATURES
- Motor: 2HP, 3PH (1PH Available)
- Impeller Diameter: 3'' x 11-1/2" (steel)
- Free Air CFM: 1,300
- Air speed: 7,200 FPM
- Dust Inlet: (2) 4"
- Filter bags: (1) 31'' x 59''
- Collector bag: (1) 31'' x 34''
- Net weight: 102 lbs.
- Gross weight: 110 lbs.
- Machine dimensions: (L) 37" x (W) 26" x (H) 104"
- Packing dimensions: (L) 34" x (W) 24" x (H) 22"
- Warranty is one year parts
- All machines are tested stateside prior to shipment providing trouble free start up.
SPECS
- Main Motor Hp. = 2 hp.
- Direct Drive = Direct Drive
- Machine Hp. = 2 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Electronics = CE Approved Components
- Control Voltage = 460 Volt
- Dust Port In = (1) 6'' or (2) 4''
- Dust Port Out = (1) 6''
- Free Air CFM = 1300 CFM
- Impeller = 3'' x 11-1/2'' Steel Impeller
- Frame Const. = 1/16'' Steel Construction
- Upper Bags = 31'' x 59''
- Lower Bags = 31'' x 34''
- Decibel Rating = 86 dB
- Net Weight = 102 Lbs.
- Gross Weight = 110 Lbs.
- Machine Dims. = 37'' x 26'' x 104''
- Packaging Dims = 34'' x 24'' x 22''
Item ID: 3513
