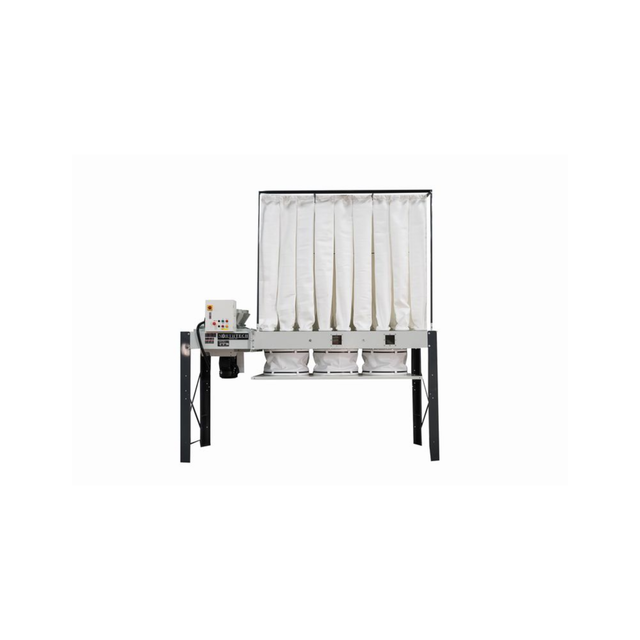

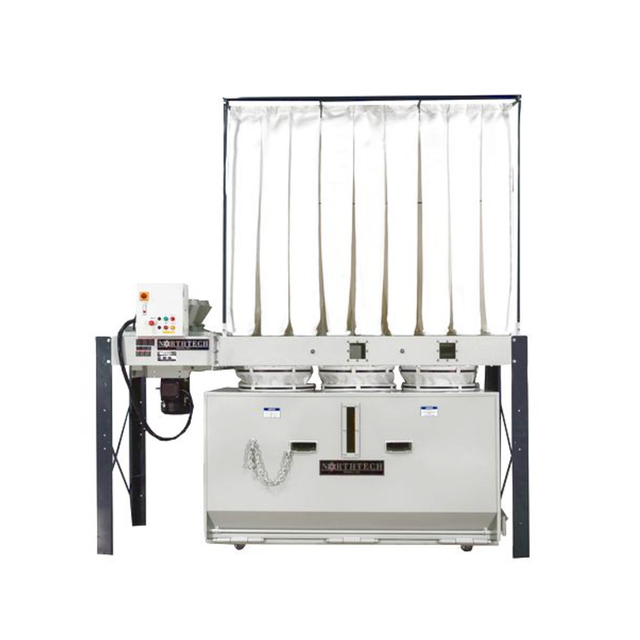

MODEL NT DC007 Soft Sound Dust Collector
FEATURES

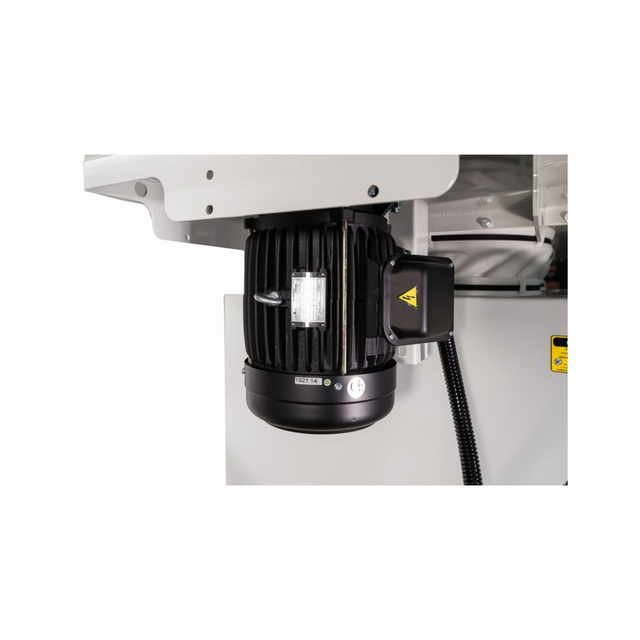

- Direct Drive Blower, 10HP 3PH, 60HZ, 230/460V, 26 / 13AMP
- Low 1740 RPM fan speed for soft sound operations
- Maximum Air Velocity: 103fps/6144fpm
- Maximum Static Pressure: 7.06”
- 15” Diameter flanged inlet
- 21” Curved impeller fan
- (1) 15” to (8) 5” multi port fitting included
- Control box push button magnetic starter included
- 95% Return-air efficiency of 2.5 micron particles
- (36) Upper Filter bags, polyester, 1 micron (W) 6” X (H) 71”
- Machine dimensions: (L) 128" x (W) 42" x (H) 137"
- Machine net / gross weight: 937 lbs. / 1027 lbs.
- Package 1: (L) 93” x (W) 43” x (H) 24” / 502 Lbs.
- Package 2: (L) 39” x (W) 46” x (H) 33” / 525 Lbs.
- Warranty is one year parts
- All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble free start up.
SPECS
- Machine Hp. = 10 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 26 Amps
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 220V Control Voltage
- Assisted Start = Wye Delta
- Operator Panel = Remote Mount
- Cleaning System = Vibratory Motor
- Dust Port In = 15'' or (8) 5" Ports
- Impeller = 6'' x 21'' 8 Fin Impeller
- Upper Bags = (36) 6'' x 71'' Bags
- Lower Bags = (3) 24'' x 58'' Bags
- Decibel Rating = 73 Db
- Net Weight = 937 Lbs.
- Gross Weight = 1027 lbs.
- Machine Dims. = 128'' x 42'' x 137''
- Packaging Dims = 2 Skids
Item ID: 4560
