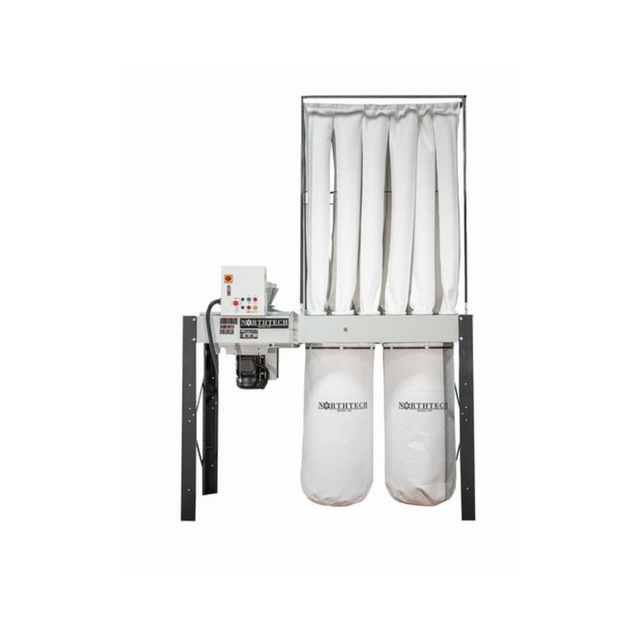

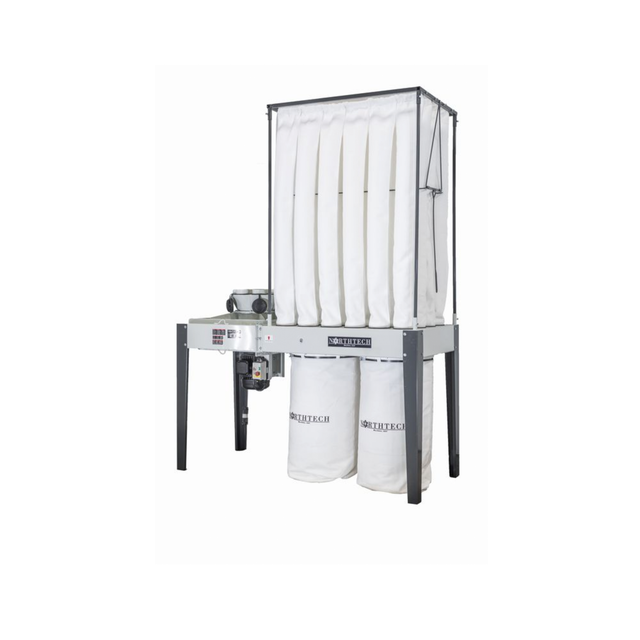

NT DC006-732 5000 CFM Indoor Dust Collector
FEATURES
- 7.5HP 3PH, 60HZ, 230/460V, 22 / 11AMP
- Low 1720RPM fan speed for soft sound operations
- Maximum static pressure: 6.2”
- 13” Diameter inlet
- 16” Curved impeller fan
- 4994 Actual CFM

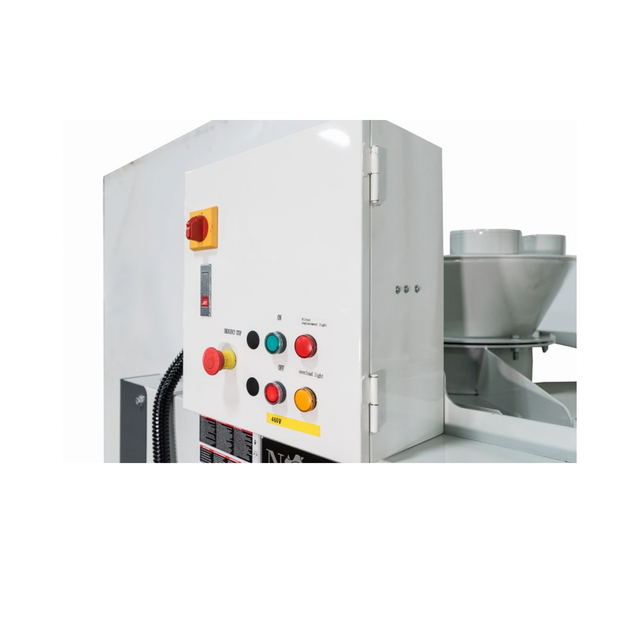

- Push button magnetic starter
- Mushroom style stop button
- (24) Upper Filter bags, polyester, 1 micron (W) 5.9” X (H) 71”
- (2) Lower Filter bags, polyester, 1 micron (W) 24” X (H) 51”
- Available with Optional Hopper
- Available with Optional Vibratory Bag Cleaning
- Machine dimensions: (L) 93" x (W) 39" x (H) 127''
- Warranty is one year parts All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble free start up.
Packing Dimensions
- Skid 1: 63'' x 42'' x 21'' 380 Lbs.
- Skid 2: 39'' x 45'' x 32'' 425 Lbs.
SPECS
- Main Motor Hp. = 7.5 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 22 Amps
- Electronics = UL Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 220V Control Voltage
- Cleaning System = Shaker Frame
- Dust Port In = (1) 13'' or (6) 5''
- Dust Port Out = (24) 6'' Top (2) 24'' x 51''
- Impeller = 5-1/2'' x 20'' Impeller
- Frame Const. = Steel Construction
- Upper Bags = (24) 6'' x 71''
- Lower Bags = (2) 24'' x 51''
- Decibel Rating = 68 dB
- Net Weight = 700 Lbs
- Gross Weight = 815 Lbs.
- Machine Dims. = 93'' x 39'' x 127''
- Packaging Dims = 2 Skids
Item ID: 3511
