NorthTech | SKU:
NORTHTECH-NT-2ST-20XL-RAL-2032
NorthTech Dust Collector NT 2ST-20XL-RAL-2032
Shipping calculated at checkout.
NorthTech Dust Collector NT 2ST-20XL-RAL-2032
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
NorthTech Dust Collector NT 2ST-20XL-RAL-2032
$0.00
Unit price
/
Unavailable
Description
Description

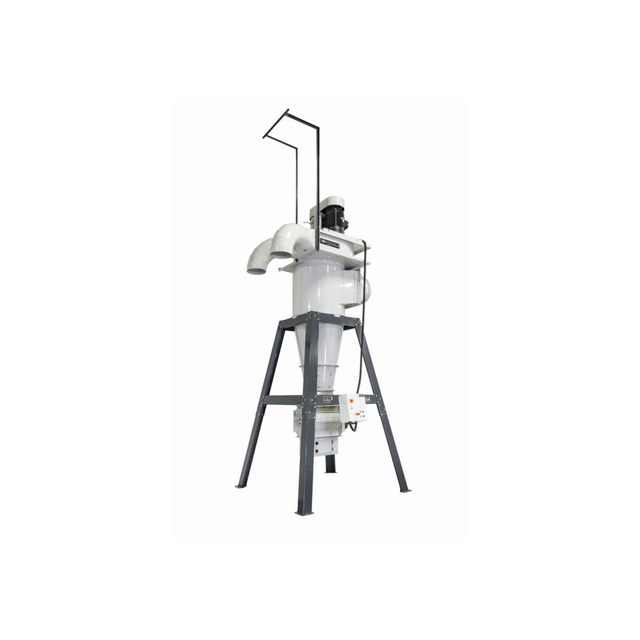

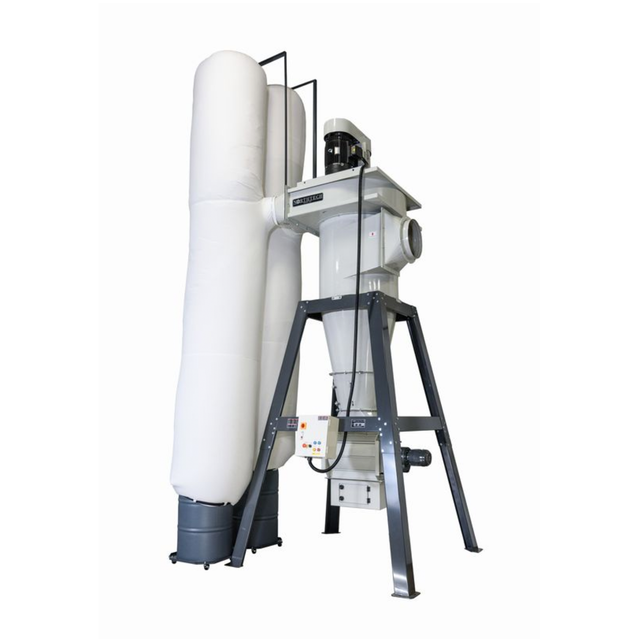

MODEL NT 2ST-20XL-RAL-2032
FEATURES
- 2 Stage Filtering Industrial Series Dust Collector

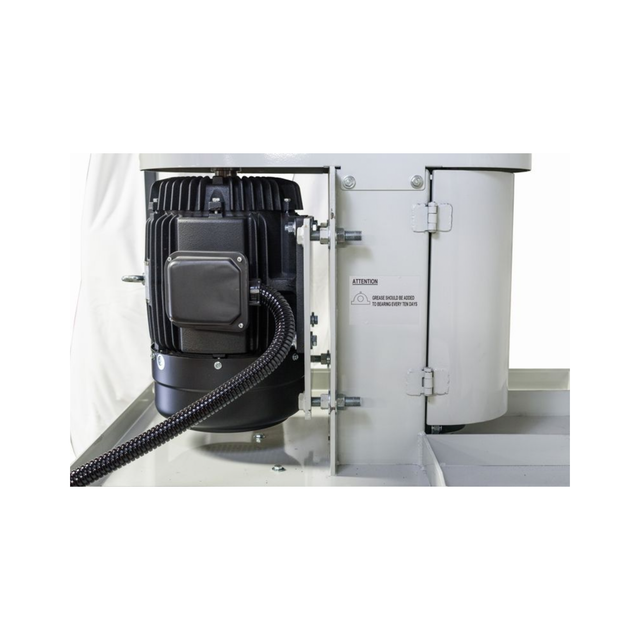

- 20 HP. motor with magnetic starter
- 8,200 CFM at 4.9” Static pressure 5730
- Dust port inlet: (1) 16"
- 26" fan
- Air velocity: 6,000 FPM
- (2) 12 x 31-1/2'' x 224-1/2'' 5-micron filter bags
- Dust port outlet: (2) 12"
- Cyclone system provides high efficiency removal of dust particles
- (2) 55 gallon drum dollies (Drums not Included)
- 1 HP Rotary Air Lock (Included)
- 18'5" Tall with 82" base
- Clearance below RAL: 33-1/4"
- Net weight: 2,180 lbs.
- Gross weight: Collector 1,950 lbs. / Air Lock 420 lbs.
- Machine dimensions: (L) 102" x (W) 82 " x (H) 222"
- Packing dimensions: (L) 91" x (W) 48" x (H) 76" / (L) 50" x (W) 24" x (H) 25"
- Warranty is one year parts
- All machines are tested stateside prior to shipment providing trouble free start up.
SPECS
- Main Motor Hp. = 20 hp.
- Machine Hp. = 21 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 50 Amps
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 220V Control Voltage
- Assisted Start = Wye Delta
- Dust Port In = 16'' Inlet
- Dust Port Out = (2) 12'' Top Outlets
- Free Air CFM = 8200 CFM
- R.A.L. Hp. = 1 Hp. Direct Drive
- R.A.L. Size = 10'' x 24''
- Impeller = 26'' Steel Impeller
- Frame Const. = 1/8'' Steel Construction
- Upper Bags = 12'' x 31-1/2'' x 224-1/2''
- Cyclone Diam. = 35'' I.D.
- No. of Barrels = 2 Barrels (Not Included)
- No. of Dollies = 2 Dollies
- Decibel Rating = 90 dB
- Net Weight = 2180 Lbs. W/ RAL
- Gross Weight = 2370 Lbs.
- Machine Dims. = 102'' x 82'' x 222''
- Packaging Dims = 91'' x 48'' x 76''
Item ID: 1175
