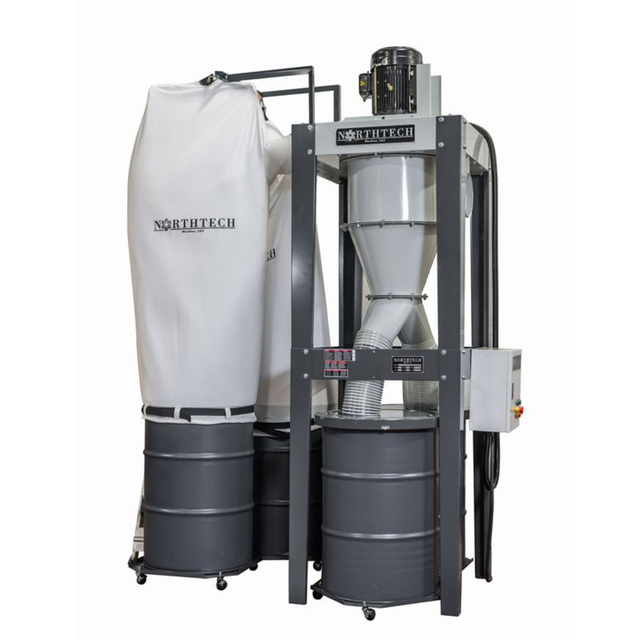

MODEL NT 2ST-10XL-1034
FEATURES
- 2 Stage filtration

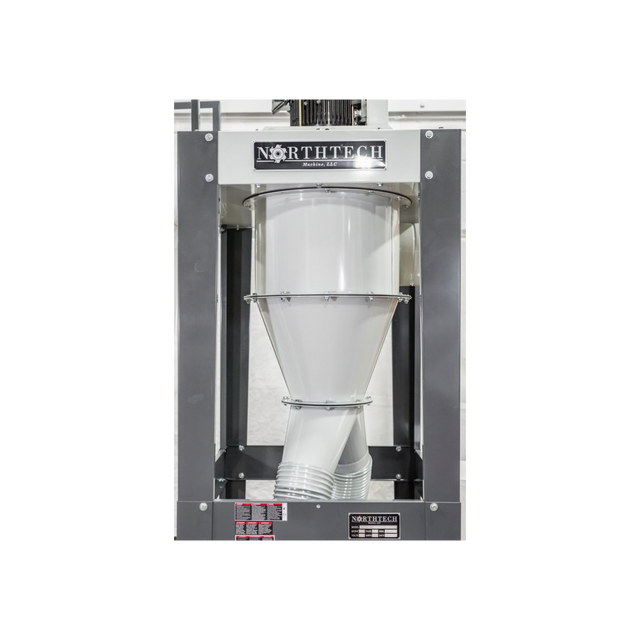

- Large diameter cyclone
- 10HP, 3PH
- Air delivery: 5,400 CFM
- Air speed: 9,600 FPM
- Centralized controls inside dust proof enclosure
- (2) 24” x 69” Filter bags
- (4) 55 gallon drum dollies included
- (2) 55 gallon drum lids included
- (1) Tool box
- Machine weight: 668 lbs.
- Machine dimensions: (L) 56" x (W) 45" x (H) 107"
- Warranty is one year parts
- All machines are tested stateside prior to shipment providing trouble free start up.
SPECS

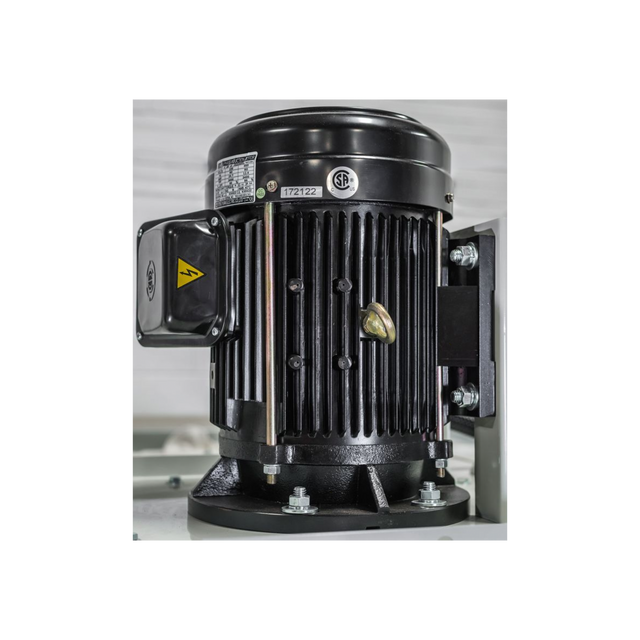

- Main Motor Hp. = 10 hp.
- Direct Drive = Direct Drive
- Machine Hp. = 10 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement =12.35 Amps
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 220V Control Voltage
- Assisted Start = Wye Delta
- Dust Port In = (1) 9'' Inlet
- Dust Port Out = (2) 8'' Top (2) 7'' Bottom
- Free Air CFM = 5400 CFM
- Impeller = 17'' Steel Impeller
- Frame Const. = 1/8'' Steel Construction
- Upper Bags = 8'' x 24'' x 69''
- Cyclone Diam. = 20'' I.D.
- No. of Barrels = 4 Barrels (Not Included)
- No. of Dollies = 4 Barrel Dollies
- Decibel Rating = 94 dB
- Net Weight = 668 Lbs.
- Gross Weight = 718 Lbs.
- Machine Dims. = 56'' x 45'' x 107''
- Packaging Dims = 72'' x 40'' x 31''
Item ID: 3519
