NorthTech  |  SKU: NORTHTECH-DC50-3-534

NorthTech Dust Collector DC50-3-534

$0.00
Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours, weekend orders are processed the next business day.  Products that are backlog or custom order will be processed as soon as possible. If you have shipping questions, contact us at 800-598-6344.

Description

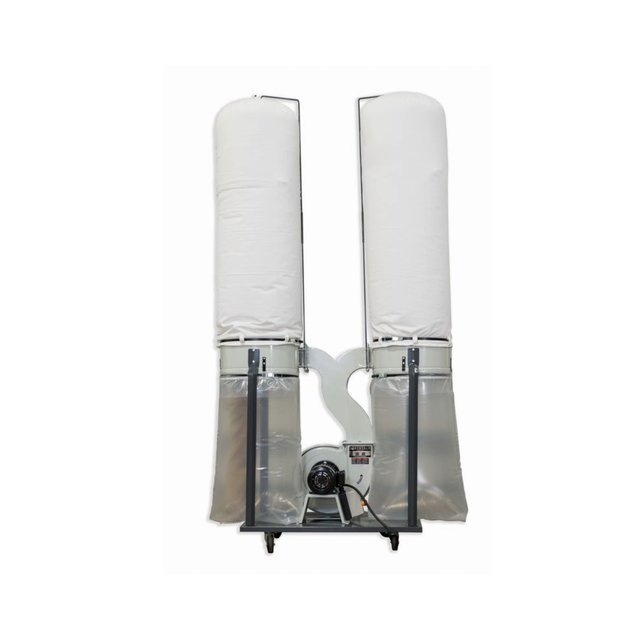

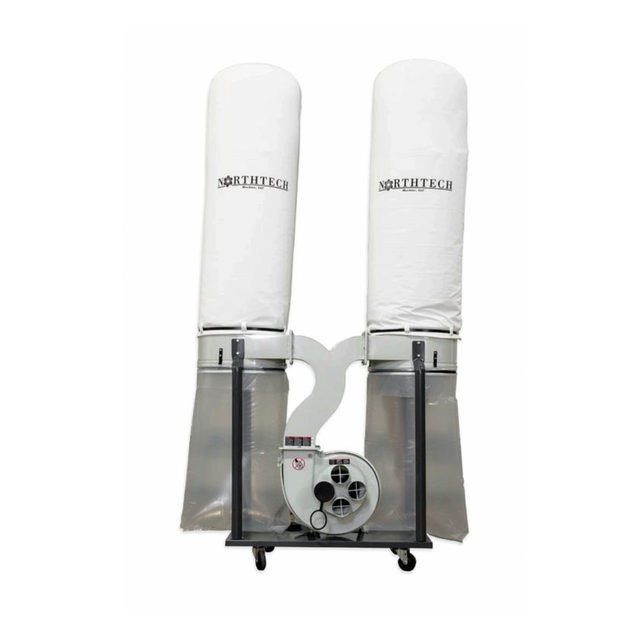

MODEL NT DC50-3

3500 CFM Dust Collector

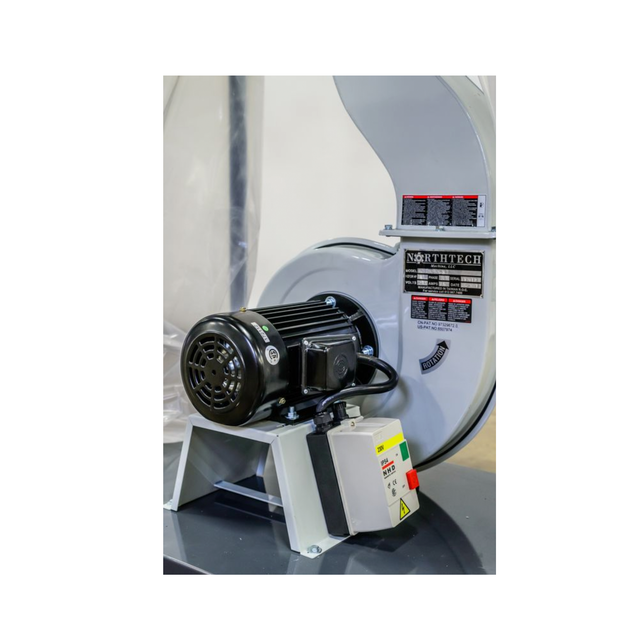

  • Motor: 5HP, 3PH (1PH Available)
  • Impeller Diameter: 3-1/2'' x 13-1/2" (steel)
  • Free Air CFM: 3500
  • Dust Inlet: (4) 4" or (1) 8''Filter bags: (2) 31'' x 59''
  • Collector bag: (2) 31'' x 40''
  • Net weight: 200 lbs.
  • Gross weight: 250 lbs.
  • Machine dimensions: (L) 60" x (W) 30 " x (H) 113 "
  • Packing dimensions: (L) 40" x (W) 48" x (H) 29 "
  • Warranty is one year parts
  • All machines are tested stateside prior to shipment providing trouble free start up.

SPECS

  • Main Motor Hp. = 5 hp.
  • Direct Drive = Direct Drive
  • Machine Hp. = 5 hp.
  • Voltage/ Freq. = 230 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 11.8 Amp
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 220V Control Voltage
  • Dust Port In = (1) 8'' or (4) 4''
  • Dust Port Out = 7'' x 7'' Box
  • Free Air CFM = 3500 CFM
  • Impeller = 3-1/2'' x 13-1/2'' Steel Impel
  • Frame Const. = 1/16'' Steel Construction
  • Upper Bags = 31'' x 59''
  • Lower Bags = 31'' x 40''
  • Decible Rating = 94 dB
  • Net Weight = 200 Lbs.
  • Gross Weight = 250 Lbs.
  • Machine Dims. = 60'' x 30'' x 113''
  • Packaging Dims = 40'' x 48'' x 29''

Item ID: 3516
