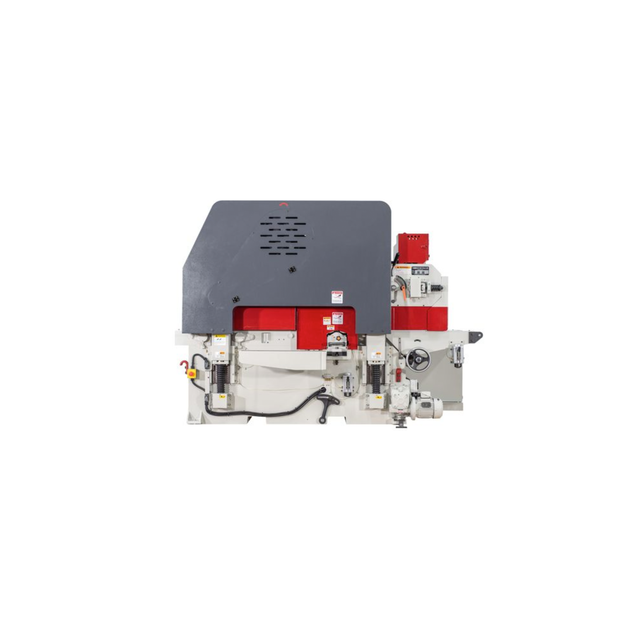

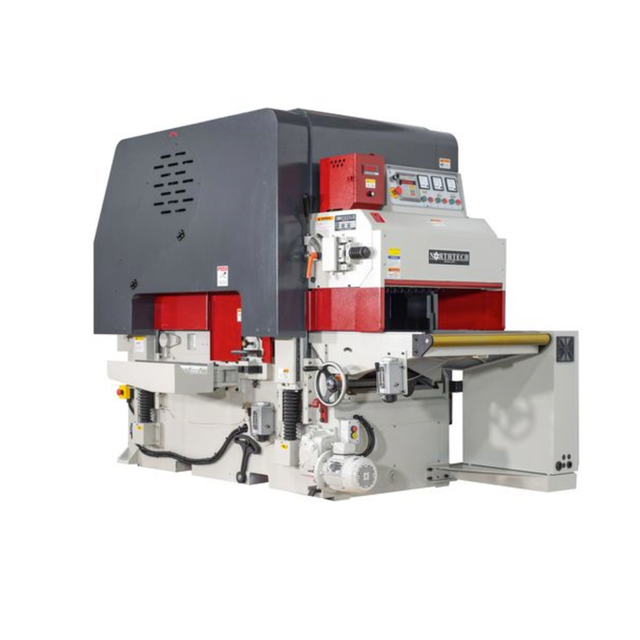

NorthTech Double Surface Planer NT 760XL

MODEL Double Surface Planer NT 760XL

SPECS

• Top Head Hp. = 40 Hp.
• Bottom Head Hp. = 30 Hp.
• Voltage/ Freq. = 230 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 190 Amps
• Feed Hp. = 5 Hp.
• Feed System = Carpet Feed / Powered Rollers
• Drive System = Gear Box Chain Drive
• Feed Speed = 25 - 70 FPM
• Variable Speed = Inverter Controlled
• Elevation Hp. = 1 Hp.
• Elevation Style = GTM-525-A Controller
• Elevation Sys. = (4) Post Jack Screw
• Total Hp. = 76 Hp.
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 110 Volt
• Programmable = Elevation
• Operator Panel = Fixed
• Pass-Line = 32''
• Min. Length = 12-1/2''
• Min. Width = 2"
• Max. Width = 29-15/16''
• Min. Thickness = .396''
• Max. Thickness = 8''
• Cutter Head RPM = 5750 Rpm
• Head Type = Dynamically Balanced Helical Head
• Cutter Head Dim = 5'' x 30''
• Cut Head Matl. = Alloy Steel
• Rows of Cutters = 6 Rows
• No. of Inserts = 114 Top 114 Bottom
• Insert Size = 30 x 12 x 2.5 mm
• No. of Heads = 2
• Dust Collection = (2) 8'' 3488 Total CFM
• Digital Display = Elevation and Feed Speed
• Powered Rollers = (2) Top (2) Bottom
• Idle Rollers = (1) Top (1) Bottom
• Pressure Shoes = (15) 2'' Chip Breakers
• Hold Down Style = Chip Breakers/ Pressure Plate
• No. of Spikes = 1350 Spikes
• Rear E Stop = Push Button
• Guarding = Full Enclosure
• Oiler = (1) Auto (1) Manual Oiler
• Low Oil Warning = Low Oil Shut Off / Warning
• Frame Const. = Cast Construction
• Slip Clutch = Clutch on Chain Drive
• Decible Rating = 77 dB
• Net Weight = 7822 Lbs.
• Gross Weight = 8352 Lbs.
• Machine Dims. = 105'' x 59'' x 75''
• Packaging Dims = 110'' x 58'' x 71

Item ID: 4445
