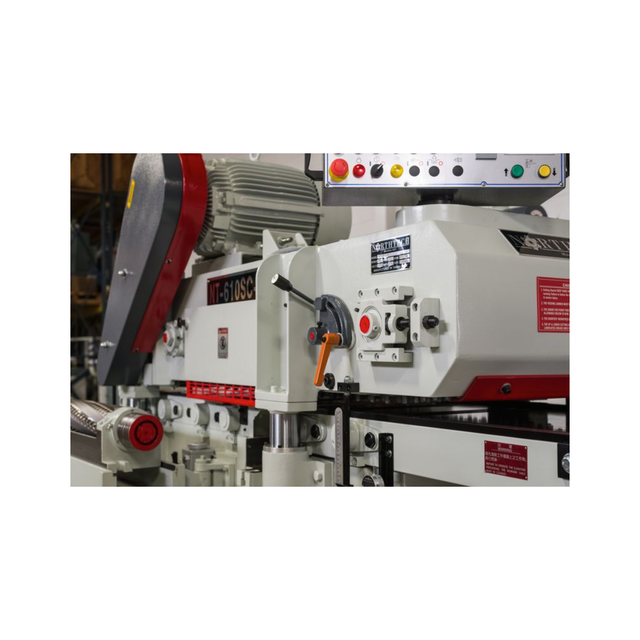

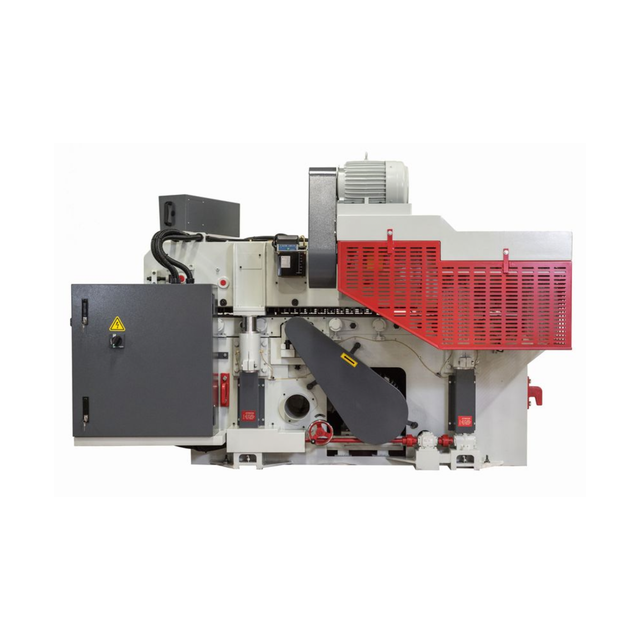

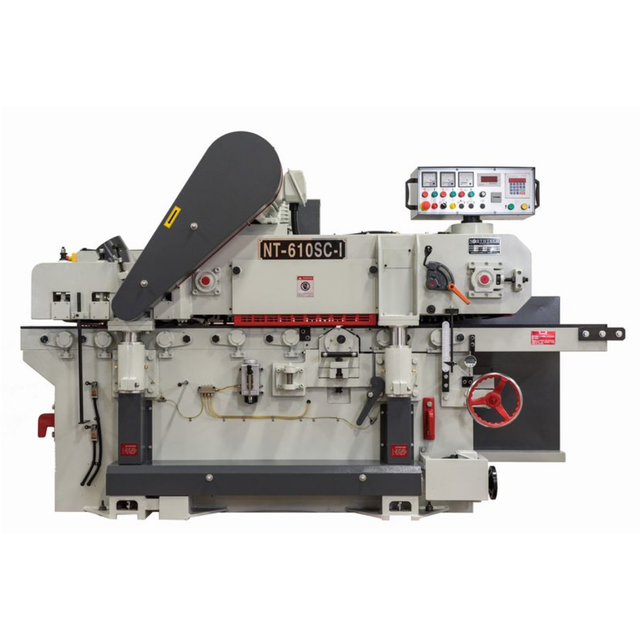

NorthTech Double Surface Planer NT 610SC-I-40302

$0.00
Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours, weekend orders are processed the next business day.  Products that are backlog or custom order will be processed as soon as possible. If you have shipping questions, contact us at 800-598-6344.

Description

MODEL Double Surface Planer NT 610SC-I-40302

Double Surfacer High Speed Series  40 + 30 + 7.5HP VFD

  • FEATURES

    • Dual (6) Row Helical Cutterhead with 30 x 12 x 2.5mm inserts

    • Patented 4 column lifting system

    • Carpet feeding spike system

    • Cardan shaft drive system

    • 100 FPM maximum feed speed

    • Chrome bed plate

    • Amperage requirement at 230 / 460: 247 / 124

    • (2) 6” dust ports

    • Dust collection requirements: 1,000 CFM @ points of extraction

    • Includes operator’s manual and parts book

    • Machine dimensions: 108” L x 67” W x 73” H

    • Machine gross / net weight: 9,700 / 9,259 lbs

    • One year parts warranty

    • All machines are tested stateside prior to shipment providing trouble-free start up.

  • SPECS

    • Top Head Hp. = 40 Hp.

    • Bottom Head Hp. = 30 Hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 247 Amps

    • Feed Hp. = 5 Hp.

    • Feed System = Carpet Feed / Powered Rollers

    • Drive System = Cardan Shaft Drive System

    • Feed Speed = 30 - 90 FPM

    • Variable Speed = 7.5 Hp. VFD

    • Elevation Hp. = 1 Hp.

    • Elevation Style = DP-626S Elevation Control

    • Elevation Sys. = (4) 3-1/4'' Geared Lifting Columns

    • Total Hp. = 76 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Operator Panel = Adjustable Operator Panel

    • Min. Length = 14''

    • Min. Width = 2"

    • Max. Width = 24''

    • Min. Thickness = .315''

    • Max. Thickness = 7-3/4''

    • Cutter Head RPM = 5100 Rpm

    • Head Type = Dynamically Balanced Helical Head

    • Cutter Head Dim = 5-1/2'' x 24''

    • Cut Head Matl. = Alloy Steel

    • Rows of Cutters = 6 Rows

    • No. of Inserts = 105 Inserts

    • Insert Size = 30 x 12 x 2.5 mm

    • Dust Collection = (2) 6'' @ 1962 CFM

    • Dust Port Out = 6'' Top 6'' Bottom

    • Powered Rollers = 3 Top 3 Bottom Powered Roller

    • Idle Rollers = (4) Idle Bed Rollers

    • Hold Down Style = Chip Breakers/ Pressure Plate

    • No. of Spikes = 1500 Spikes

    • Rear E Stop = Push Button

    • Guarding = High Visibility Guarding

    • Oiler = Auto Digitally Controlled / Ma

    • Low Oil Warning = Low Oil Shut Off / Warning

    • Frame Const. = 1/2'' Steel/Cast Iron Construction

    • Chrome Bed = .004'' Chrome Plated Bed

    • Decible Rating = 80 dB

    • Net Weight = 9259 Lbs.

    • Gross Weight = 9700 Lbs.

    • Machine Dims. = 110'' x 67'' x 73''

    • Packaging Dims = 116'' x 76'' x 78''
