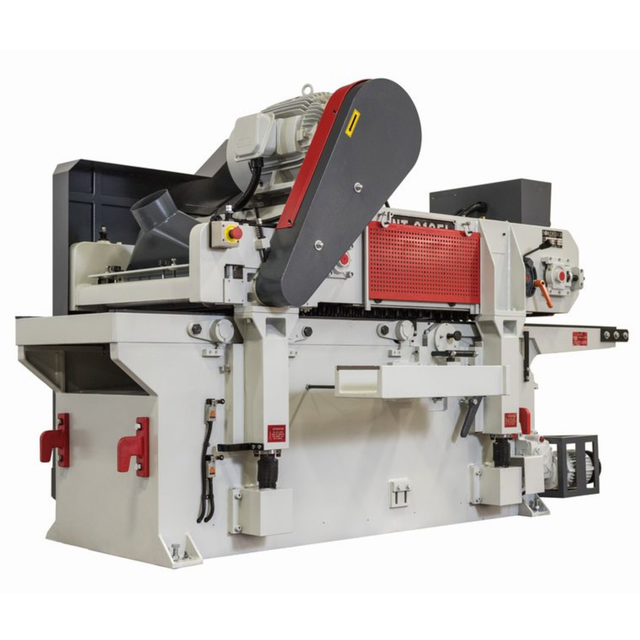

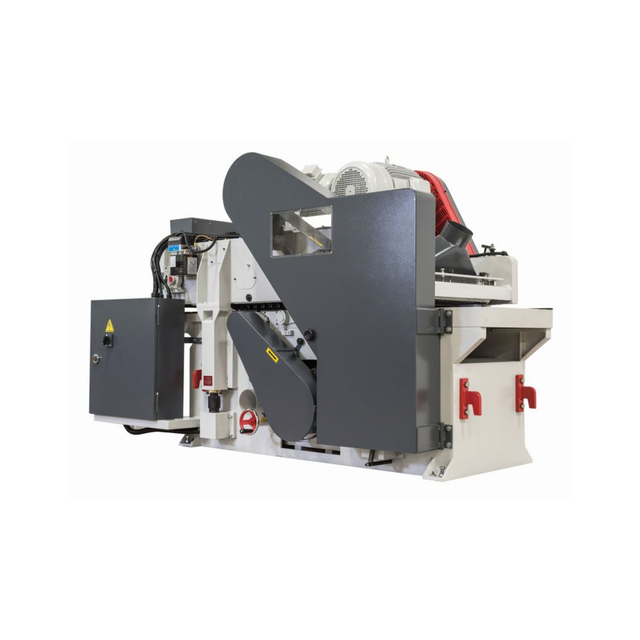

NorthTech Double Surface Planer NT 610EL Heavy Duty

Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order.  Please call 800-598-6344 for an estimate for equipment and shipping questions.

Description

MODEL Double Surface Planer NT 610EL Heavy Duty Chain Drive

  • FEATURES

    • Mechanical variable speed

    • Dual (6) Row Helical Cutterhead with 15 x 15 x 2.5 mm inserts<

    • 5100 RPM Cutterheads

    • Working thickness 3/8” - 6-1/2”

    • 15” min working length

    • Mechanical variable speed

    • Digital control panel with 3 amp readouts

    • 1100 Spike carpet feed

    • Feed speed 25-95 ft/min<

    • Chrome bed plate .01mm .0039”

    • Amperage requirement at 230 / 460: 162 / 81

    • (2) 6” dust ports

    • Automatic lubricating system with low level shut off

    • UL/CE Certified electrical components

    • Includes operator’s manual and parts book

    • Dust collection requirements: 1,000 CFM @ each point of extraction

    • Machine dimensions: 112'' x 46'' x 71''

    • Packing dimensions: 116'' x 51'' x 78''

    • Machine gross / net weight: 7,276 lbs. / 8,158 lbs

    • (1) Tool box

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start up.

  • SPECS

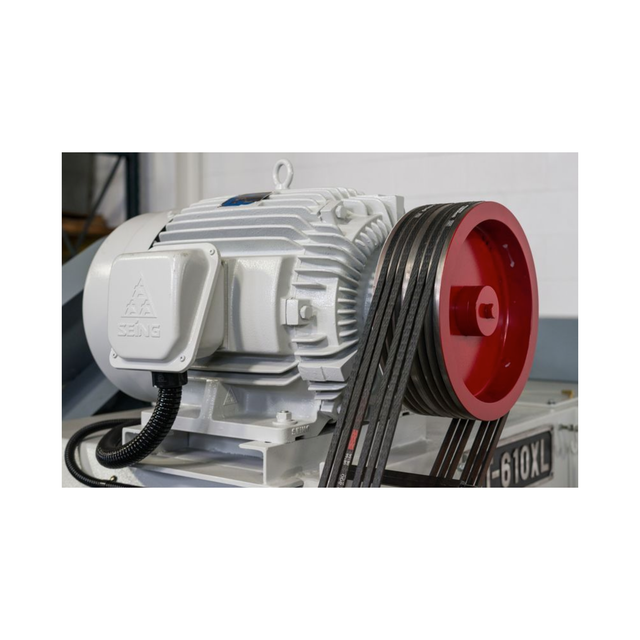

    • Top Head Hp. = 25 Hp.

    • Bottom Head Hp. = 25 Hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 162 Amps

    • Feed Hp. = 5 Hp.<

    • Feed System = Carpet Feed / Powered Rollers

    • Drive System = Chain with Slip Clutch

    • Feed Speed = 25 - 95 FPM

    • Variable Speed = CVT Adjustable Drive

    • Elevation Hp. = 1 Hp.

    • Elevation Style = DP-626S Elevation Control

    • Elevation Sys. = (4) Post Jack Screw

    • Total Hp. = 56 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Min. Length = 15''

    • Min. Width = 1.5''

    • Max. Width = 24''

    • Min. Thickness = 3/8''

    • Cutter Head RPM = 5100 Rpm

    • Head Type = Dynamically Balanced Helical Head<

    • Cutter Head Dim = 5-1/4'' x 25''

    • Cut Head Matl. = Alloy Steel

    • Rows of Cutters = 6 Rows

    • No. of Inserts = 180 Inserts

    • Insert Size = 15 x 15 x 2.5 mm

    • No. of Heads = 2<

    • Dust Collection = 981 CFM @ Extraction Point

    • Dust Port Out = (2) 6'' Ports

    • Digital Display = Elevation

    • Powered Rollers = (4) Powered Rollers

    • Idle Rollers = (1) Top (1) Bottom

    • Hold Down Style = Chip Breakers/ Pressure Plate

    • No. of Spikes = 1100 Spikes<

    • Rear E Stop = Push Button

    • Guarding = High Visibility Guarding<

    • Oiler = Auto Oiler

    • Low Oil Warning = Low Oil Shut Off / Warning

    • Frame Const. = 1/2'' Steel/Cast Iron Construction

    • Chrome Bed = .004'' Chrome Plated Bed<

    • Decible Rating = 80 dB<

    • Net Weight = 8158 Lbs.

    • Gross Weight = 7,276 Lbs.

    • Machine Dims. = 112'' x 46'' x 74''

    • Packaging Dims = 116" x 51" x 78"
