NorthTech Double Surface Planer NT 1000HCHD-XL, Smith Sawmill Service

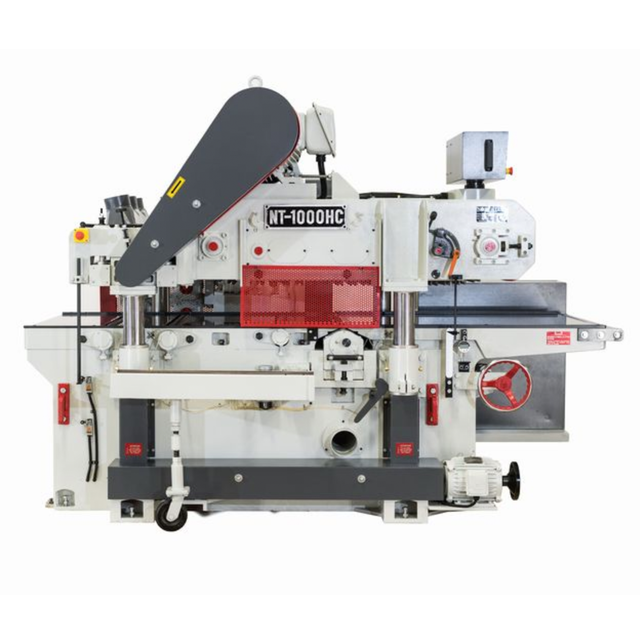

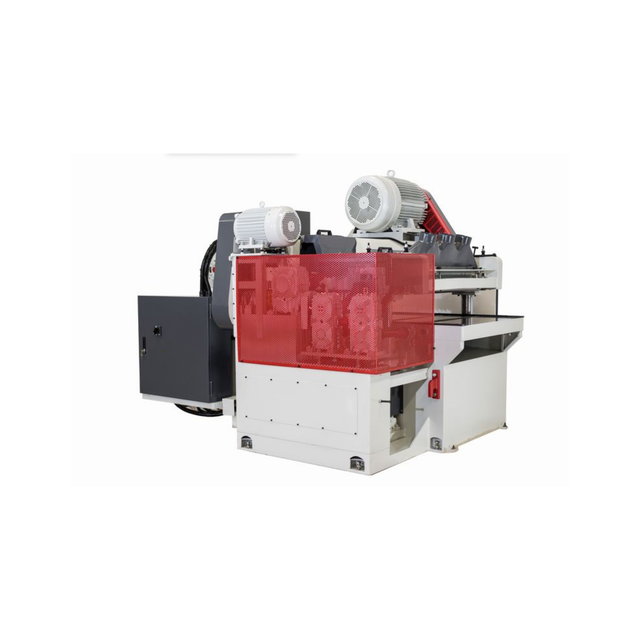

NorthTech Double Surface Planer NT 1000HCHD-XL

by NorthTech
SKU NORTHTECH-2-SURFACE PLANER-NT-1000HCHD-XL

MODEL Double Surface Planer NT 1000HCHD-XL

  • CUTTER HEADS

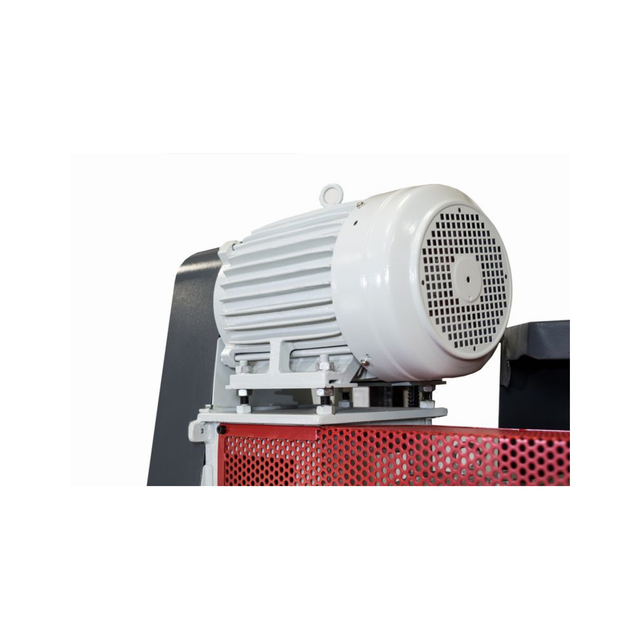

    • 75 HP Top, 60 HP Bottom

    • Dual (9) Row Helical Cutter head with 15 x 15 x 2.5mm inserts

    • 4925 RPM solid steel cutter heads dynamically balanced with Class 7 NSK bearings

  • PRODUCT DIMENSIONS

    • 15” min working length

    • 1-1/2” - 41” working width

    • 3/8” - 8” working thickness

  • FEED SYSTEM

    • Carpet feeding spike system with 1,900 hardened spikes

    • 7.5 HP motor, with 10 HP inverter controlled 15-55 FPM feed

    • 1000 Series have upgraded feed works, with top and bottom powered rollers on infeed and outfeed of top cutter head

  • FEATURES

    • 144.5 Total machine HP

    • 2HP Elevation motor

    • Inverter speed control

    • Digital control panel with 3 amp meters

    • Chrome bed plate (.014”) thick

    • (2) 6” dust ports requiring 981 CFM at points of extraction

    • Automatic lubricating system with low level shut off

    • UL/CE Certified electrical components

    • Includes operator’s manual and parts book

    • Machine gross / net weight: 15,600 lbs. 16,100 lbs.

    • Machine dimensions: 112”(L) x 88”(W) x 83”(H)

    • All machines are tested at factory prior to shipment providing trouble-free start up.

  • SPECS

    • Top Head Hp. = 75 Hp.

    • Bottom Head Hp. = 60 Hp.

    • Voltage/ Freq. = 460 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 170 Amps

    • Feed Hp. = 7.5 Hp.

    • Feed System = Carpet Feed / Powered Rollers

    • Drive System = Cardan Shaft Drive System

    • Feed Speed = 15 - 55 FPM

    • Variable Speed = Inverter Controlled

    • Elevation Hp. = 2 Hp.

    • Elevation Style = DP-626S Elevation Control

    • Elevation Sys. = (4) Post Jack Screw

    • Total Hp. = 144.5 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Operator Panel = Fixed

    • Pass-Line = 34''

    • Min. Length = 15''

    • Min. Width = 1-1/2''

    • Max. Width = 39-1/2''

    • Min. Thickness = 0.415''

    • Max. Thickness = 8''

    • Cutter Head RPM = 4925 Rpm

    • Tooling = 15 x 15 x 2.5 mm

    • Head Type = Dynamically Balanced Helical Head

    • Cutter Head Dim = 5'' x 39-3/4''

    • Cut Head Matl. = Alloy Steel

    • Rows of Cutters = 9 Rows

    • No. of Inserts = 399 Inserts Per Head

    • Insert Size = 15 x 15 x 2.5 mm

    • No. of Heads = 2

    • Dust Collection = (2) 5'' @ 1362 CFM

    • Dust Port Out = (2) 5'' Outlets

    • Digital Display = Elevation and Feed Speed

    • Powered Rollers = (2) Top (2) Bottom

    • Idle Rollers = (1) Top (1) Bottom

    • Pressure Shoes = 39-1/2'' Pressure Shoe

    • No. of Spikes = 1900 Spikes

    • Rear E Stop = Push Button

    • Guarding = High Visibility Guarding

    • Oiler = Auto Digitally Controlled / Ma

    • Low Oil Warning = Low Oil Shut Off / Warning

    • Frame Const. = Cast/Steel Construction

    • Chrome Bed = .004'' Chrome Plated Bed

    • Decible Rating = 80 dB

    • Net Weight = 15600 Lbs.

    • Gross Weight = 16100 Lbs.

    • Machine Dims. = 11'' x 85'' x 82''

    • Packaging Dims = 112'' x 88'' x 83''
