LogRite Tractor Arches T30 & T36
LOGRITE TRACTOR T30 & T36 ARCH
DELIVERY LEAD TIME IS 12 WEEKS
LOGRITE TRACTOR T30 & T36 ARCH DESCRIPTION
Tractor Arches are designed to be used with tractors in demanding forestry and urban situations. The Tractor Arches are super strong and come in two sizes. The T30 is built to handle logs 30" in diameter and weigh up to 4000 pounds. While the T36 will handle a 36" diameter log that weighs up to 6000 pounds. The T30 has an 8' reach and is capable of carrying a 16' log fully suspended. The T36 has a 9' reach and is capable of carrying an 18' log. The arches are capable of carrying a 30' or longer log when using a Fetching Arch as the tag axle to pick up the tail.
- Shipping totals calculated on all arches are an estimate only. You may be contacted prior to shipment based on current pricing and the address provided with an adjusted total.
LOGRITE TRACTOR T30 & T36 ARCH SPECS
T30 T36 Log Capacity 30" 36" diameter Length Capacity 16' 18' fully suspended Weight Capacity 4000 6000 pounds Arch Width 65" 69" Arch Length 128" 147" Arch Height 52" 59" Arch Weight 415 lbs 550 lbs
LOGRITE TRACTOR T30 & T36 ARCH OPERATION

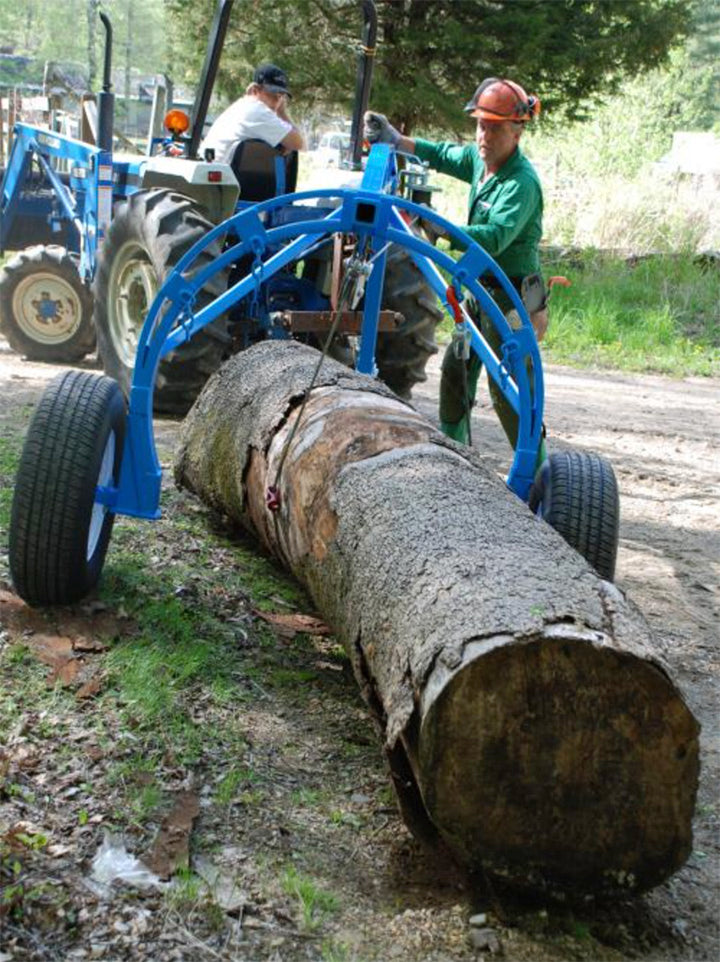

To use the Tractor Arches simply back the arch over the log and use the provided winch and choker line to hoist the log into place. Both sizes are equipped with a standard 3500 lb 2 speed hand winch and 3/8" choker line. Like the ATV Arch, the Tractor takes advantage of the doubling feature to help reduce the power needed to lift the log.
The Tractor Arches have a two inch ball and can be placed behind tractors and pick-up trucks. They can be moved to different locations using a car or ATV. The arch is designed so that the weight of the log is carried in the arch over the wheels this keeps the tongue weight minimal.
The Tractor Arches have receiver mounting provisions both in front and back for mounting battery boxes, power winches, and light bars.
The Tractor Arches are also built with brake flange spindles for the addition of electric brakes should the intended use be on steep slopes.
