LogRite ATV Arch

by LogRite
$2,300.00
SKU AA024

LOGRITE ATV ARCH

DELIVERY LEAD TIME IS 12 WEEKS

  • LOGRITE ATV ARCH DESCRIPTION

    The ATV arch is a tough, light structure designed to move logs. It is easy for one man to use. It can be used behind an ATV, Gator, riding lawn mower or pick up truck.

  • Shipping totals calculated on all arches are an estimate only.  You may be contacted prior to shipment based on current pricing and the address provided with an adjusted total.
  • LOGRITE ATV ARCH SPECS

    • Log Capacity: 25" diameter

    • Length Capacity: 10' fully suspended

    • Weight Capacity: 2000 pounds

    • Tire Size: 24" outside diameter

    • Ball Coupler: 2"

    • Arch Width: 58" includes tires

    • Arch Length: 111" includes tires

    • Arch Height: 52" at tip of winch handle from 13" ball height

    • Arch Weight: 234 pounds

  • LOGRITE ATV ARCH OPERATION

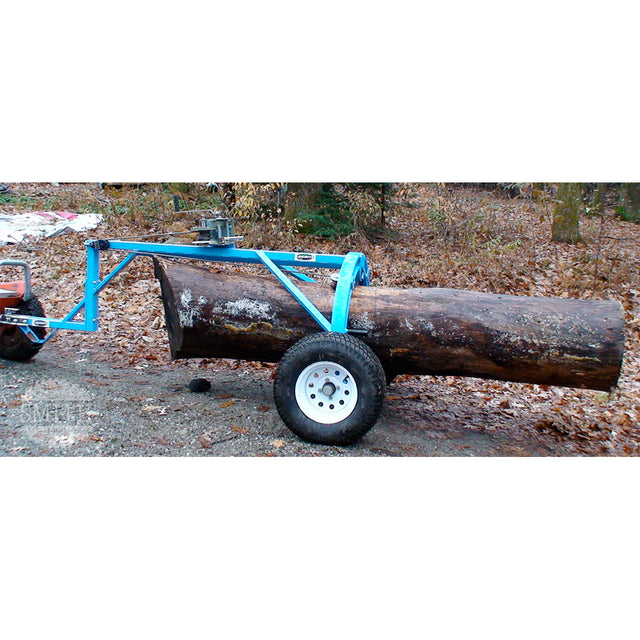

    The ATV arch has an effective "reach" of 5 feet allowing it to pick up logs up to 10 or 11 feet in overall length by their middle or drag just the tail end of longer logs. It is also effective in hauling logs 20 feet or longer with minimal tail drag. Where longer logs need to be moved with no disturbance the Junior, Buck or Fetching arches can be used as a tag axle to fully suspend the log.

    LogRite ATV Arch

    LogRite ATV Arch

    The ATV arch comes equipped with a 3200 lb 2 speed hand winch and a 3/8" choker cable. The winch line can be used for large single logs or multiple smaller logs.

    LogRite ATV Arch
