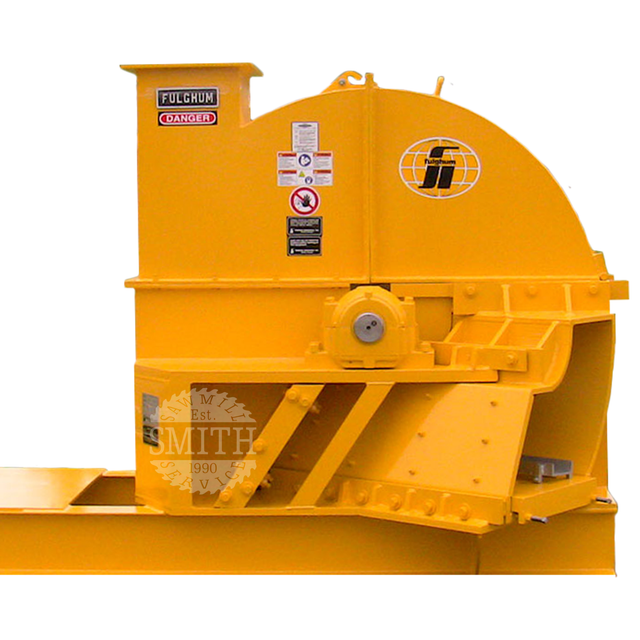

Fulghum Stationary Chipper
Fulghum Stationary Chipper is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
Fulghum Stationary Chipper
Description
Description
Fulghum offers chippers from 48"dia to 120"dia.
Precision engineering and quality control begin at Fulghum’s assembly plant in Wadley, GA where new chippers are manufactured and older units are reconditioned for many more years of useful life.
Fulghum is the first family of wood chippers. From a 48" diameter sawmill chipper to our 120" diameter woodyard chipper. Fulghum chippers have become the standard for service and reliability in applications industry wide.
Chip uniformity and long hours of continuous operation in processing a variety of pine and hardwoods are required in today’s chip preparation for pulp production and the Fulghum chipper delivers on both counts.
Chipper research is ongoing at Fulghum Industries where engineers and designers are constantly developing improved configurations for various wood species found in North America and in overseas woodlands.
SPECIFICATIONS
| CHIPPER SPECIFICATIONS | SIZES |
|---|---|
| Fulghum 120" CHIPPER | |
| Disc Diameter | 120 in. |
|
Disc Thickness |
11.25 in. |
| Knives |
14 |
| Capacity Log |
30 in. dia |
| Nominal Speed | 327 rpm |
| Shaft | 13 in. dia |
| TTL Weight | 114800 lbs. |
| Fulghum 112" CHIPPER | |
| Disc Diameter |
112 in. |
| Disc Thickness | 8.5 in. |
| Knives | 8, 10, 12 |
| Capacity Log | 30 in. dia |
| Nominal Speed | 350 rpm |
| Shaft | 7.9375 in. dia |
| TTL Weight | 52200 lbs. |
| Fulghum 96" CHIPPER |
|
| Disc Diameter |
96 in. |
| Disc Thickness |
6.75 in. |
| Knives |
6, 8, 10 |
| Capacity Log |
26 in. dia |
| Nominal Speed | 425 rpm |
| Shaft | 6.9375 in. dia |
| TTL Weight | 41200 lbs. |
| Fulghum 84" CHIPPER | |
| Disc Diameter | 84 in. |
| Disc Thickness |
5.75 in. |
| Knives |
3, 4, 6, 8 |
| Capacity Log |
22 in. dia |
| Nominal Speed | 500 rpm |
| Shaft | 5.4375 in. dia |
| TTL Weight | 33700 lbs. |
| Fulghum 75" CHIPPER | |
| Disc Diameter | 75 in. |
|
Disc Thickness |
4.74 in. |
| Knives |
3, 4, 6 ,8 |
| Capacity Log |
19 in. dia |
| Capacity Slab | 40 in. |
| Nominal Speed | 550 rpm |
| Shaft | 5.1875 in. dia |
| TTL Weight | 26200 lbs. |
| Fulghum 66" CHIPPER | |
| Disc Diameter |
66 in. |
| Disc Thickness | 4.74 in. |
| Knives | 3, 4, 6 ,8 |
| Capacity Log | 17 in. dia |
| Capacity Slab | 37 in. |
| Nominal Speed | 600 rpm |
| Shaft | 4.9375 in. dia |
| TTL Weight | 14600 lbs. |
| Fulghum 60" CHIPPER | |
| Disc Diameter | 60 in. |
|
Disc Thickness |
4.75 in. |
| Knives | 3, 4, 6, 8 |
| Capacity Log |
15.5 in. dia |
| Capacity Slab | 34 in. |
| Nominal Speed | 700 rpm |
| Shaft | 4.4375 in. dia |
| TTL Weight | 10100 lbs. |
| Fulghum 54" CHIPPER | |
| Disc Diameter |
54 in. |
| Disc Thickness | 4.75 in. |
| Knives | 3, 4, 6, 8 |
| Capacity Log | 13 in. dia |
| Capacity Slab | 30 in. |
| Nominal Speed | 750 rpm |
| Shaft | 4.1875 in. dia |
| TTL Weight | 8100 lbs. |
| Fulghum 48" CHIPPER | |
| Disc Diameter | 48 in. (1219mm) |
|
Disc Thickness |
3.75 in. |
| Knives |
3, 4, 6, 8 |
| Capacity Log |
11 in. dia (280mm) |
| Capacity Slab | 28 in. |
| Nominal Speed | 875 rpm |
| Shaft | 3.9375 in. dia |
| TTL Weight | 5800 lbs. |
