Precision PG-900 Tub Grinder, Smith Sawmill Service

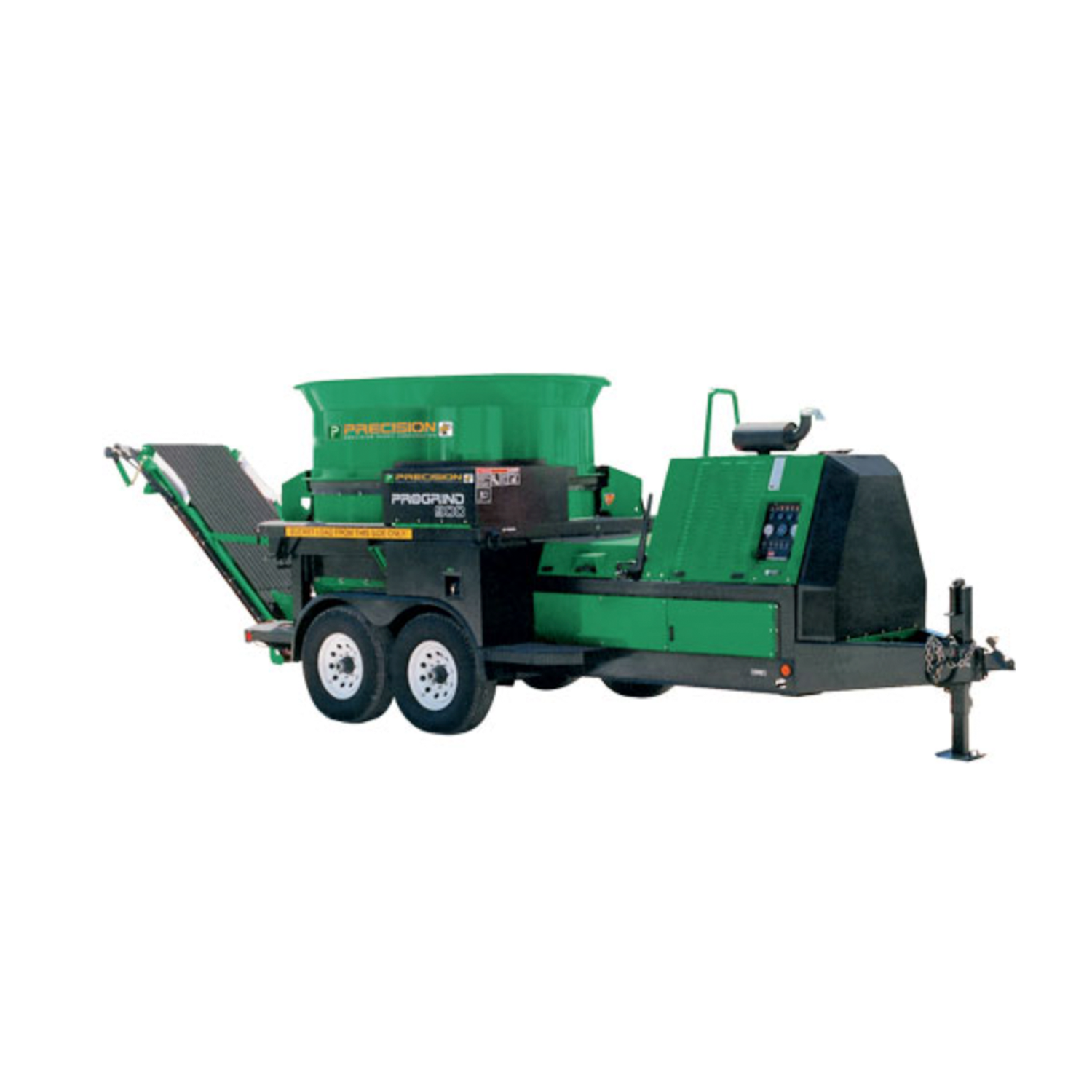

Precision PG-900 Tub Grinder

by Precision
SKU PRECISION-PG900-TUB-GRINDER

CAPABILITIES

ProGrind Tub Grinders offer industry-leading, user-friendly controls, clutch protection and a variety of hammer options for grinding versatility. The tub on each model tilts up to 90 degrees for easy access to the hammermill, screens and lower auger area. Precision Husky offers six rugged models, each built with ease of operation, cost and – always – your productivity in mind.

PERFORMANCE

There is nothing average about our base model. With its 200 to 230HP diesel engine, the 900 may be just the thing for your wood waste operation. It’s versatile, with different hammer options. The tub tilts 38 degrees for easy access to the hammermill, screens and lower auger area.

Like all of our industry-leading grinders, the 900 is designed for maximum productivity and low maintenance.

SPECIFICATIONS

  • GENERAL DIMENSIONS
    SPECS
    Transport Length
    18’-6” [5.64 m]
    Trans. Length w/Conveyor
    24’-9” [7.62 m]
    Transport Height
    7’-7” [2.29 m]
    Transport Width
    7’-5” [2.28 m]
    Loading Height
    7’-7” [2.29 m]
    Tongue Weight
    800-900 lbs. [362-408 kg]
    Axle Weight
    9,400 lbs. [4,264 kg]
    Gross Weight
    10,200 lbs. [4,826 kg]
    Gross Weight w/Conveyor
    10,900 lbs. [4,944 kg]
  • ENGINE
    SPECS
    Horsepower
    200 to 230
    Air Cleaner
    Donaldson Dry Type
    Fuel Capacity
    30 gal. [114 l]
  • DRIVE TRAIN
    SPECS

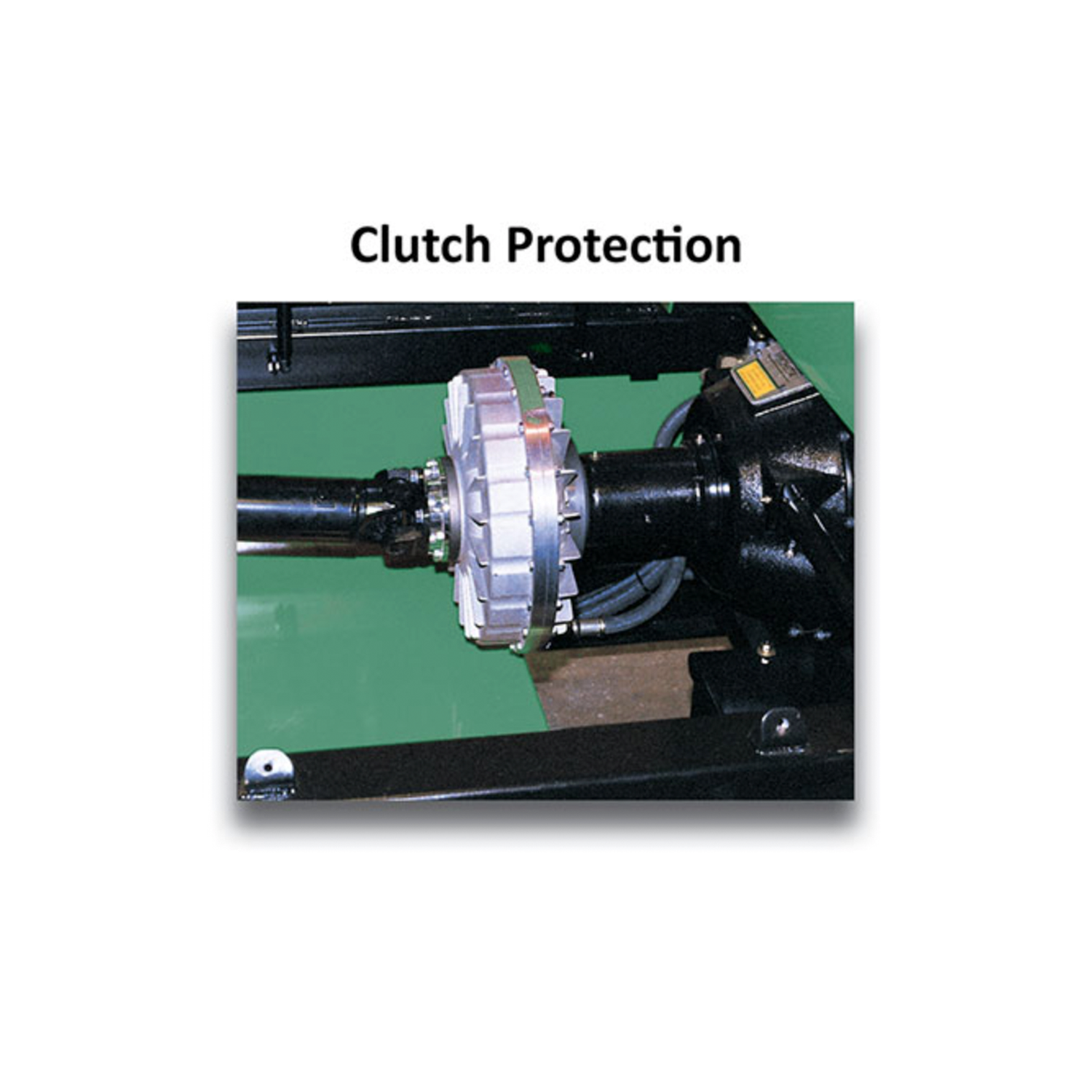

    Clutch
    Wichita 11” [28 cm]
    Fluid Coupler
    Transfluid 13 KRU
    Drive Shaft
    Spicer 1410; Rated @820 ft -lb
    Final Drive
    1:1, 2400 RPM
  • HAMMERMILL
    SPECS
    Hammer Swing Diameter
    26 1/4” [67 cm]
    Hammers
    2” [5.08 cm] Thick, Machined to 1 7/8” [5 cm] in Hammer Swing Area
    Opening
    35” X 25 3/8” [89 cm x 64.2 cm]
    Length
    33 1/2” [84 cm]
    Diameter
    16 7/8” [43 cm] With 9” [23 cm] Diameter Center
  • TUB
    SPECS
    Inside Width
    6’-6” [2 m]
    Flare Width
    7’-5” [2.29 m]
    Depth
    38” [96 cm]
    Walls
    3/8” [9.5 mm] Steel Plate with 1/8” [3.2 mm] Flares
    Agitators
    Four 1/4 x 3” [.64 cm x 7.6 cm]
    Speed
    Variable, Up to 6 RPM Forward and Reverse; Auto Reverses if Jammed, or RPMs below 1800
    Drive
    10,000 in. lbs [1,130 nm] Torque; Triple-50 Chain, Overload Protected Hydraulic Motor
  • DISCHARGE SYSTEM
    SPECS

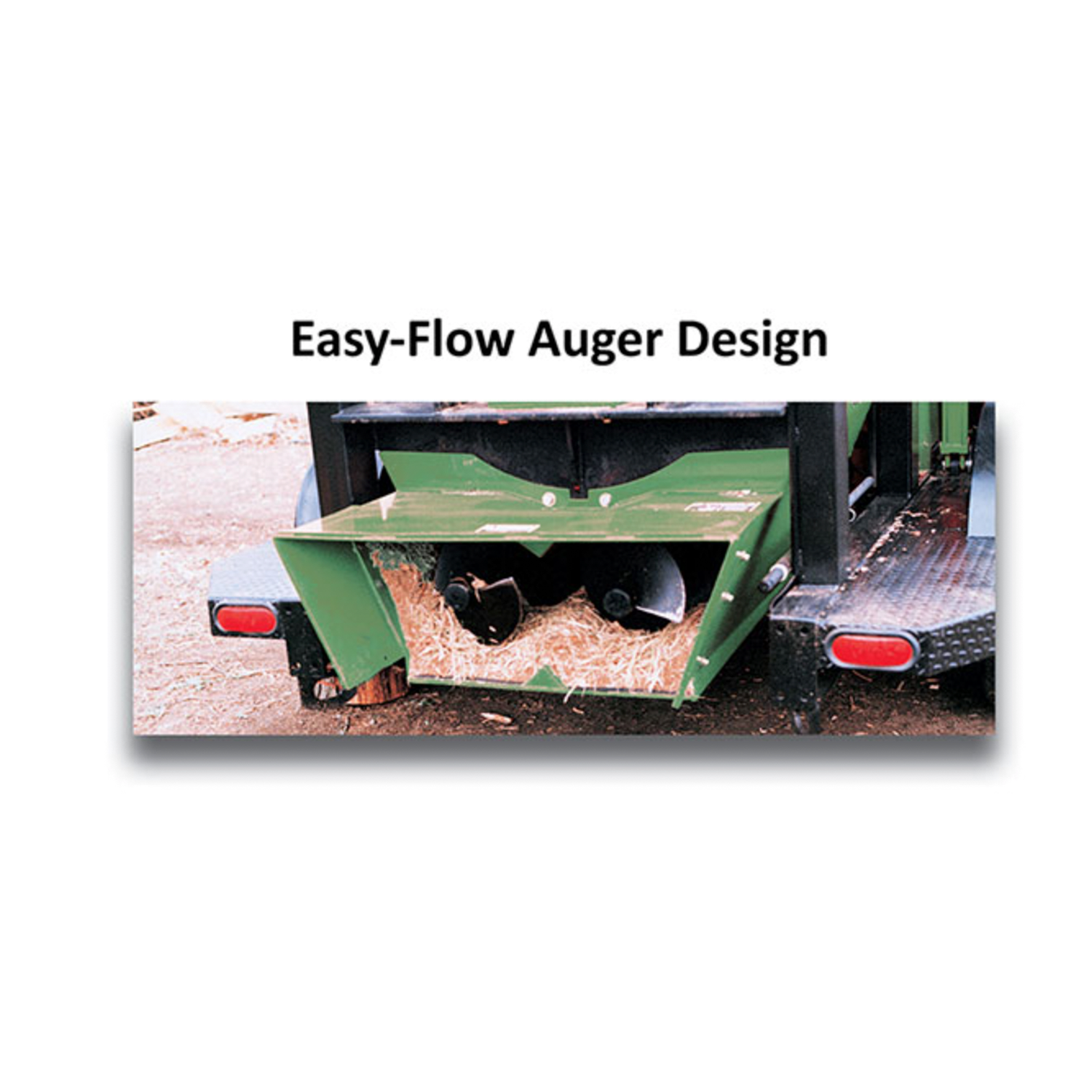

    Augers
    Two 12” [30 cm] Hydraulic Driven
    Optional Stacking Conveyor
    8’-0” [2.44 m] Long, 30” [76.2 cm] Wide, 6’-0” [1.8 m] Stacking Height

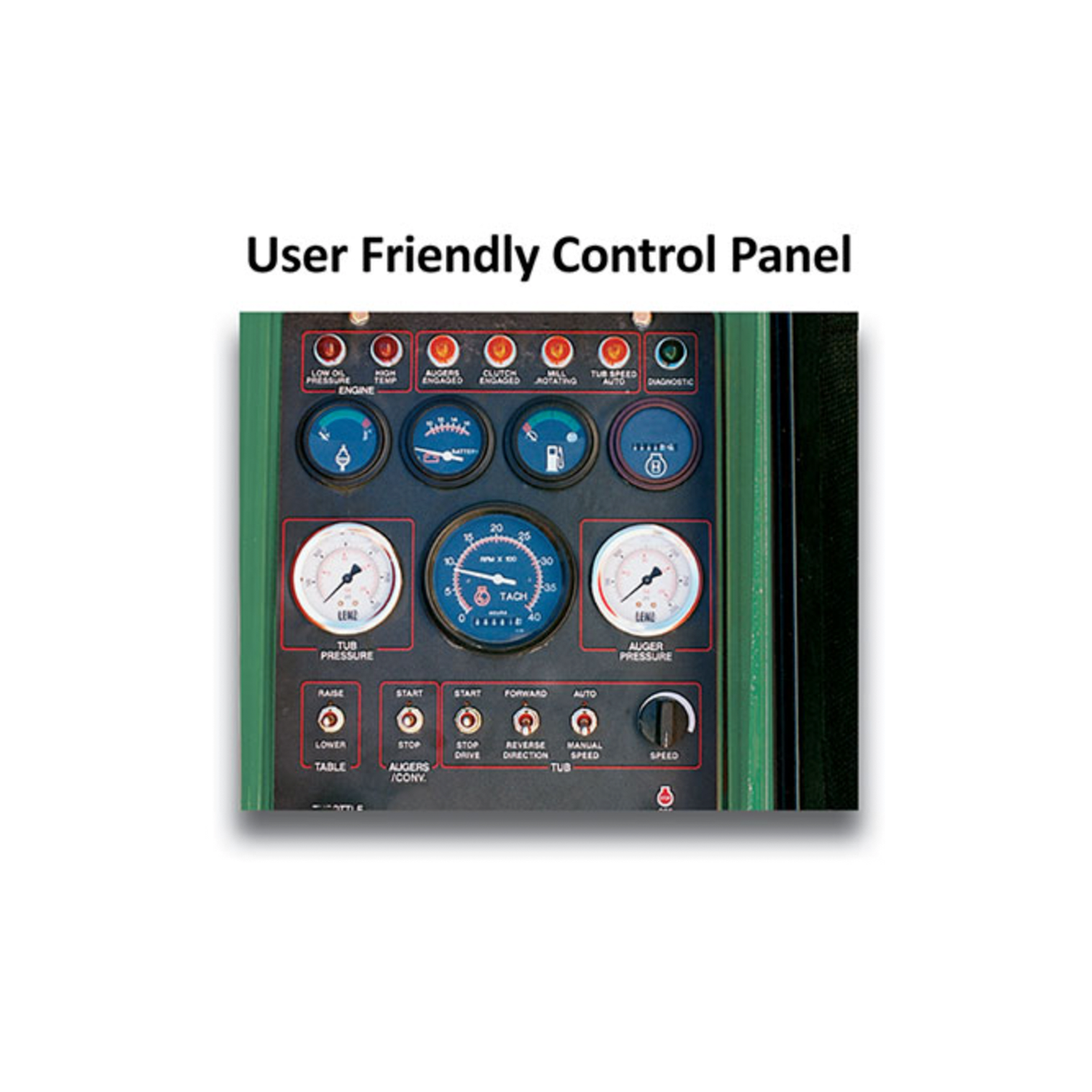

    Controls
    Ignition, Engine Speed, Tub Controls, Augers/Conveyor Controls, Table Raise/Lower
    Gauges
    Engine Temp, Voltmeter, Fuel Gauge, Tach/Hourmeter, Mill Hourmeter, Tub Pressure Gauge, Auger Pressure Gauge, Diagnostic Lights
  • OPTIONAL EQUIPMENT
    SPECS
    Stacking Conveyor
    8’-0” [2.44 m] Long, 30” [76.2 cm] Wide, 6’-0” [1.8 m]
    Magnetic Roller
    Magnetic Conveyor Drive Pulley with Nail Chute
    Hammers
    12 1/2 lb [5.68 kg] Flail Hammer with Optional Replaceable Tip
×





×
