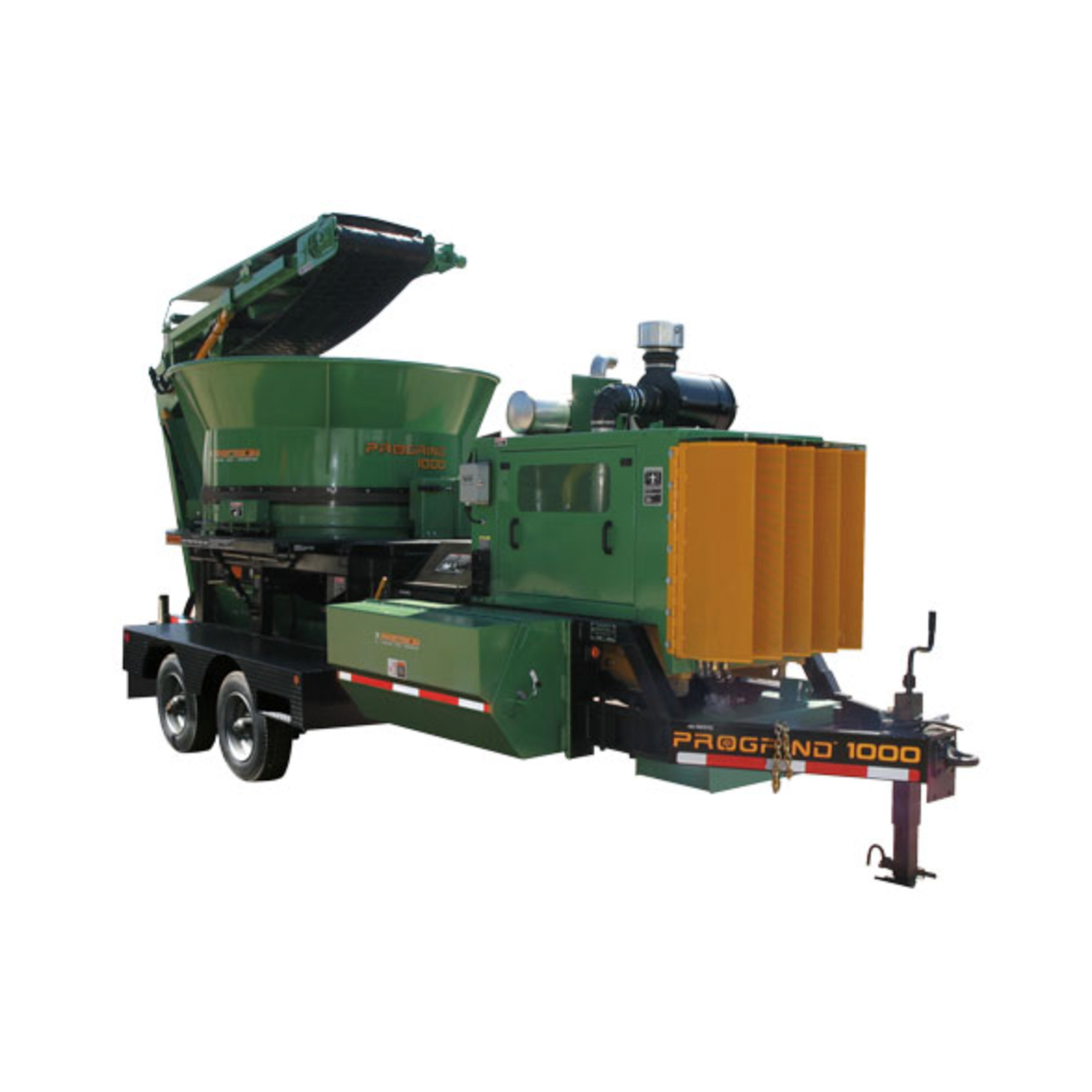

Precision PG-1000 Tub Grinder

CAPABILITIES

ProGrind Tub Grinders offer industry-leading, user-friendly controls, clutch protection and a variety of hammer options for grinding versatility. The tub on each model tilts up to 90 degrees for easy access to the hammermill, screens and lower auger area. Precision Husky offers six rugged models, each built with ease of operation, cost and – always – your productivity in mind.

PERFORMANCE

The PG-1000 has efficiency, versatility, low noise and ease of maintenance, the 1000 can’t be beat. The 250HP diesel engine powers multiple hammer options and comes equipped with dual 12 inch hydraulically driven augers.

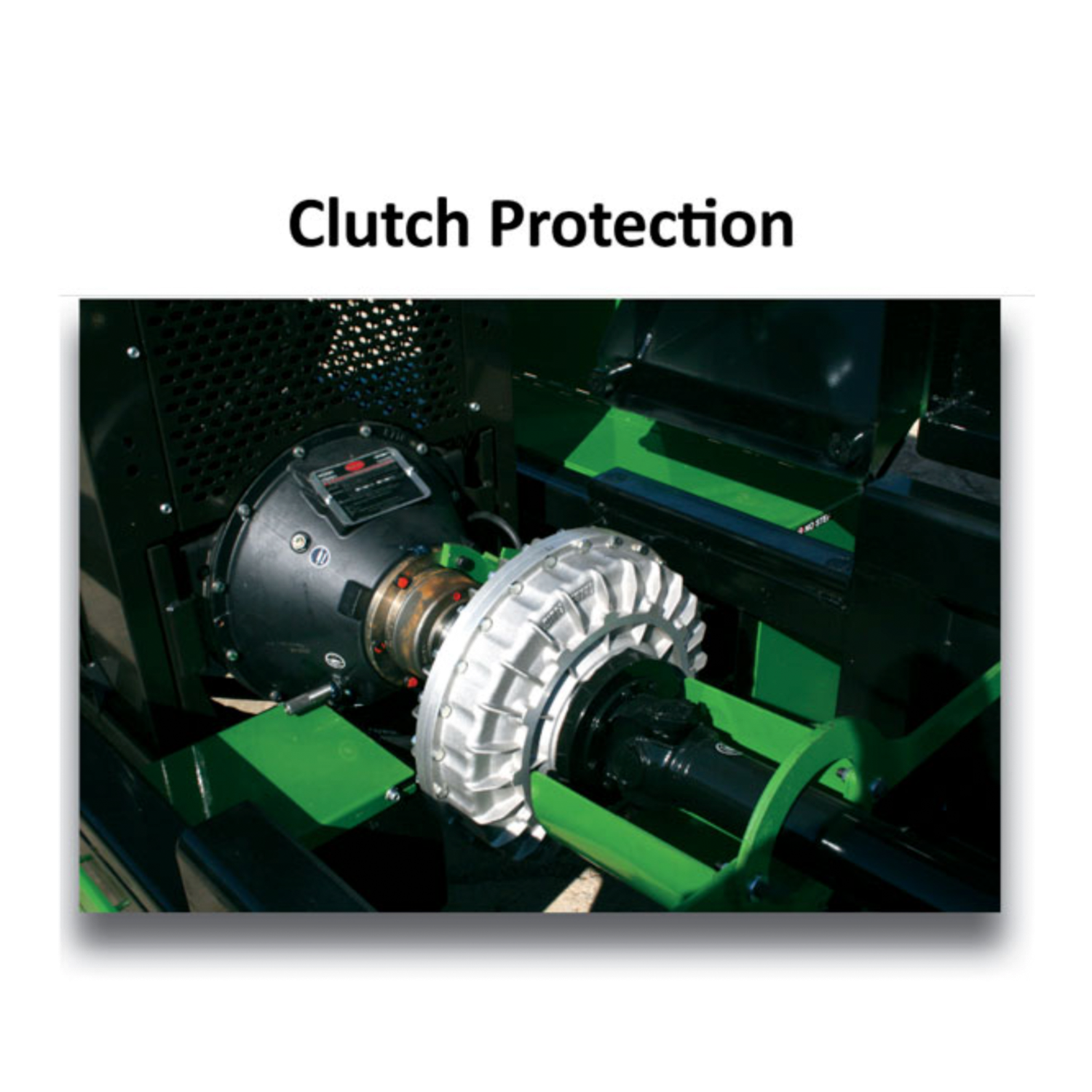

The fluid coupling clutch protection dramatically reduces clutch wear and virtually eliminates the possibility of clutch failure.

VIEW BROCHURE

SPECIFICATIONS

• GENERAL

• ENGINE

• DRIVE TRAIN

• HAMMERMILL

• TUB

• DISCHARGE

• CONTROL PANEL

• GENERAL DIMENSIONS	SPECS
  Transport Length w/14' Conveyor	30’-0” [9.2 m]
  Trans. Length w/20' Conveyor	26’-0” [8.9 m]
  Transport Height	12’-10” [3.9 m]
  Transport Width	8’-5” [2.6 m]
  Loading Height	9’-0” [2.7 m]
  Tongue Weight	2,200 lbs. [998 kg]
  Axle Weight	15,500 lbs. [7031kg]
  Gross Weight	17,500 lbs. [7938kg]

• ENGINE	SPECS
  Horsepower	240-300HP [179-224kw]
  Air Cleaner	Donaldson Dry Type
  Fuel Capacity	60 gal. [227 l]

• DRIVE TRAIN	SPECS
  Clutch	Twin-Disc SP214
  Fluid Coupler	Transfluid 17 KRU
  Drive Shaft	Spicer 1610; Rated @2200 ft -lb [2,983 nm]
  Final Drive	1:1, 2200 RPM

• HAMMERMILL	SPECS
  Opening	35” X 25 7/16” [89 cm x 64.2 cm]
  Length	33 1/2” [84 cm]
  Deflector	1/2” [12.7 mm] Thick T-1 Steel Thrown Object Deflector
  Diameter	16 7/8” [43 cm] With 9” [23 cm] Diameter Center
  Shaft	5” [12.7 cm] Diameter Hardened Alloy Steel
  Mill Plates	2” [5.08 cm] Thick, Machined to 1 7/8” [4.75 cm] in Hammer Swing Area
  Hammers	Replaceable Tip Flail Hammer Standard; Optional 5 lb [2.27 kg] Flail Hammer Available; All Hammers Heat Treated and Hard Surfaced
  Hammer Swing Diameter	26 1/4” [66.68 cm]
  Hammer Rods	1 1/2” [3.8 cm] Hardened Alloy Steel (6)
  Bearings	2 15/16” [7.62 cm] Double Row Spherical

• TUB	SPECS
  Inside Width	6’-6” [2 m]
  Flare Width	8’-5” [2.6 m]
  Depth	48” [1.22 m]
  Walls	3/16” [4.75 mm] Steel Plate with 3/16” [4.75 mm] Flares
  Agitators	Four 3/8” X 3” [9.53 mm x 76.2 mm]
  Speed	Variable, Up to 10 RPM Forward and Reverse
  Drive	10,500 in. lbs. [1,186 nm] Torque; Overload Protected Hydraulic Motor, 4:1 Planetary Gearbox; Triple-50 Chain

• DISCHARGE SYSTEM	SPECS

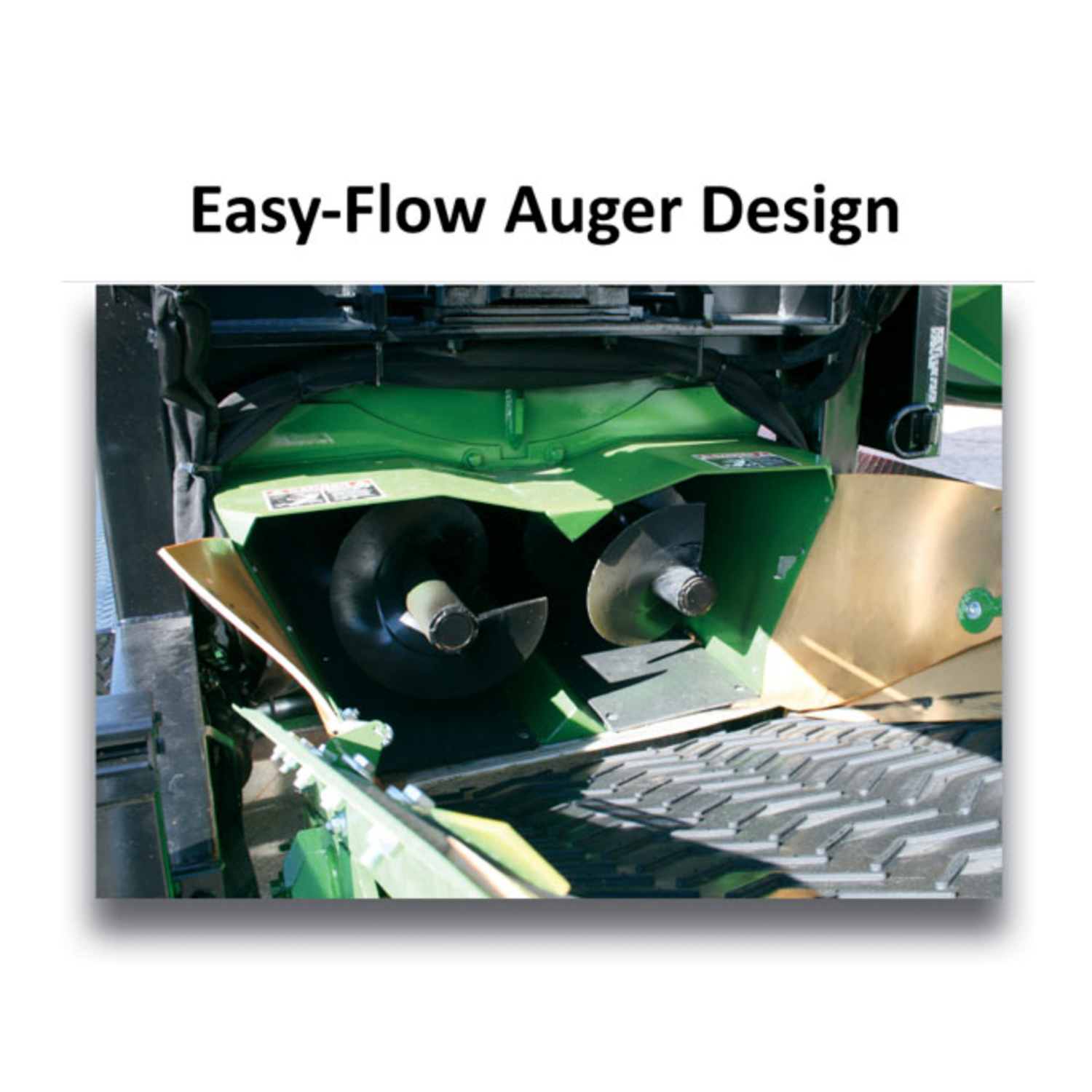

  Augers	Two 12” [30.48 cm] Hydraulic Driven
  Stacking Conveyor	20’-0” [6.10 m] Long, 30” [76.2 cm] Wide; 12’-10” [3.9m] Stacking Height complete with magnetic drive pulley and nail chute

• CONTROL PANEL	SPECS
  Controls	Ignition, Engine Speed,Tub Controls, Augers/Conveyor Controls, Table Raise/Lower
  Gauges	Engine Temp, Engine Oil Pressure, Voltmeter, Fuel Gauge, Tach/Hourmeter, Tub Pressure Gauge, Auger Pressure Gauge
