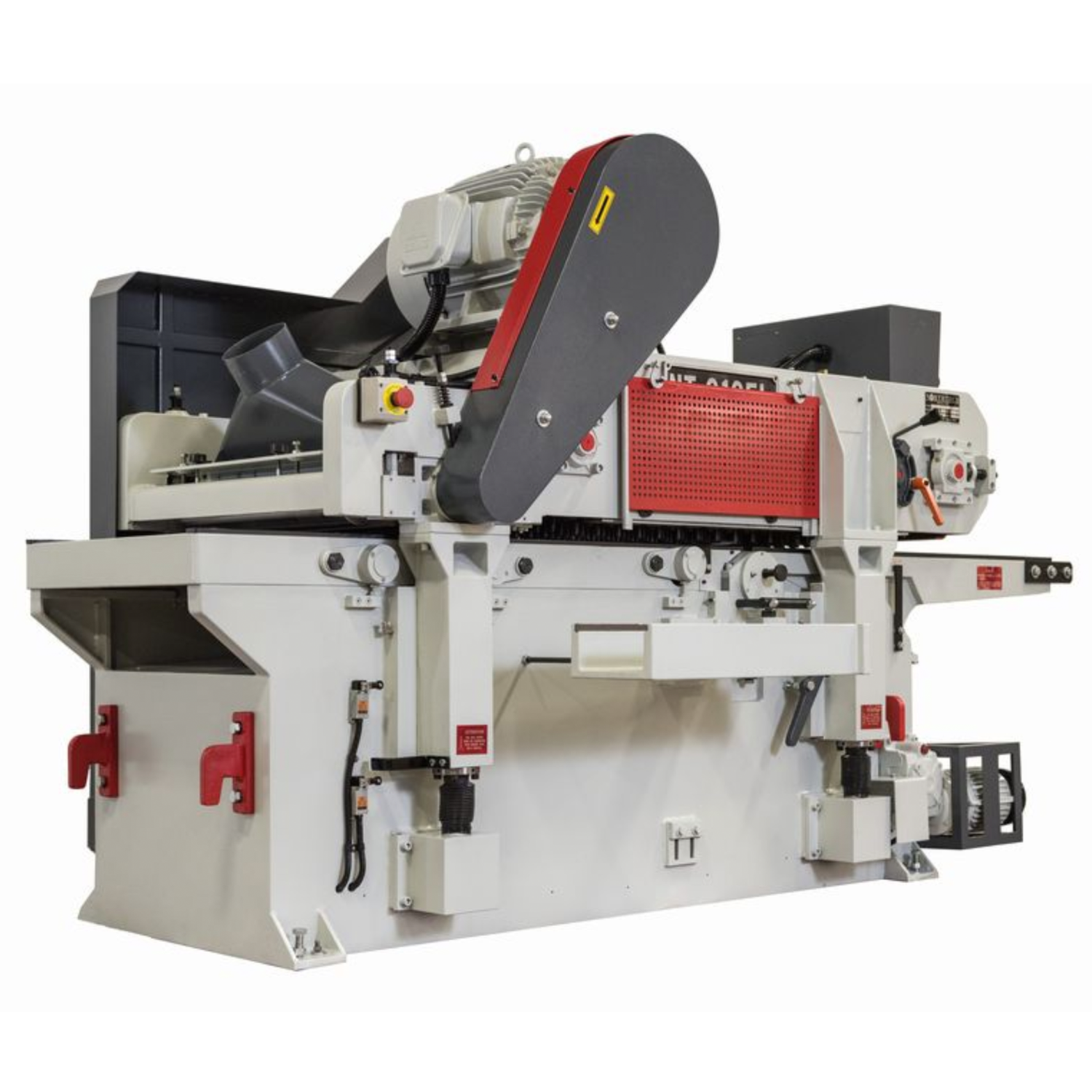

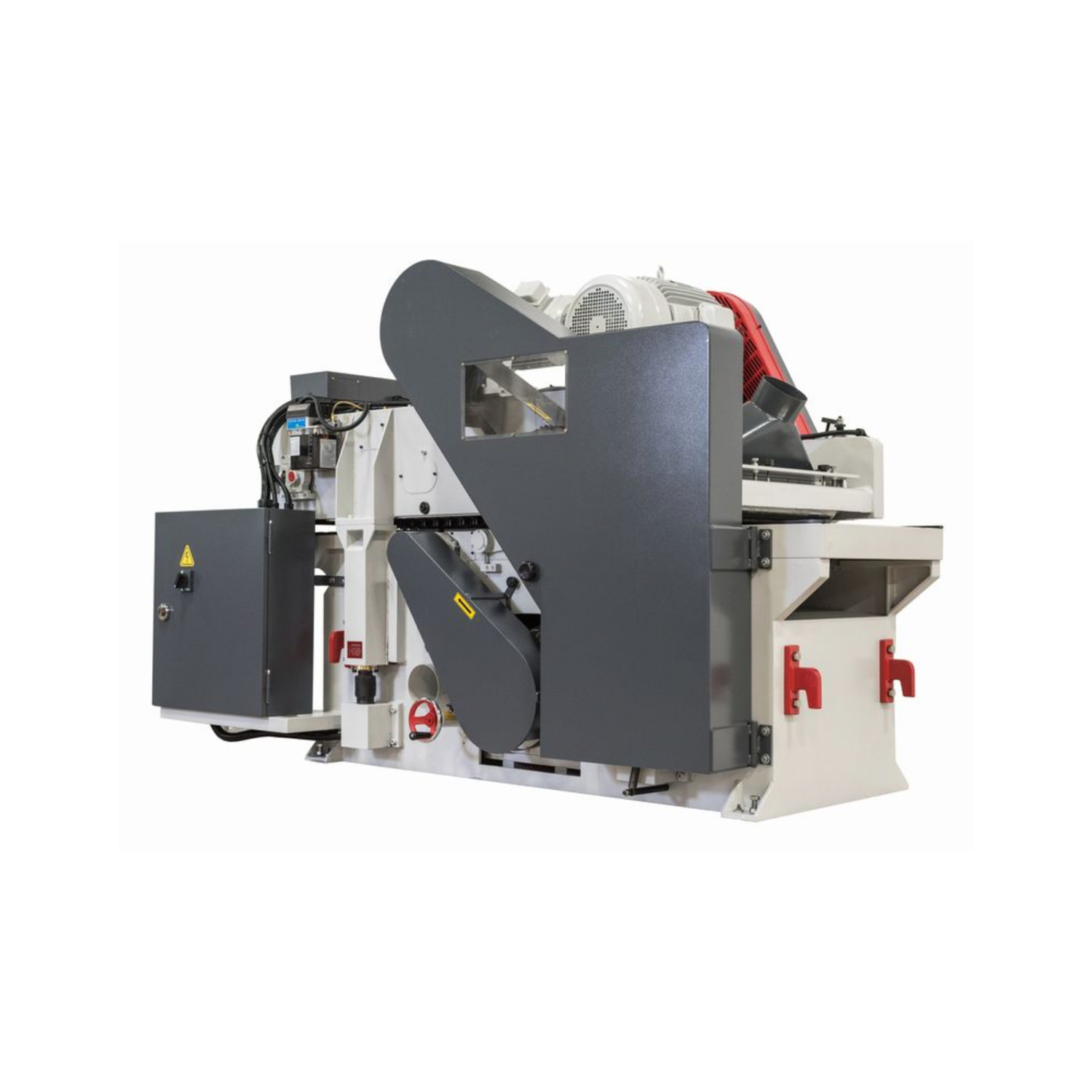

NorthTech Double Surface Planer NT 610EL Heavy Duty

MODEL Double Surface Planer NT 610EL Heavy Duty Chain Drive

• FEATUERES
• SPECS

• FEATURES

  • Mechanical variable speed

  • Dual (6) Row Helical Cutterhead with 15 x 15 x 2.5 mm inserts<

  • 5100 RPM Cutterheads

  • Working thickness 3/8” - 6-1/2”

  • 15” min working length

  • Mechanical variable speed

  • Digital control panel with 3 amp readouts

  • 1100 Spike carpet feed

  • Feed speed 25-95 ft/min<

  • Chrome bed plate .01mm .0039”

  • Amperage requirement at 230 / 460: 162 / 81

  • (2) 6” dust ports

  • Automatic lubricating system with low level shut off

  • UL/CE Certified electrical components

  • Includes operator’s manual and parts book

  • Dust collection requirements: 1,000 CFM @ each point of extraction

  • Machine dimensions: 112'' x 46'' x 71''

  • Packing dimensions: 116'' x 51'' x 78''

  • Machine gross / net weight: 7,276 lbs. / 8,158 lbs

  • (1) Tool box

  • Warranty is one year parts

  • All machines are tested stateside prior to shipment providing trouble free start up.

• SPECS


  • Top Head Hp. = 25 Hp.

  • Bottom Head Hp. = 25 Hp.

  • Voltage/ Freq. = 230 Volt 60Hz

  • Phase = 3 Phase

  • Amp Requirement = 162 Amps

  • Feed Hp. = 5 Hp.<

  • Feed System = Carpet Feed / Powered Rollers

  • Drive System = Chain with Slip Clutch

  • Feed Speed = 25 - 95 FPM

  • Variable Speed = CVT Adjustable Drive

  • Elevation Hp. = 1 Hp.

  • Elevation Style = DP-626S Elevation Control

  • Elevation Sys. = (4) Post Jack Screw

  • Total Hp. = 56 Hp.

  • Electronics = CE Approved Components

  • Dual Voltage = 230/460 Volt

  • Control Voltage = 110 Volt

  • Min. Length = 15''

  • Min. Width = 1.5''

  • Max. Width = 24''

  • Min. Thickness = 3/8''

  • Cutter Head RPM = 5100 Rpm

  • Head Type = Dynamically Balanced Helical Head<

  • Cutter Head Dim = 5-1/4'' x 25''

  • Cut Head Matl. = Alloy Steel

  • Rows of Cutters = 6 Rows

  • No. of Inserts = 180 Inserts

  • Insert Size = 15 x 15 x 2.5 mm

  • No. of Heads = 2<

  • Dust Collection = 981 CFM @ Extraction Point

  • Dust Port Out = (2) 6'' Ports

  • Digital Display = Elevation

  • Powered Rollers = (4) Powered Rollers

  • Idle Rollers = (1) Top (1) Bottom

  • Hold Down Style = Chip Breakers/ Pressure Plate

  • No. of Spikes = 1100 Spikes<

  • Rear E Stop = Push Button

  • Guarding = High Visibility Guarding<

  • Oiler = Auto Oiler

  • Low Oil Warning = Low Oil Shut Off / Warning

  • Frame Const. = 1/2'' Steel/Cast Iron Construction

  • Chrome Bed = .004'' Chrome Plated Bed<

  • Decible Rating = 80 dB<

  • Net Weight = 8158 Lbs.

  • Gross Weight = 7,276 Lbs.

  • Machine Dims. = 112'' x 46'' x 74''

  • Packaging Dims = 116" x 51" x 78"
