NorthTech Up Cut Saw CS30L-1532 + CS30R-1532
Description
Description
NorthTech Up Cut Saw NT CS30L-1532
-
FEATURES
• 15 HP motor

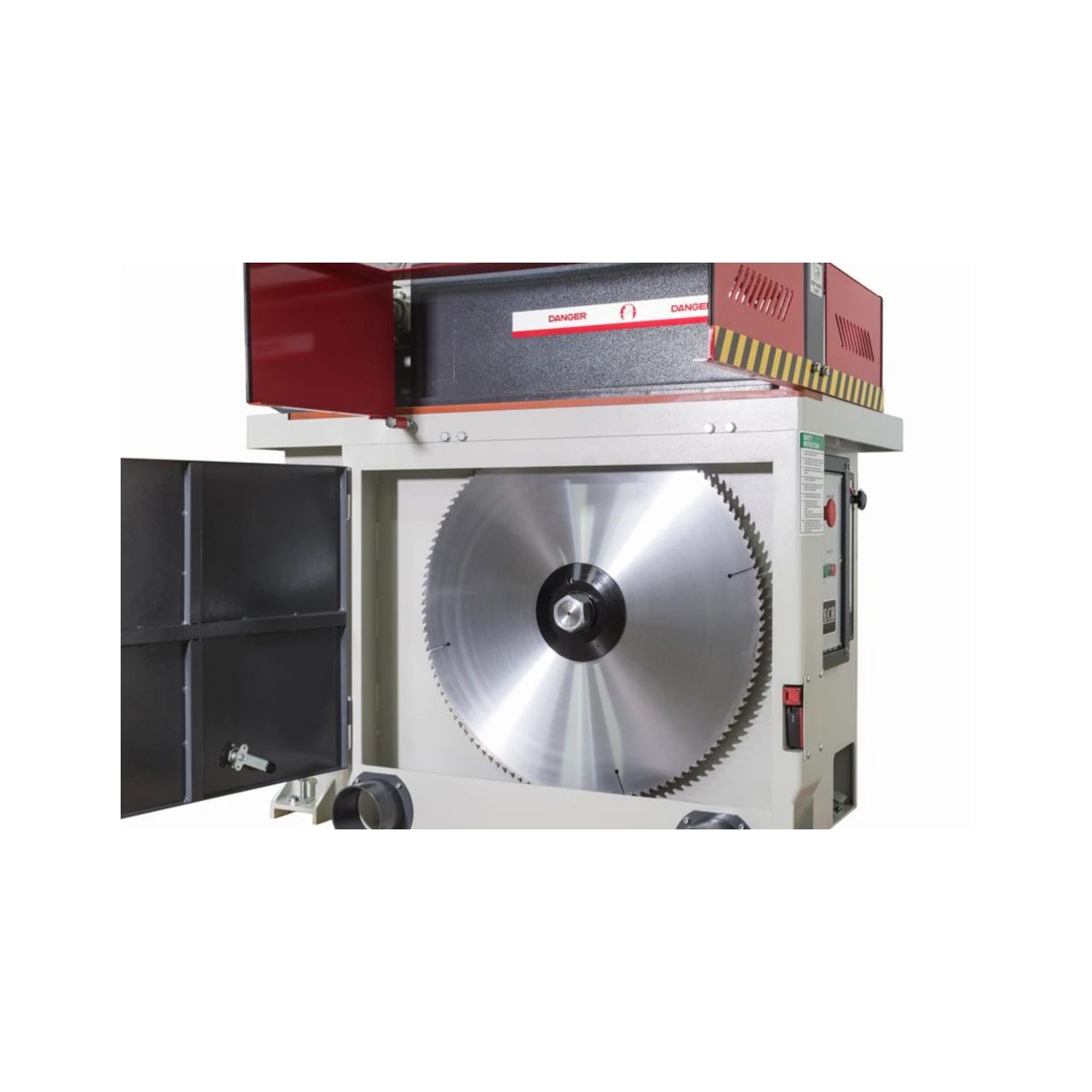

• 30” Carbide tipped blade included
• 1600 RPM
• 2” Saw arbor diameter
• Cycle speed: 12-15 stroke/min
• Pneumatic cycle
• Quick access on front of the machine to adjust blade stroke.
• Safety interlock on blade access door
• Table size: 50” x 32”
• (3) 5" dust ports requiring 981 CFM at point of extraction
• Net / Gross weight: 1,704 lbs. / 1,915 lbs.
• Packing dimensions: (L) 56" x (W) 38" x (H) 69"
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start
-
CUTTING CAPACITY
WITH FENCE
• 1'' x 25-1/2''
• 2'' x 25-1/16''
• 4'' x 23-15/16''
• 6'' x 21-1/4''
• 8'' x 16-3/8''
• 10'' x 6-3/4''
• 10-3/8'' x 2-1/2''
WITHOUT FENCE
• 1'' x 27-3/4''
• 2'' x 27''
• 4'' x 24-1/2''
• 6'' x 21-1/4''
• 8'' x 16-3/8''
• 10'' x 6-3/4''
• 10-3/8'' x 2-1/2''
-
SPECS

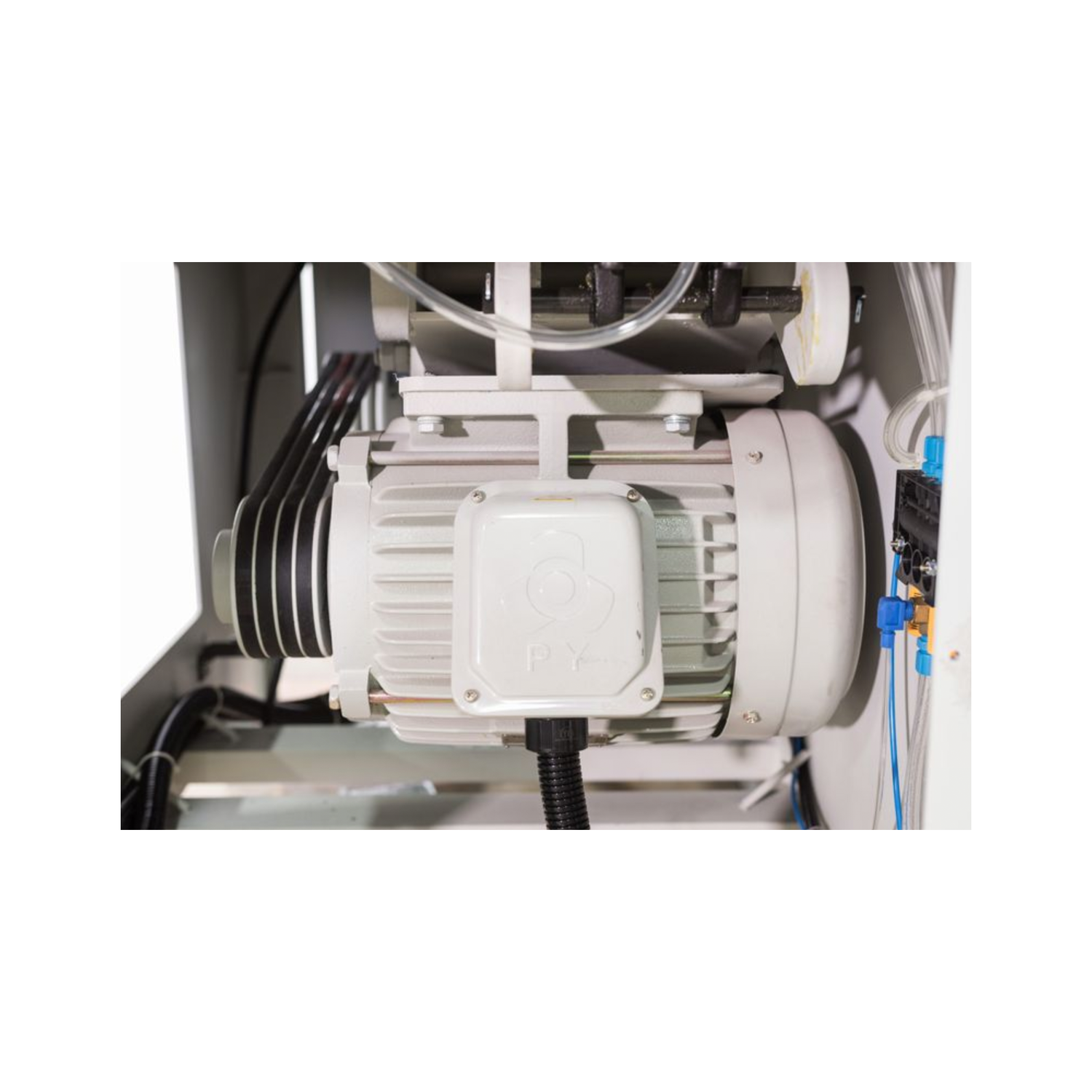

• Main Motor Hp. = 15 hp.
• Voltage/ Freq. = 230 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 32 Amps
• Total Hp. = 15 Hp.
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Assisted Start = Wye Delta
• Pass-Line = 36''
• Max. Width = 1'' x 25-1/2''
• Max. Thickness = 10-3/8'' x 2-1/2''
• Arbor Rpm = 1600 Rpm
• Blade Size = 30'' Tungsten Carbide Tipped
• No. of Teeth = 120 Tooth
• Tooth Spacing = 3/4''
• Blade Kerf = .185''
• Dust Collection = (3) 5'' Ports @ 981 CFM
• Arbor Diameter = 2" Arbor
• Cycles/Minute = 12-15 Cycles Per Minute
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 1/4'' Line @ 90 PSI
• Emergency Stop = Push Button
• Safety Feature = Safety Interlock Switch
• Guarding = Full Guard with Clear View
• Operation Style = Pneumatic Foot Pedal
• Fence Type = Adjustable Fence
• Fence Dims. = 3-3/4'' x 39-3/8''
• Frame Const. = Cast/Steel Construction
• Worktable Dims. = 50'' x 31-7/8''
• Table Const. = Cast Iron
• Decible Rating = 77 dB
• Net Weight = 1704 Lbs.
• Gross Weight = 1915 Lbs.
• Machine Dims. = 50'' x 64'' x 63''
• Packaging Dims = 56'' x 38'' x 69''
ITEM ID: 4524
