NorthTech Up Cut Saw CS20L-1034 + CS20R-1034
NorthTech Up Cut Saw CS20L-1034 + CS20R-1034 - Left is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
NorthTech Up Cut Saw CS20L-1034 + CS20R-1034
Description
Description

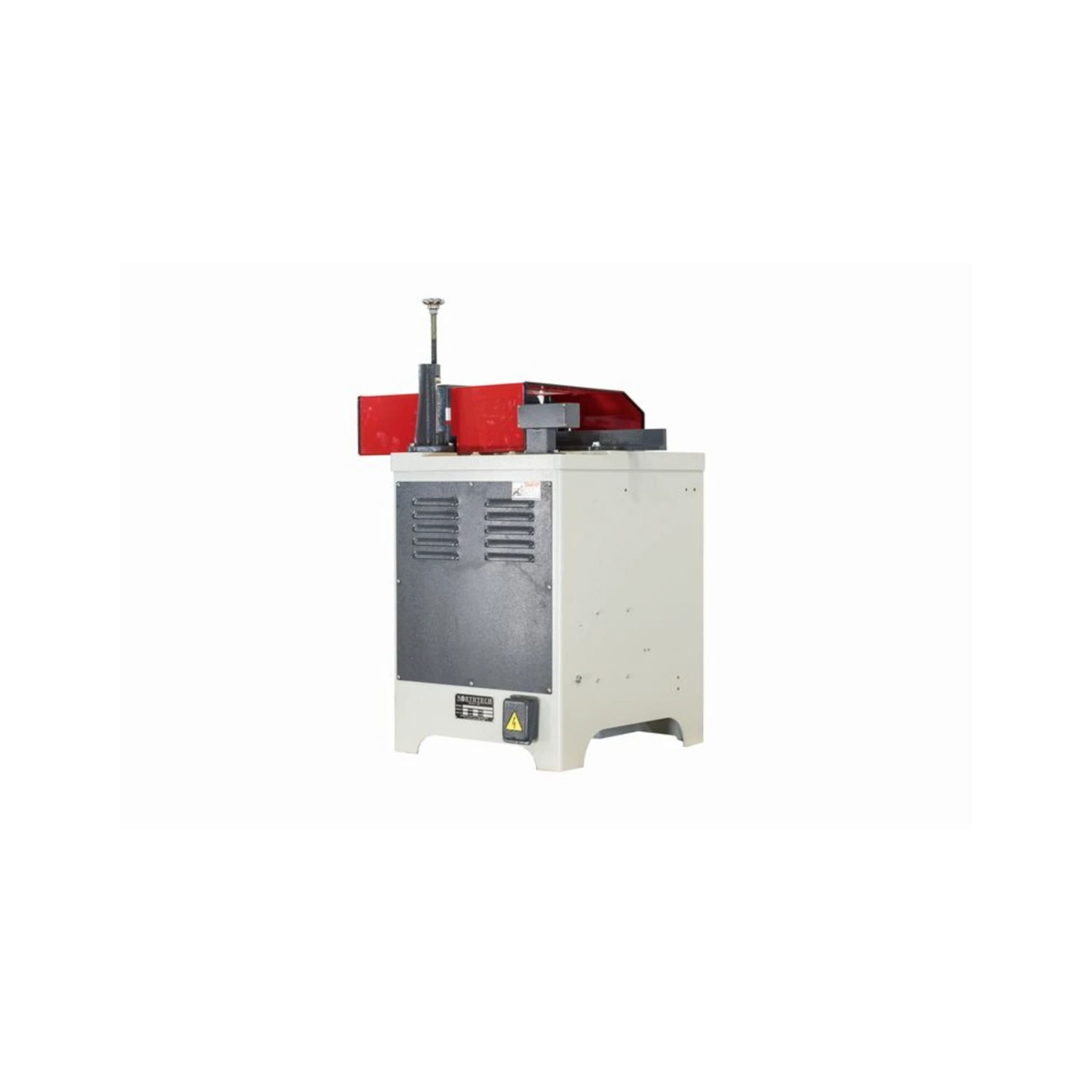

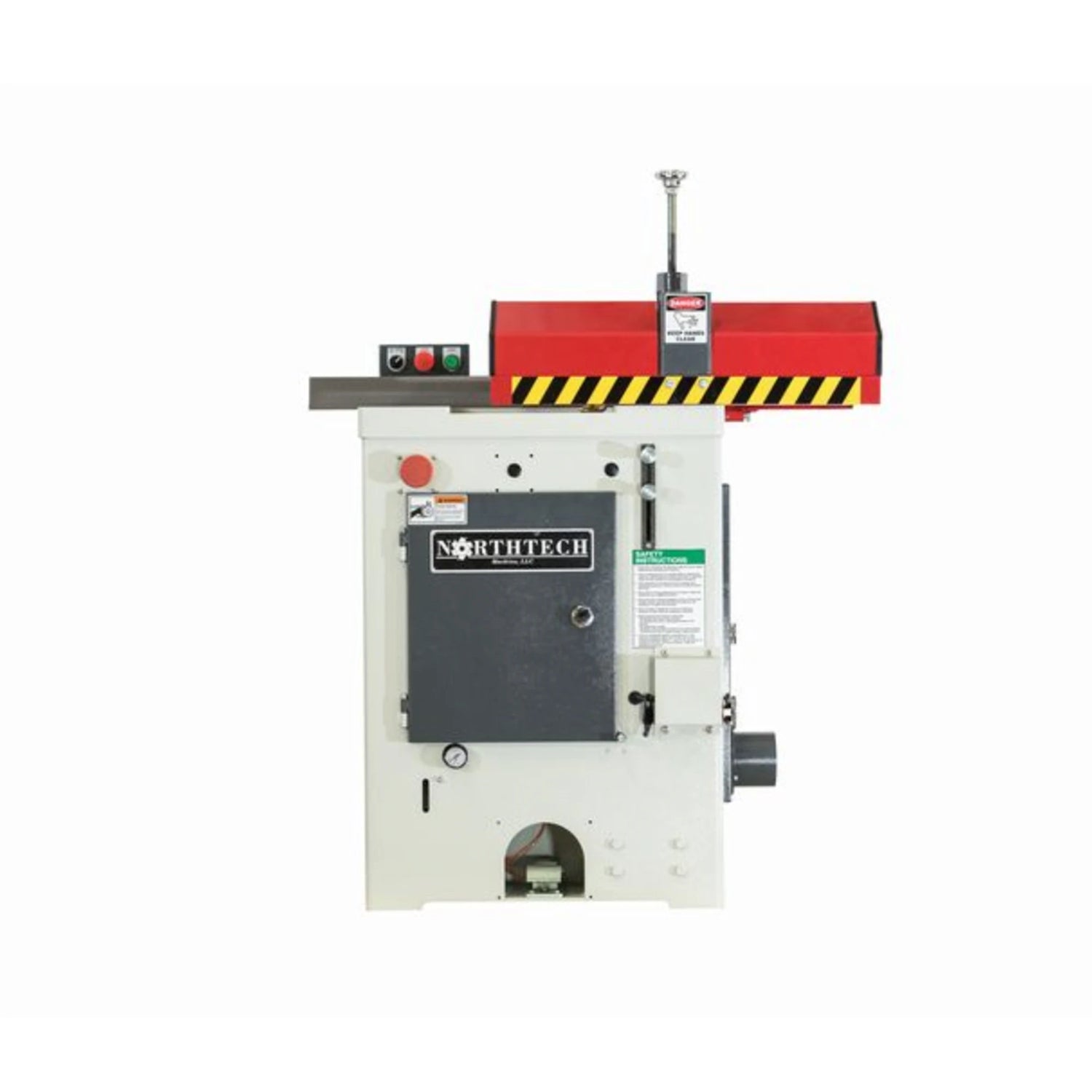

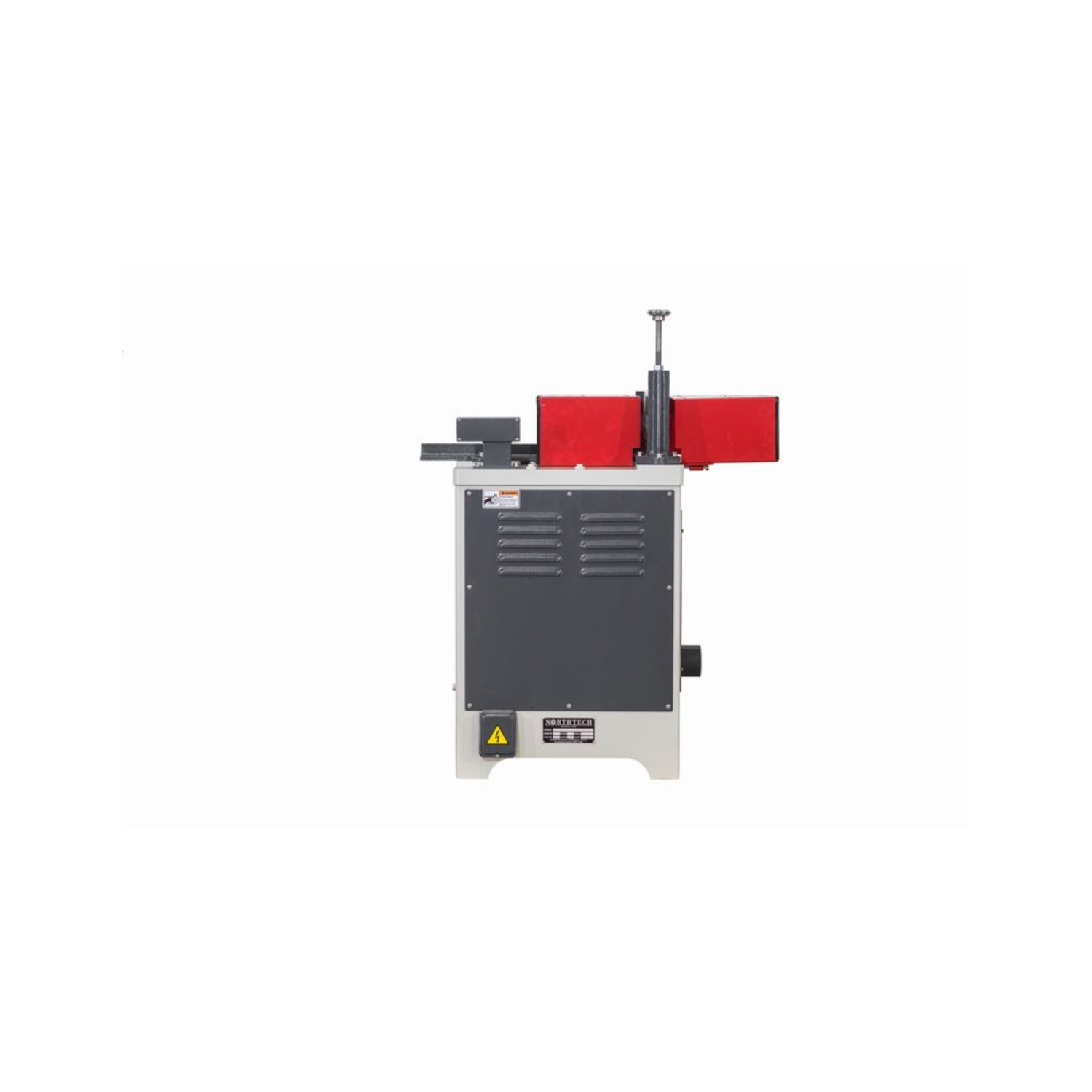

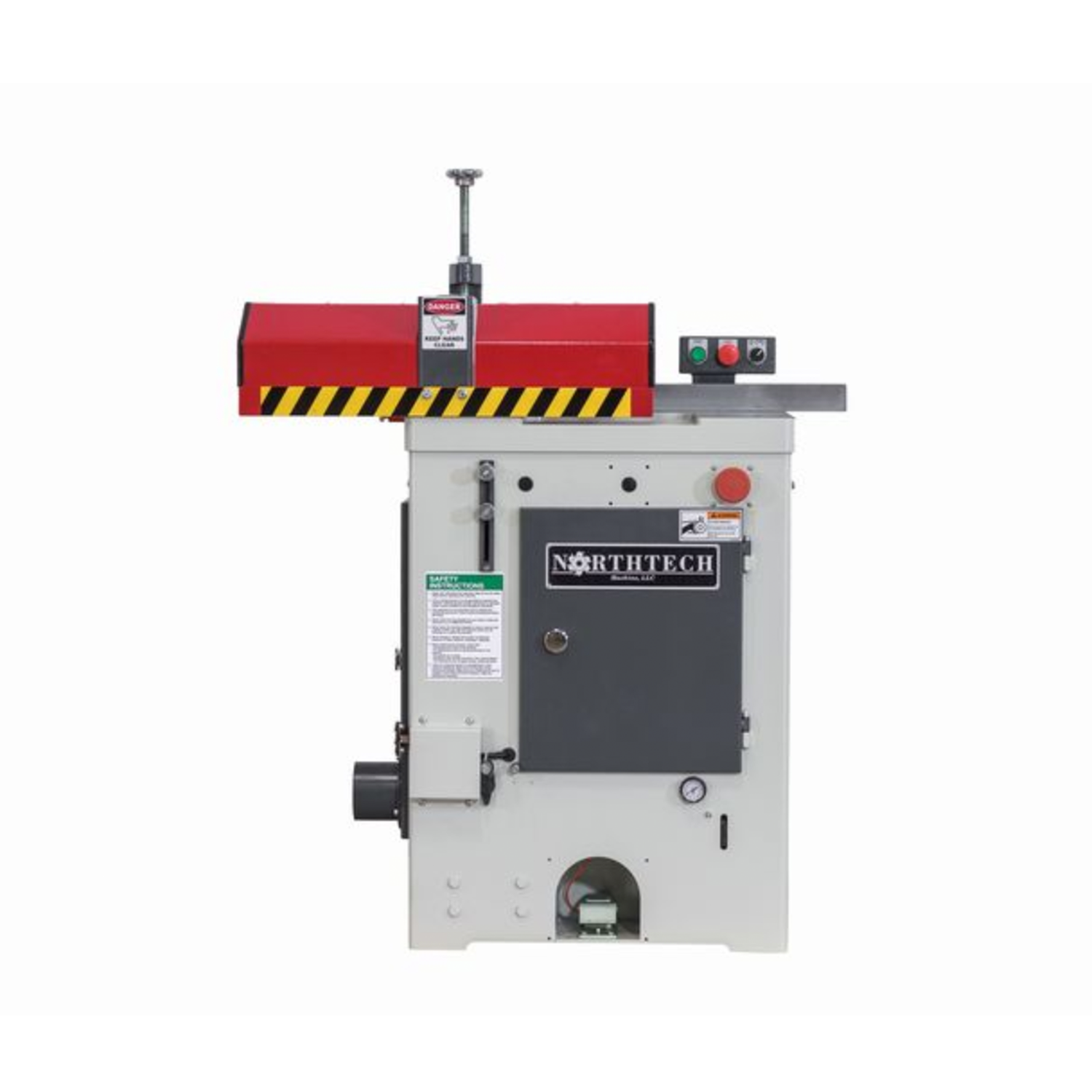

NorthTech Up Cut Saw NT CS20L-1034
-
FEATURES

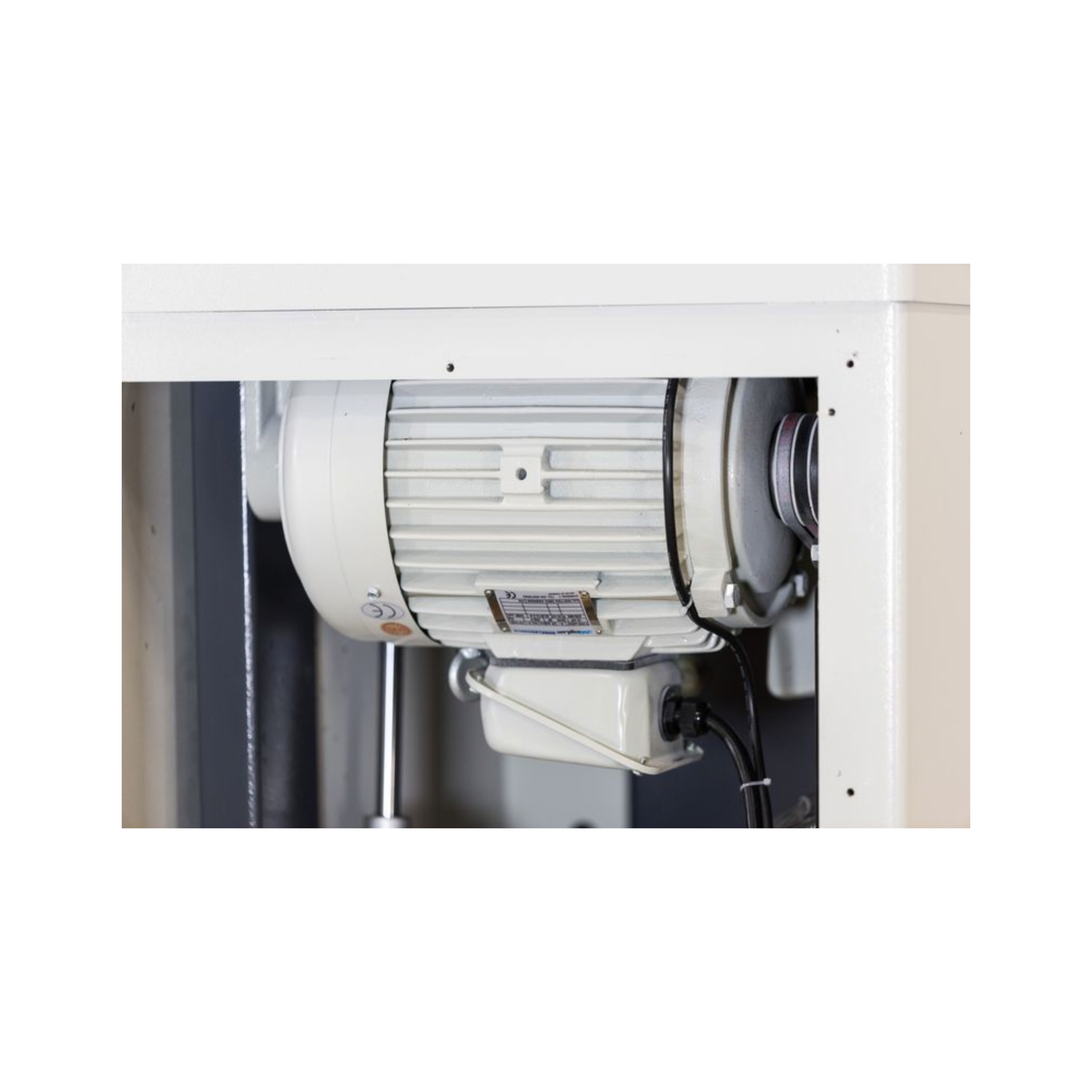

• 10HP motor, 3PH 460V with 24V magnetic controls
• 20” Tungsten Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatic
• Quick access on front of the machine to adjust blade stroke.
• Safety interlock for blade access
• Table size: 20” x 26”
• 2700 RPM
• Net / Gross weight: 788 lbs. / 874 lbs.
• Packing dimensions: (L) 30" x (W) 35" x (H) 51"
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
-
CUT CAPACITY
• Cut capacity with Factory Fence: 1" x 14.5", 2" x 14", 3" x 13", 4" x 12", 5" x 11"
• Cut capacity without Factory Fence: 1" x 15.5", 2" x 15-1/8", 3" x 14-3/8", 4" x 13.5", 5-3/4" x 9-1/2"
-
SPECS
• = Factory
• Main Motor Hp. = 10 hp.
• Voltage/ Freq. = 460 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 12 Amps
• Electronics = UL Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Pass-Line = 36''
• Cut Envelope = 1'' x 15-1/2'', 5-3/4'' x 9-1/
• Max. Width = 17-1/4''
• Max. Thickness = 5-7/8''
• Arbor Rpm = 2700 Rpm
• Blade Size = 20'' Tungsten Carbide Tipped
• No. of Teeth = 120 Tooth
• Tooth Spacing = 1/2''
• Blade Kerf = .141''
• Dust Collection = (1) 4'' @ 450 CFM
• Arbor Diameter = 1'' Arbor
• Cycles/Minute = 40 Cuts Per Minute
• Hold Down Style = T Clamp
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 3/8'' Supply Line @ 90 Psi
• Emergency Stop = Push Button
• Safety Feature = Safety Interlock Switch
• Guarding = High Visibility Guarding
• Operation Style = Pneumatic Foot Pedal

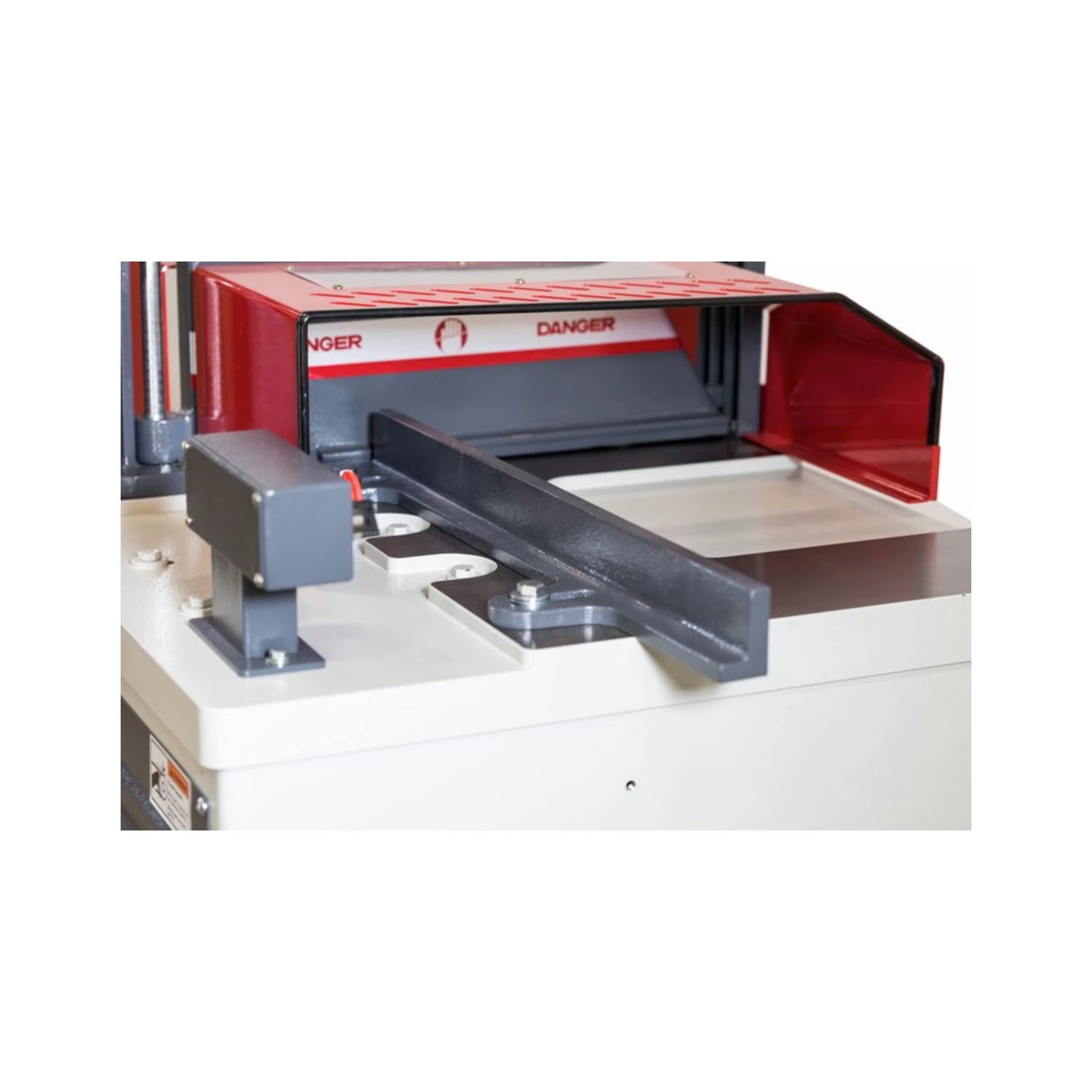

• Fence Type = Adjustable Fence
• Fence Dims. = 2" x 25''
• Worktable Dims. = 21-1/2'' x 67''
• Table Const. = Cast Iron
• Decible Rating = 75 dB
• Net Weight = 788 Lbs.
• Gross Weight = 874 Lbs.
• Machine Dims. = 42'' x 34'' x 54-1/2''
• Packaging Dims = 35'' x 30'' x 51''
ITEM ID: 3502
