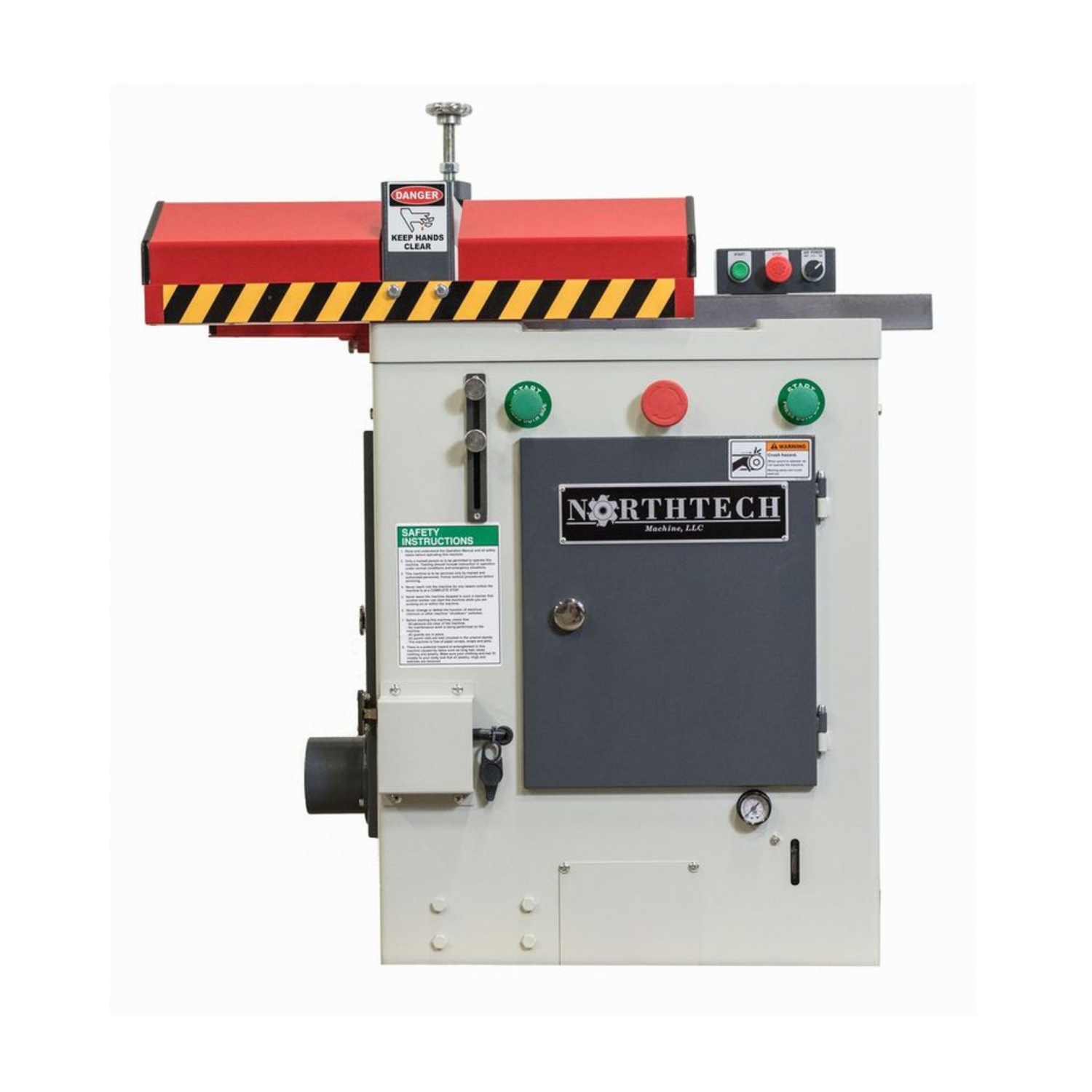

NorthTech Up Cut Saw CS18LPBA-1032

SKU NORTHTECH-UP-CUT-SAW-CS18LPBA-1032

NorthTech Up Cut Saw NT CS18LPBA-1032

  • PRODUCT DIMENSIONS

    • Max cutting capacity: 1" x 13-1/2", 2" x 12", 3" x 11", 4" x 10"

  • FEATURES

    • 10HP motor, 3PH 230V with 24V magnetic controls

    • 18” 120T Carbide tipped blade included

    • 1” Saw arbor diameter

    • Cycle operation: Pneumatic

    • Table size: 26” x 27.25”

    • Quick access on front of the machine to adjust blade stroke.

    • Dust requirements: (1) 4" dust port requiring 450 CFM at point of extraction

    • Net weight: 730 lbs.

    • Gross weight: 890 lbs.

    • Packing dimensions: (L) 33" x (W) 33" x (H) 46"

    • (1) Tool box and manual

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start up.

  • OPTIONS

    • 8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops

    • 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops

    • Custom infeed/outfeed rollers up to 40’

    • 18" x 80T carbide tipped blade

    • 18” x 100T carbide tipped blade

    • 18” x 120T carbide tipped blade

    • (1) Gravity flip stop

    • 460V 3Ø electrics

    • Safety interlock for blade access

    • Double palm button actuation in place of foot pedal

    • Rigid stop

  • SPECS

    • = N09

    • Main Motor Hp. = 10 hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 24 Amps

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 24 Volt Control Voltage

    • Cut Envelope = 1'' x 13'' 2'' x 12'' 4'' x

    • Min. Length = 14'' from Blade to Guard Edge

    • Max. Width = 1'' x 13''

    • Max. Thickness = 5''

    • Arbor Rpm = 3600 Rpm

    • Blade Size = 18'' Tungsten Carbide Tipped

    • No. of Teeth = 120 Tooth

    • Tooth Spacing = 15/32 In.

    • Blade Kerf = .135 In.

    • Dust Collection = 4'' 450 CFM

    • Dust Port Out = 4'' Bottom

    • Arbor Diameter = 1''

    • Cycles/Minute = 45 Cuts Per Minute

    • Hold Down Style = T Clamp

    • FLR Included = Filter, Lubricator, Regulator

    • Recommended CFM = 480 nl/min

    • Emergency Stop = Push Button

    • Safety Feature = Safety Interlock Switch

    • Guarding = High Visibility Guarding

    • Operation Style = Pneumatic Foot Pedal

    • Fence Type = Adjustable Fence

    • Fence Dims. = 2" x 25''

    • Adjust. Stroke = 2-3/4'' Adj. on Arbor Stroke

    • Frame Const. = 1/4'' Steel Construction

    • Worktable Dims. = 26'' x 27-1/4''

    • Table Const. = Machined Steel

    • Decible Rating = 78 dB

    • Net Weight = 730 Lbs.

    • Gross Weight = 890 Lbs.

    • Machine Dims. = 26'' x 27-1/4'' x 49-1/2''

    • Packaging Dims = 40'' x 48'' x 55''

ITEM ID: 1079
