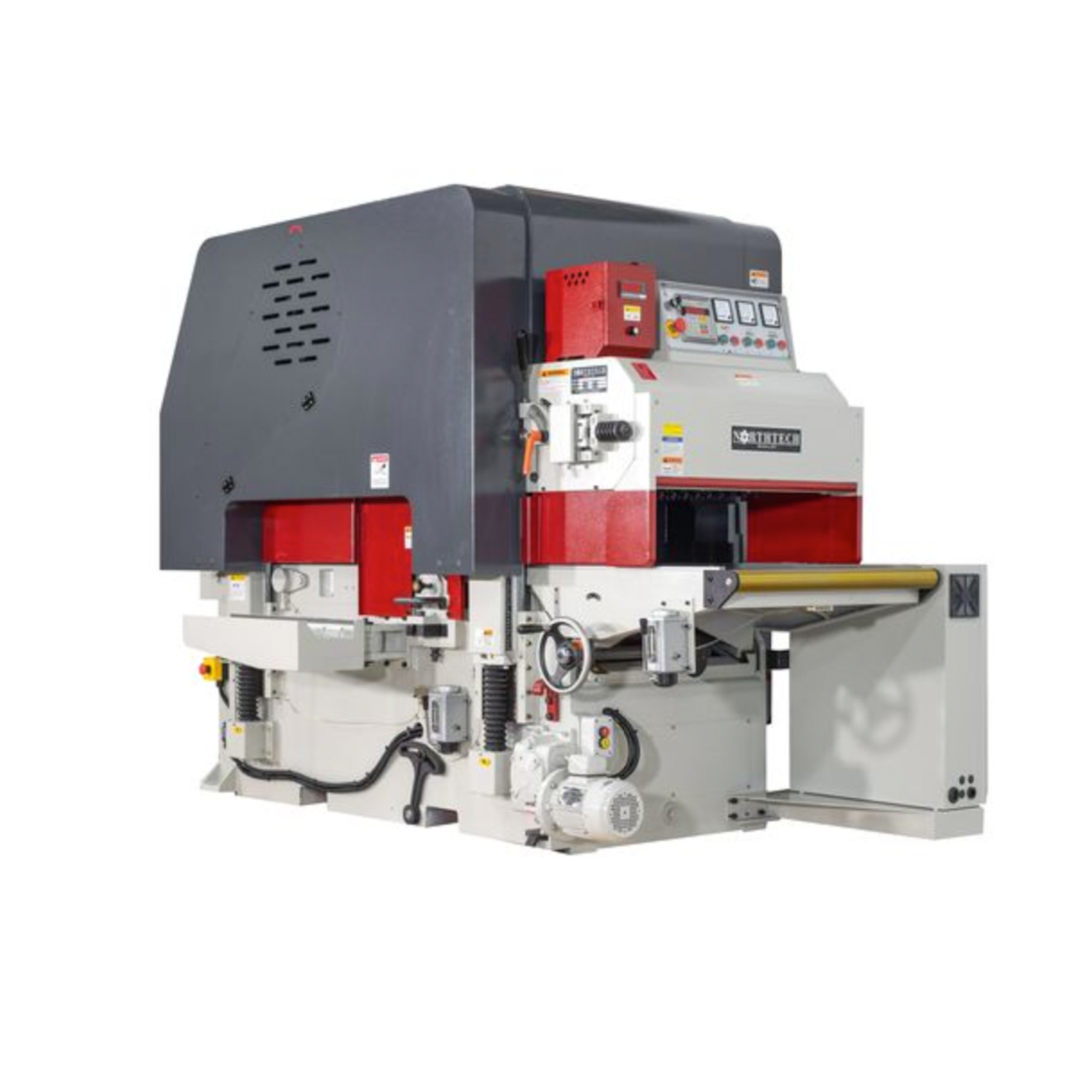

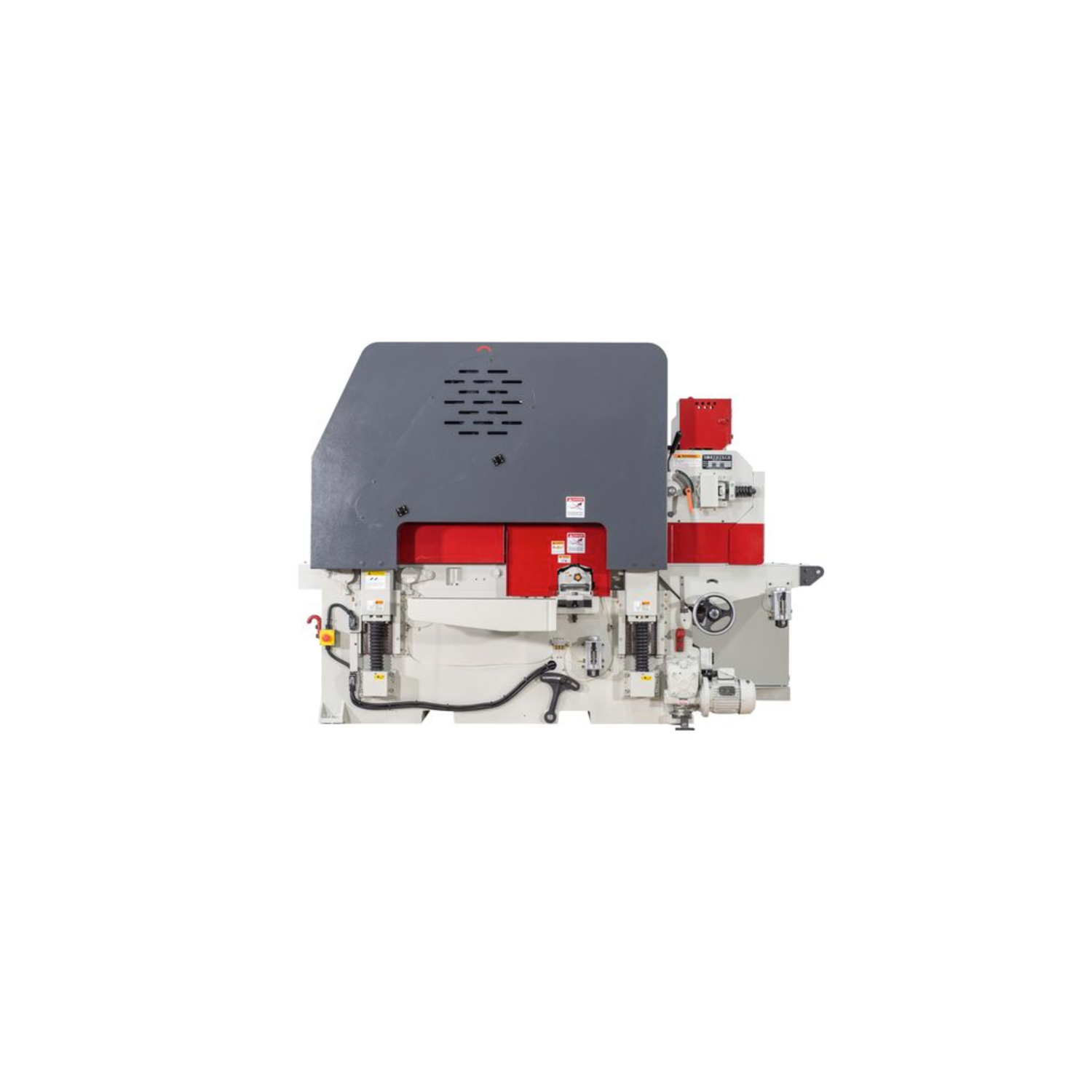

MODEL Double Surface Planer NT 760XL
SPECS
- Top Head Hp. = 40 Hp.
- Bottom Head Hp. = 30 Hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 190 Amps
- Feed Hp. = 5 Hp.
- Feed System = Carpet Feed / Powered Rollers
- Drive System = Gear Box Chain Drive
- Feed Speed = 25 - 70 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 1 Hp.
- Elevation Style = GTM-525-A Controller
- Elevation Sys. = (4) Post Jack Screw
- Total Hp. = 76 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 110 Volt
- Programmable = Elevation
- Operator Panel = Fixed
- Pass-Line = 32''
- Min. Length = 12-1/2''
- Min. Width = 2"
- Max. Width = 29-15/16''
- Min. Thickness = .396''
- Max. Thickness = 8''
- Cutter Head RPM = 5750 Rpm
- Head Type = Dynamically Balanced Helical Head
- Cutter Head Dim = 5'' x 30''
- Cut Head Matl. = Alloy Steel
- Rows of Cutters = 6 Rows
- No. of Inserts = 114 Top 114 Bottom
- Insert Size = 30 x 12 x 2.5 mm
- No. of Heads = 2
- Dust Collection = (2) 8'' 3488 Total CFM
- Digital Display = Elevation and Feed Speed
- Powered Rollers = (2) Top (2) Bottom
- Idle Rollers = (1) Top (1) Bottom
- Pressure Shoes = (15) 2'' Chip Breakers
- Hold Down Style = Chip Breakers/ Pressure Plate
- No. of Spikes = 1350 Spikes
- Rear E Stop = Push Button
- Guarding = Full Enclosure
- Oiler = (1) Auto (1) Manual Oiler
- Low Oil Warning = Low Oil Shut Off / Warning
- Frame Const. = Cast Construction
- Slip Clutch = Clutch on Chain Drive
- Decible Rating = 77 dB
- Net Weight = 7822 Lbs.
- Gross Weight = 8352 Lbs.
- Machine Dims. = 105'' x 59'' x 75''
- Packaging Dims = 110'' x 58'' x 71
Item ID: 4445
