ISELI SAA Fully Automatic Stellite Tipping Machine for Equipping Saw Teeth

ISELI SAA FULLY AUTOMATIC STELLITE TIPPING MACHINE FOR EQUIPPING SAW TEETH

• HIGHLIGHTS
• TECHNICAL DATA
• OPTIONS
• DOWNLOAD BROCHURE
• VIDEO

• HIGHLIGHTS BNA 100

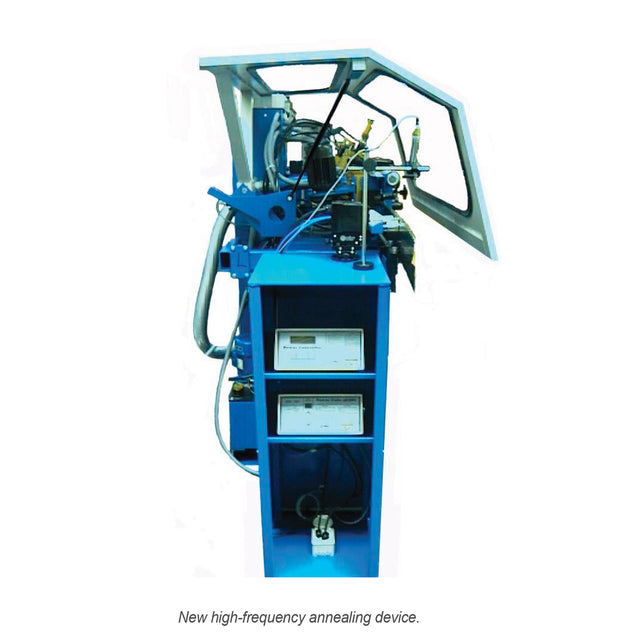

  • Equipment for annealing with a high-frequency generator

  • Operation by touch screen

  • Ventilation for dust exhaust

  • 5 insets for stellite (alternative)

  • 2 clamping jaws for formed-stellite

  • Central height adjustment for saw blades

  • 1 set of Tools

• TECHNICAL DATA 100

  • Blade thickness: 0,8 - 3,2 mm

  BAND SAW

  • Tooth pitch: 13 - 115 mm

  • Blade length standard: from 5'500 mm

  • Blade length optional: from 4'700 mm

  • Blade width standard: 80 - 360 mm (70 mm bis Zahngrund)

  CIRCLE SAW

  • Diameter: Ø 250 – 1200 mm

  • Bore: Ø 22 – 210 mm

  GANG / FRAME SAW

  • Tooth length: up to 1500 mm

  • Blade Width: 80 - 180 mm



• OPTIONS

  • Optical monitoring of annealing temperature

  • Device for control of the welding current

  • Equipment for the band, circular and gang saw blades

  • Equipment for double-toothed (twin cut) saw blades

  • Loading system

• DOWNLOAD BROCHURE

  Download Iseli SAA brochure

• VIDEO
