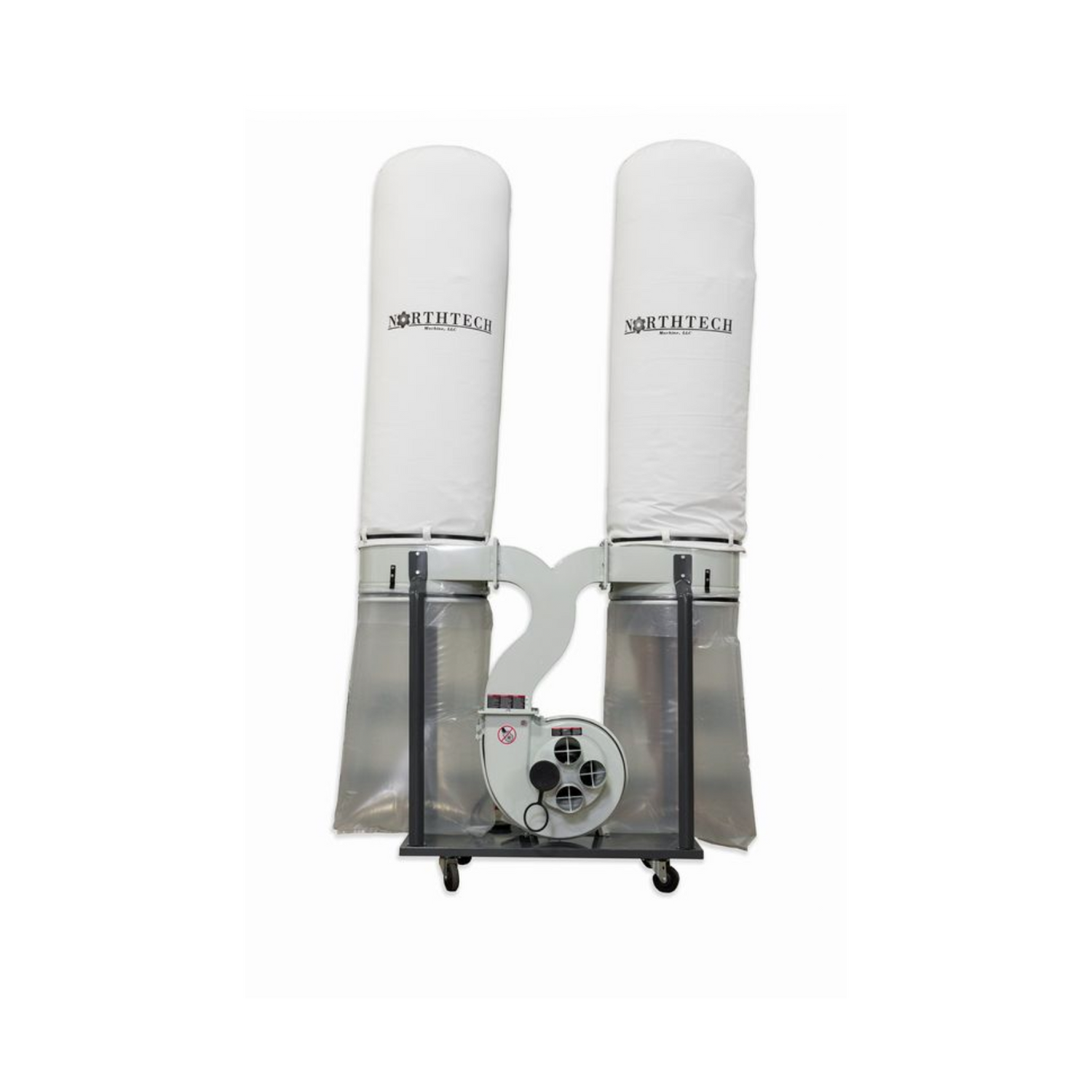

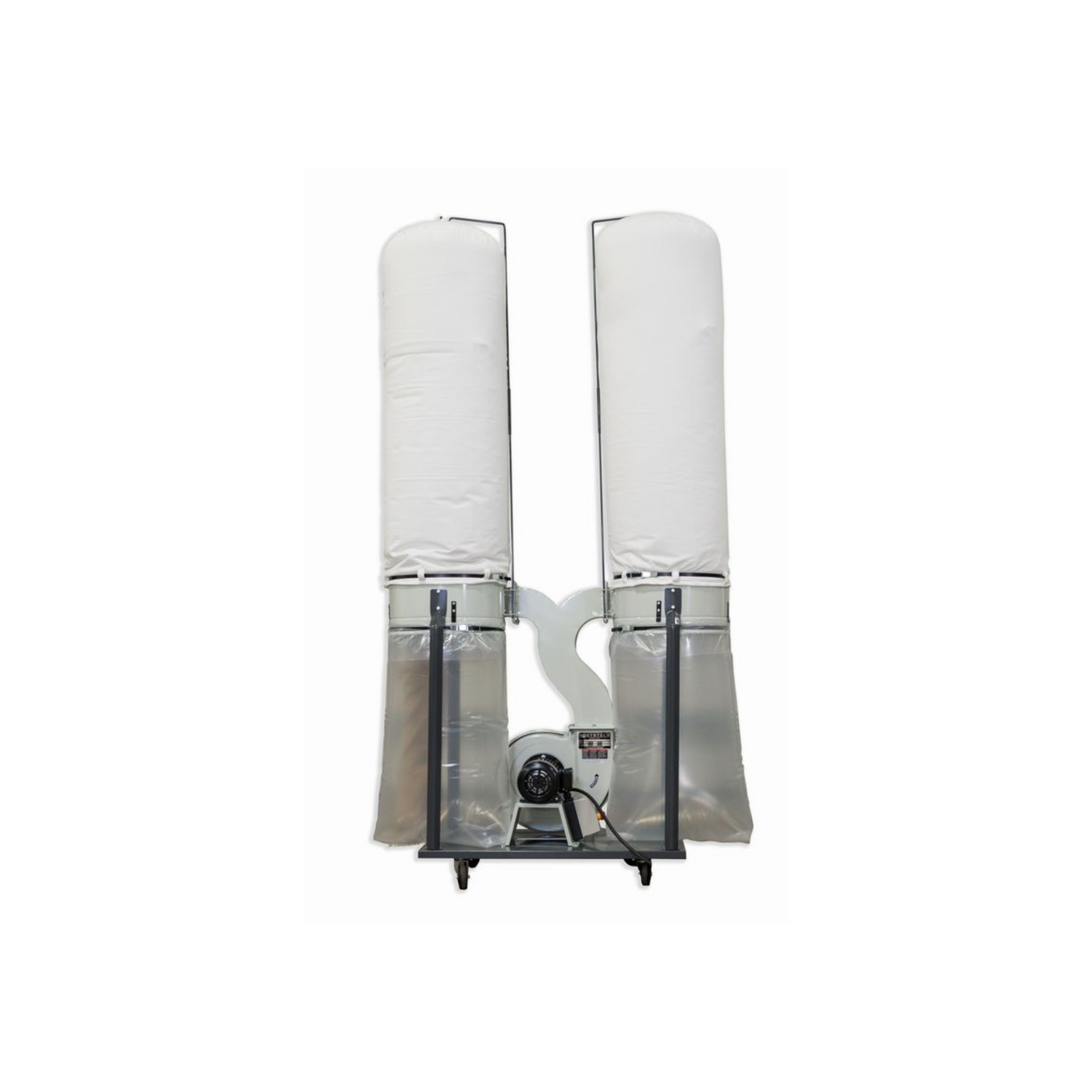

NorthTech Dust Collector NT DC30-312

SKU NORTHTECH-NT-DC30-312

MODEL NT DC30-312

1,300 CFM Dust Collector

FEATURES

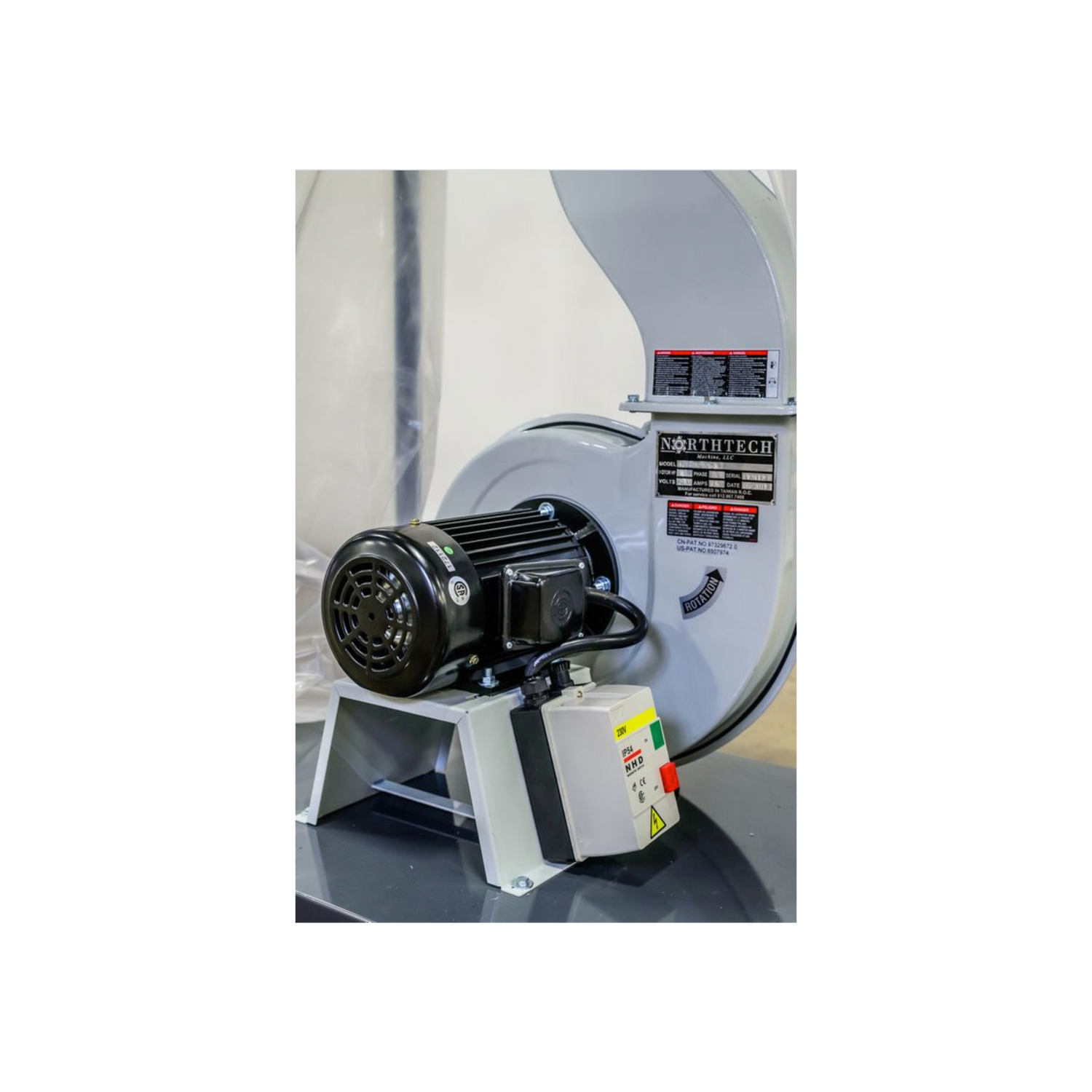

  • 3HP motor, 230V/460V (1 Phase Available)
  • Two top filter polyester bags, 5 micron
  • Two lower collection plastic bag
  • 3'' x 13-1/2" impeller
  • 3100 CFM
  • Dust Exhaust:
  • 8" main; (4) 4" ports
  • Gross weight: 250lbs

SPECS

  • Main Motor Hp. = 3 hp.
  • Direct Drive = Direct Drive
  • Machine Hp. = 3 hp.
  • Voltage/ Freq. = 220 Volt 60 Hz.
  • Phase = 1 Phase
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 220V Control Voltage
  • Dust Port In = (1) 8'' or (4) 4''
  • Dust Port Out = 7'' x 7'' Box
  • Free Air CFM = 3100 CFM
  • Impeller = 3'' x 13-1/2'' Steel Impeller
  • Frame Const. = 1/16'' Steel Construction
  • Mobile Unit = (4) Caster Cart
  • Upper Bags = 31'' x 59''
  • Lower Bags = 31'' x 40''
  • Decibel Rating = 93 dB
  • Net Weight = 187 Lbs.
  • Gross Weight = 250 Lbs.
  • Machine Dims. = 60'' x 29'' x 144''
  • Packaging Dims = 40'' x 48'' x 29''

Item ID: 3515
