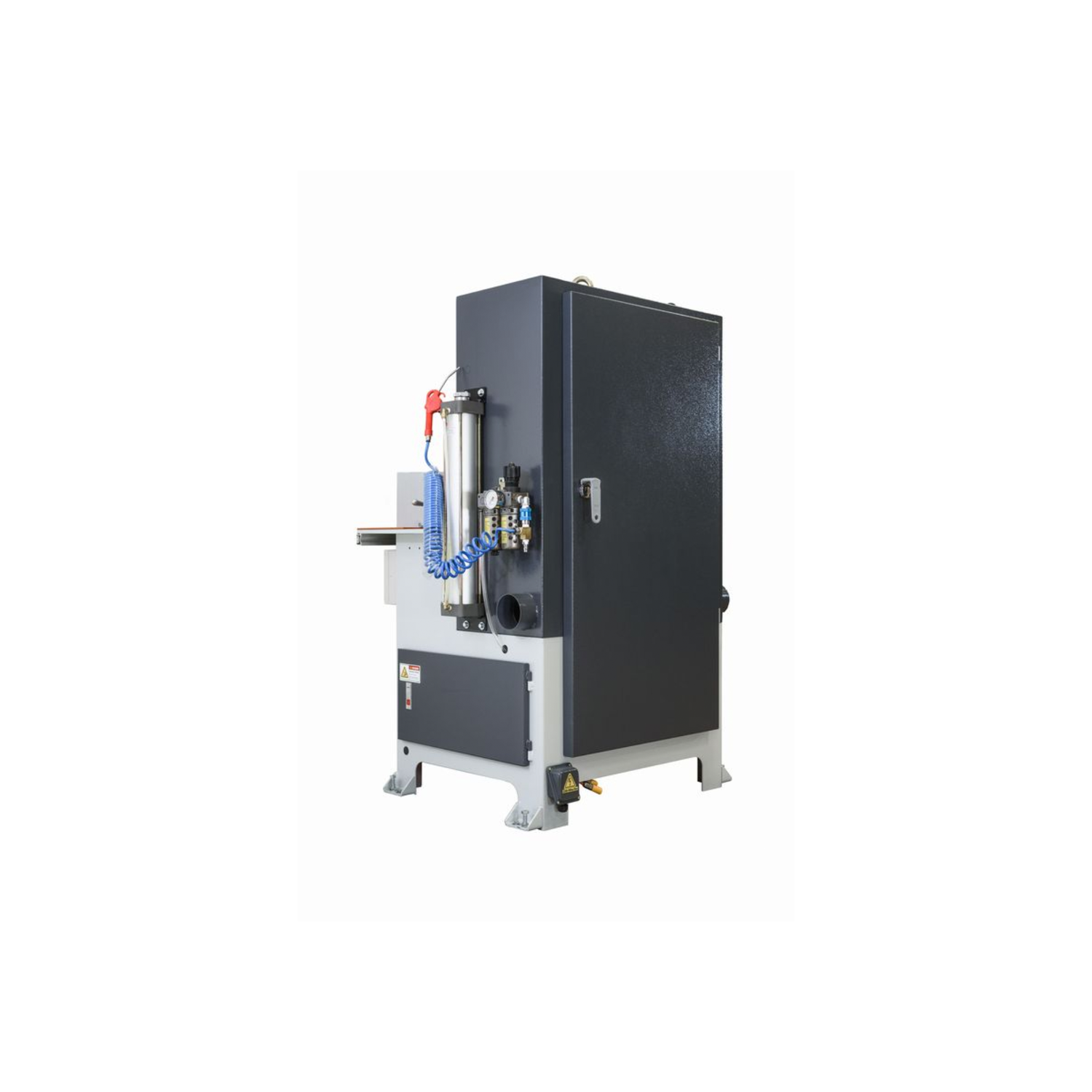

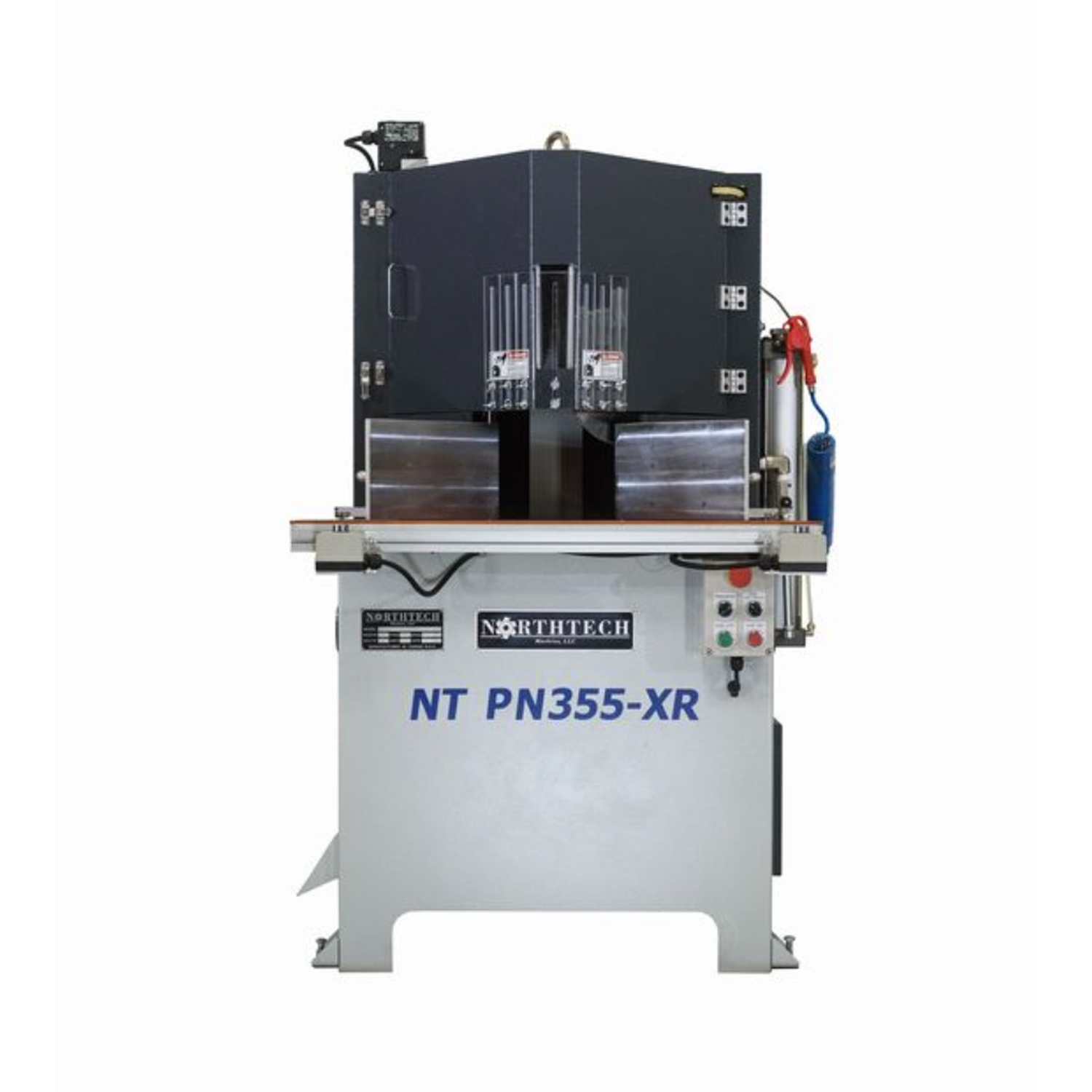

NorthTech Panel Notcher NT PN14-355-XR

SKU NORTHTECH-NOTCHER-NT -N14-355-XR

NorthTech Panel Notcher NT PN14-355-XR

  • DETAILS

    • 90° Notcher

    • Air over hydraulic operation for quick and stable strokes

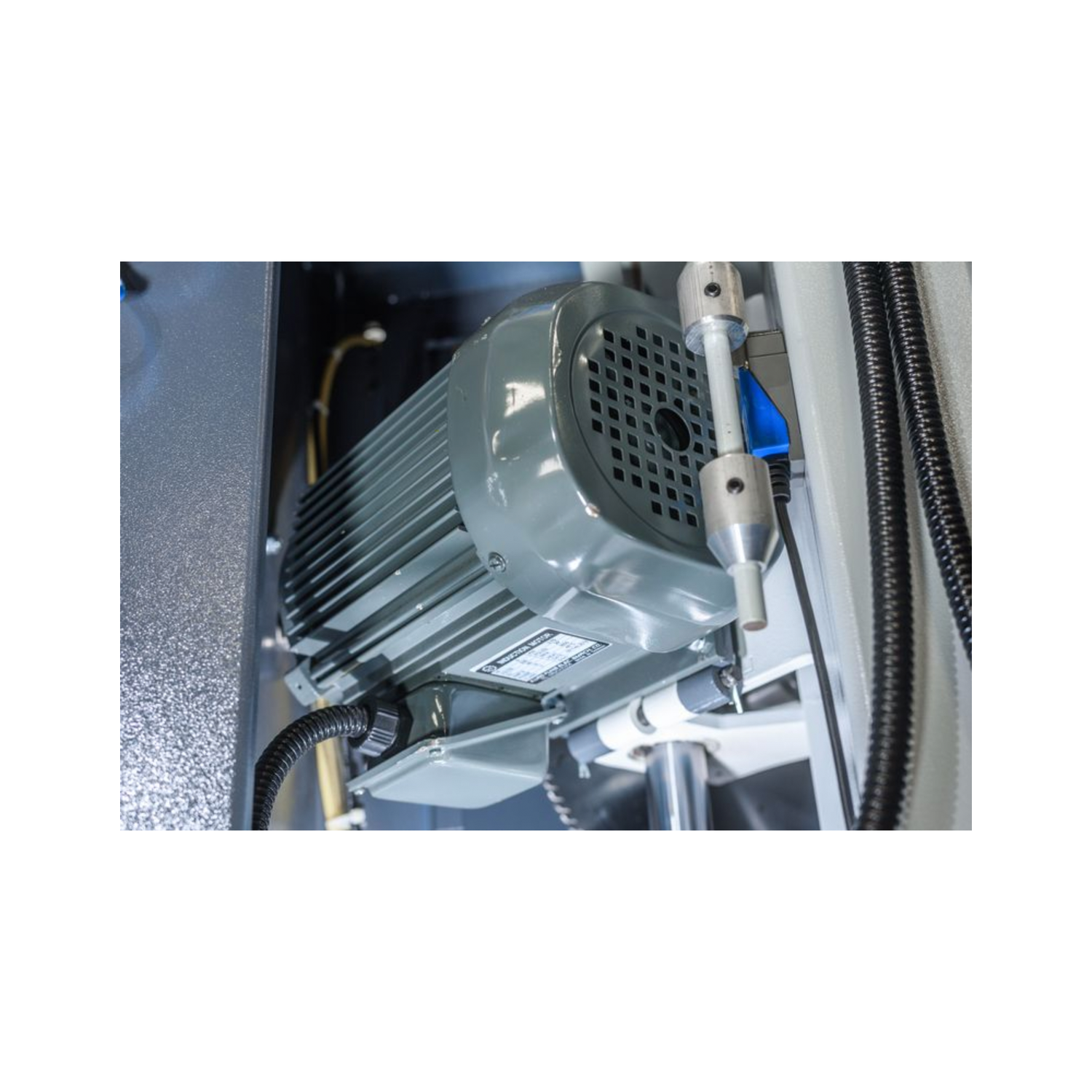

    • (2) 5HP arbor motors

    • Linear guide bearing for repeatable precision

    • 7” stack height

    • 5-1/4” x 5-1/4” cut depth

    • Easy blade adjusts for blade wear compensation

    • Quickly adjustable stroke setting

    • (2) 14” carbide tipped saw blades included

    • (4) Vertical clamps for premium part hold

    • Net weight: 908 lbs.

    • Gross weight: 1102 lbs.

    • Machine dimensions: (L) 39”" x (W) 36" x (H) 63-1/2"

    • Packing dimensions: (L) 48” x (W) 44" x (H) 69"

    • (1) Tool box

    • Warranty is one-year parts

    • All machines are tested stateside prior to shipment providing trouble free start up.

  • FEATURES

    • * Inclusive with dual linear guideways and dual support roller bearings

    • Specially designed for cutting tall work pieces

    • Saw blades feed vertically. Maximum height of. cutting is 7''.

    • Two staggered saw blades are perfectly positioned at 45° vertically to reduce work piece waste to a minimum.

    • Saw blades move vertically on two precision shafts, assuring consistent cutting.

    • Compensation for saw blade wear is easy to adjust.

    • Saw blade height Is adjustable for saving time during cycle.

  • SPECS

    • Main Motor Hp. = 5 hp. x 2

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 30 Amps

    • Total Hp. = 10 Hp.

    • Electronics = CE Approved Components

    • Control Voltage = 24 Volt Control Voltage

    • Min. Width = 1-1/8'' x 1-1/8''

    • Max. Width = 5-1/2'' x 5-1/2''

    • Max. Thickness = 7''

    • Arbor Rpm = 3100 Rpm

    • Blade Size = 14'' Tungsten Carbide Tipped

    • No. of Teeth = 120 Tooth

    • Tooth Spacing = 3/8''

    • Blade Kerf = .118 In.

    • Cleaning System = Detail Blow Off Nozzle

    • Vertical Travel = 7''

    • Dust Collection = (2) 4'' @ 900 CFM

    • Arbor Diameter = 1''<

    • Cycles/Minute = 5 Cycles Per Minute

    • Hold Down Style = Dual Pneumatic Clamps

    • Recommended CFM = 1/4'' Line @ 90 PSI

    • Waste Discharge = Side Chute

    • Emergency Stop = (1) Push Button (2) Bars

    • Safety Feature = Safety Interlock Switch

    • Guarding = High Visibility Guarding

    • Operation Style = Dual Push Button

    • Fence Type = Adjustable Fence

    • Fence Dims. = 7-1/4'' x 12-1/2''

    • Frame Const. = 3/16'' Steel Construction

    • Worktable Dims. = 16-1/4'' x 37-1/2''

    • Table Const. = Steel

    • Measure Meth. = Lineal Scale on Fence

    • Decible Rating = 70 dB

    • Net Weight = 908 lbs.

    • Gross Weight = 1102 lbs.

    • Machine Dims. = 39-1/2'' x 36'' x 63-1/2''

    • Packaging Dims = 48'' x 44'' x 69''

ITEM ID: 1278
