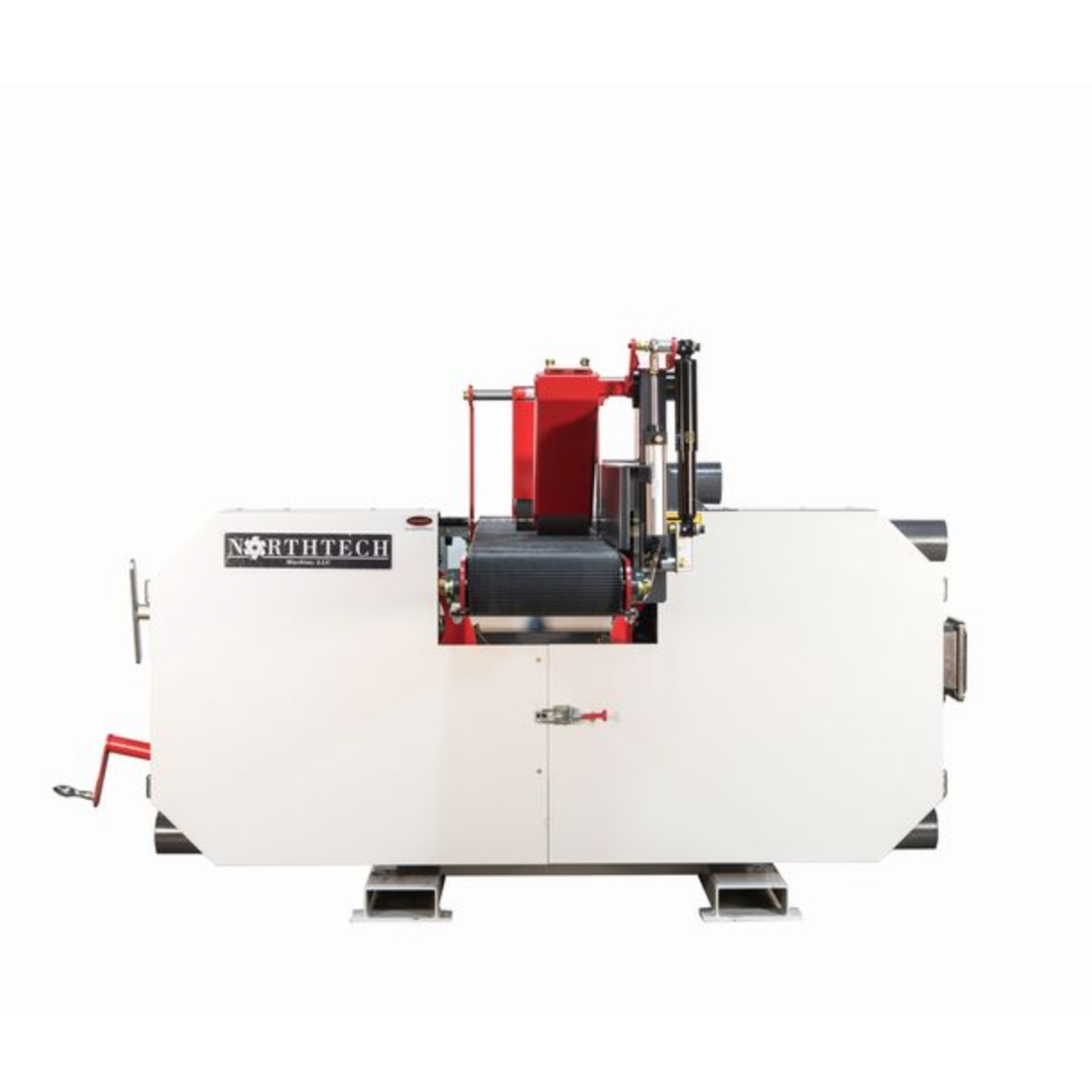

NorthTech Horizontal Bandsaw HBR-12E

NorthTech Horizontal Bandsaw NT HBR-12E

FEATURES

• Maximum working size: 11-3/4” W x 11” H using hold downs
• Minimum thickness of part: 3/16”
• Maximum cutting height: 11”
• 70 durometer (L) 216” x (W) 11-1/4”
• 3 Ply heavy duty industrial grade conveyor for long life
• Saw blade size: 1” or 1 ¼” x 168”
• Blade speed: 6850fpm

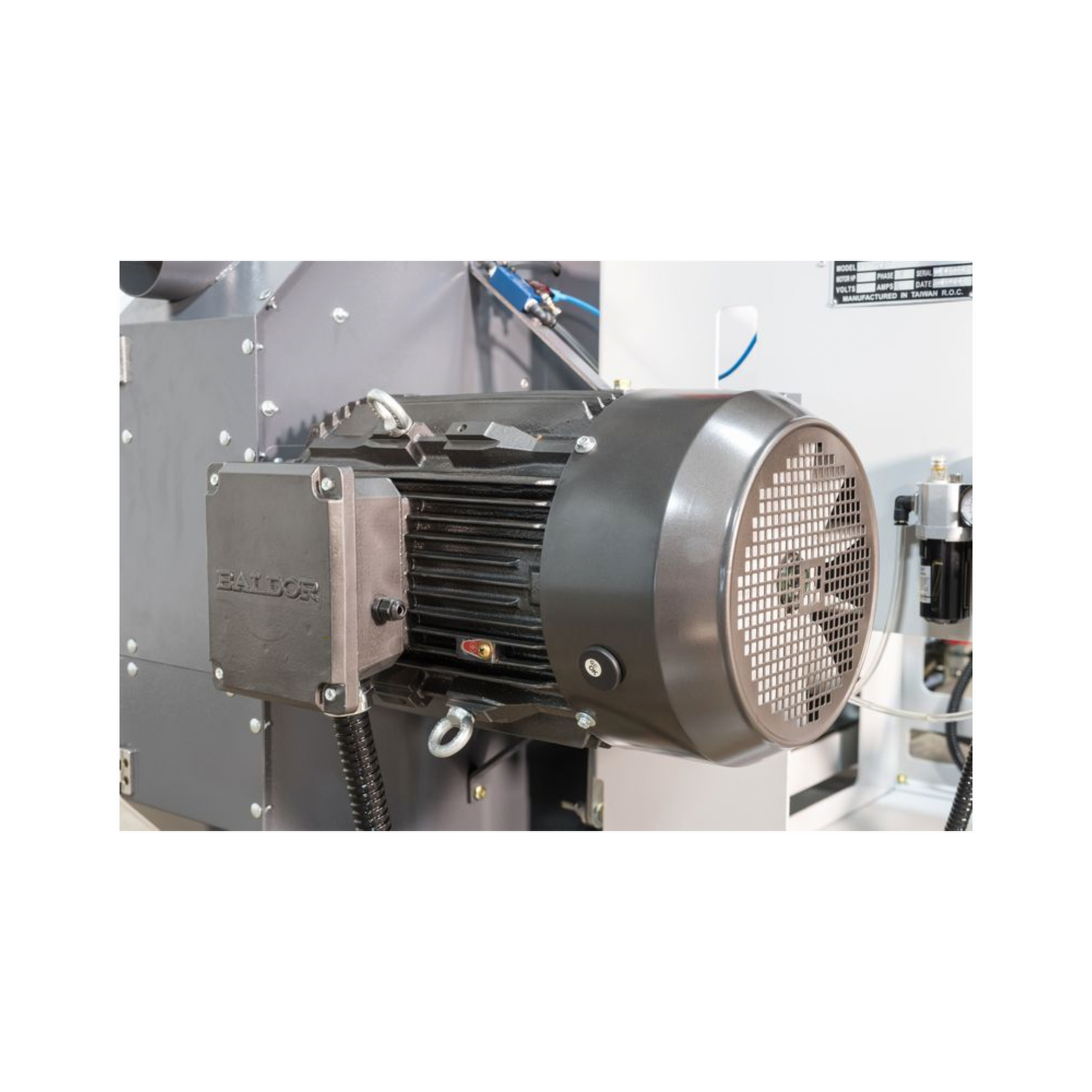

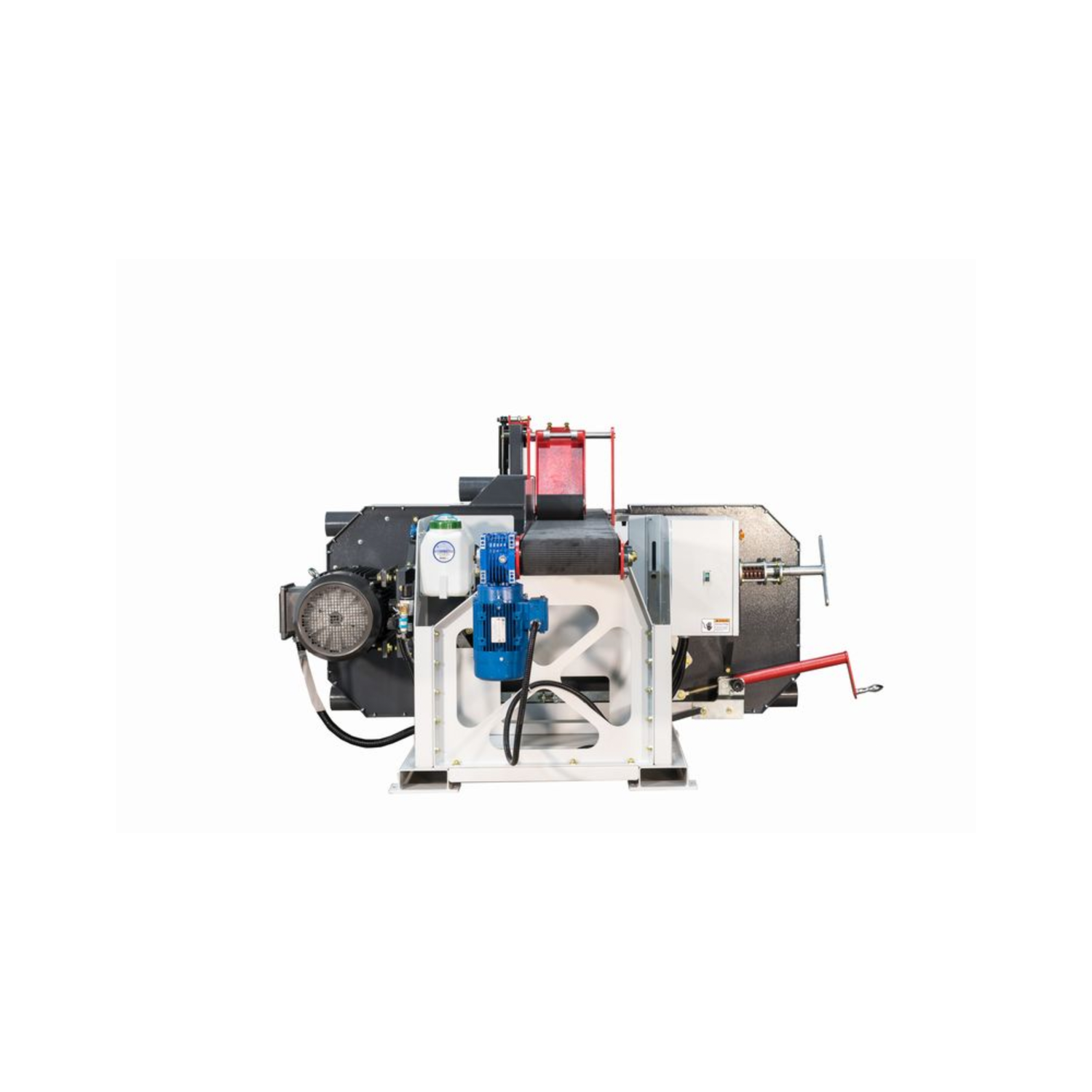

• Dual voltage 20HP Baldor motor is UL / CE approved
• 2HP feed motor
• VFD drive control of 0 - 97fpm is mated to a precision gear box drive for optimum power delivery
• Frame is constructed of CNC machined steel
• 1” x 28” special heat treated steel saw wheels, CNC ground, and balanced for vibration-free performance.
• (2) Oversized precision bearings on each saw wheel shaft ensure long term cutting accuracy
• (4) 4” dust ports requiring 436 CFM at each point of extraction
• Precision blade guide system with steel inserts ensures consistent quality of cut.
• Outside guide on a spring tensioned lineal rail keeping guide next to each part
• Air cylinder tensioned infeed roller with heavy duty spring control.
• Adjustable weighted outfeed roller securely holds part to the belt.
• Mechanical spring blade tensioning
• Electrical controls are neatly arranged into a dust proof cabinet
• Manual raise bed
• Machine dimensions (LxWxH) / Weight: 109” x 80” x 53” / 1,916lbs
• Machine Packing (LxWxH) / Weight: 87” x 46” x 45” / 1,690lbs
• Conveyor Table Packing (LxWxH) / Weight: 116” x 28” x 36” / 608lbs
• Tool box and (1) year parts warranty included
• NorthTech offers a full line of dust collectors for any application.
• All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble free start up.

SPECS

• Main Motor Hp. = 20 hp.
• Voltage/ Freq. = 208 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 70.3 Amps
• Feed Hp. = 2 Hp.
• Feed System = 11-1/4'' Rubber Feed Mat
• Drive System = 2 Hp. Motor / Gear Box
• Feed Speed = 0 - 95 FPM
• Variable Speed = Inverter Controlled
• Elevation Style = Manual Crank Adjustment
• Elevation Sys. = Scirror Lift
• Total Hp. = 22 Hp.
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 220V Control Voltage
• Operator Panel = Fixed
• Pass-Line = 35-3/8''
• Cut Envelope = 11-3/4'' W x 11'' H
• Min. Length = 12''
• Min. Width = 3/4''
• Max. Width = 11-3/4''
• Min. Thickness = 3/16"
• Max. Thickness = 11''
• Blade Size = 1'' x 168''
• No. of Teeth = 192 Tooth
• Tooth Spacing = 7/8''
• Blade Kerf = 1mm
• Blade Speed = 6850 FPM
• Cleaning System = Scraper / Felt Pad
• Tracking Style = Manual Adjustment
• Tension Style = Manual Adjustment
• Vertical Travel = 4-5/8''
• Dust Collection = (4) 4'' @ 1744 CFM
• Hold Down Style = Pneumatic / Gravity
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 1/4'' Line @ 90 PSI
• Emergency Stop = Push Button
• Guarding = Full Cabinet Enclosure
• Oiler = Blade Oil Mister
• Fence Type = Fixed Fence
• Fence Dims. = 6-3/4'' x 34-1/2''
• Blade Guide = Bearing Blade Guide
• Wheel Dims. = 1'' x 28''
• Wheel Construction = Steel Construction
• Frame Const. = Steel Construction
• Table Const. = Steel
• Decible Rating = 75 dB
• Net Weight = 1930 Lbs.
• Gross Weight = 2298 Lbs.
• Machine Dims. = 109'' x 80'' x 53''
• Packaging Dims = 2 Skids

ITEM ID: 4559
