NorthTech | SKU:
NORTHTECH-H-BANDSAW-NT-AW-400PBX

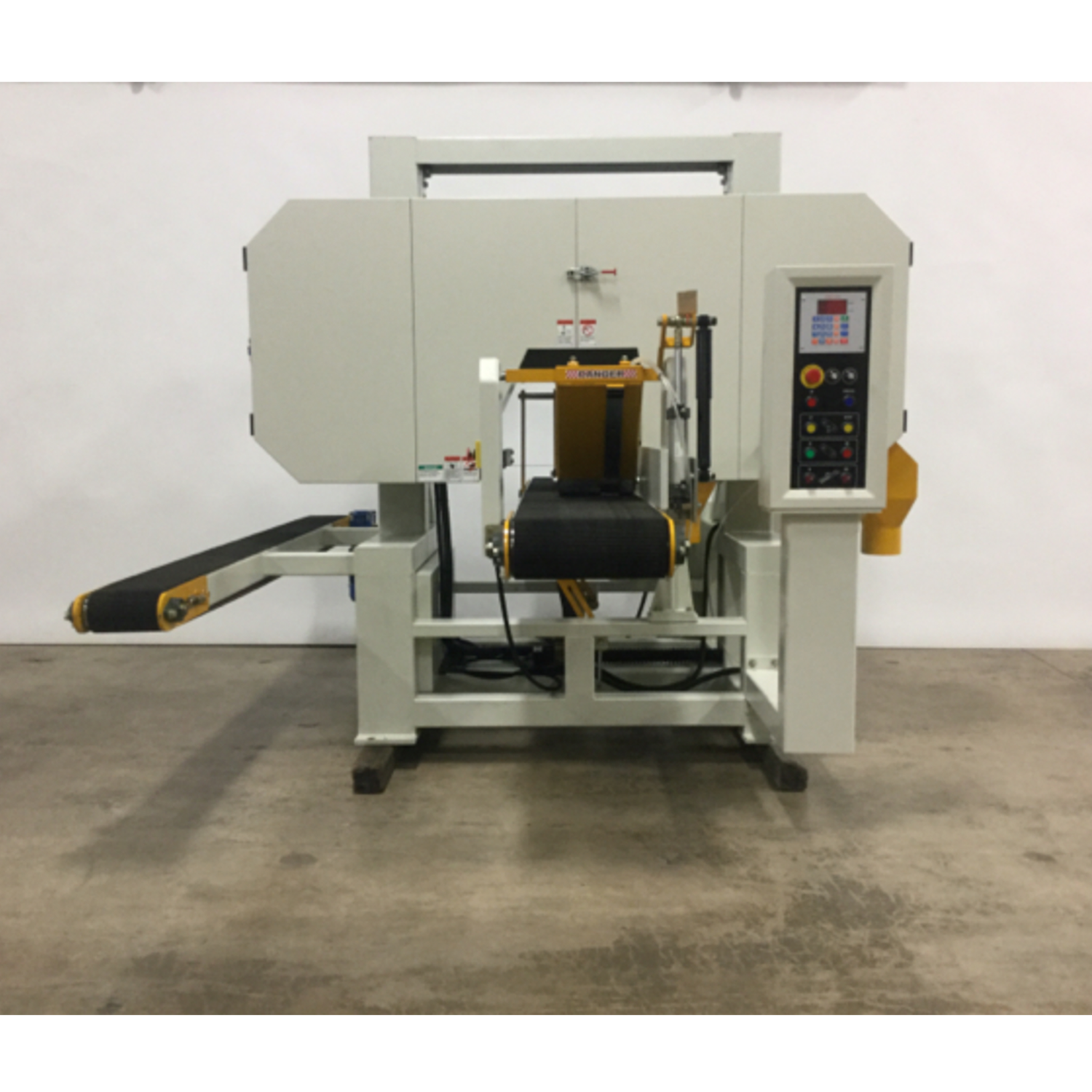

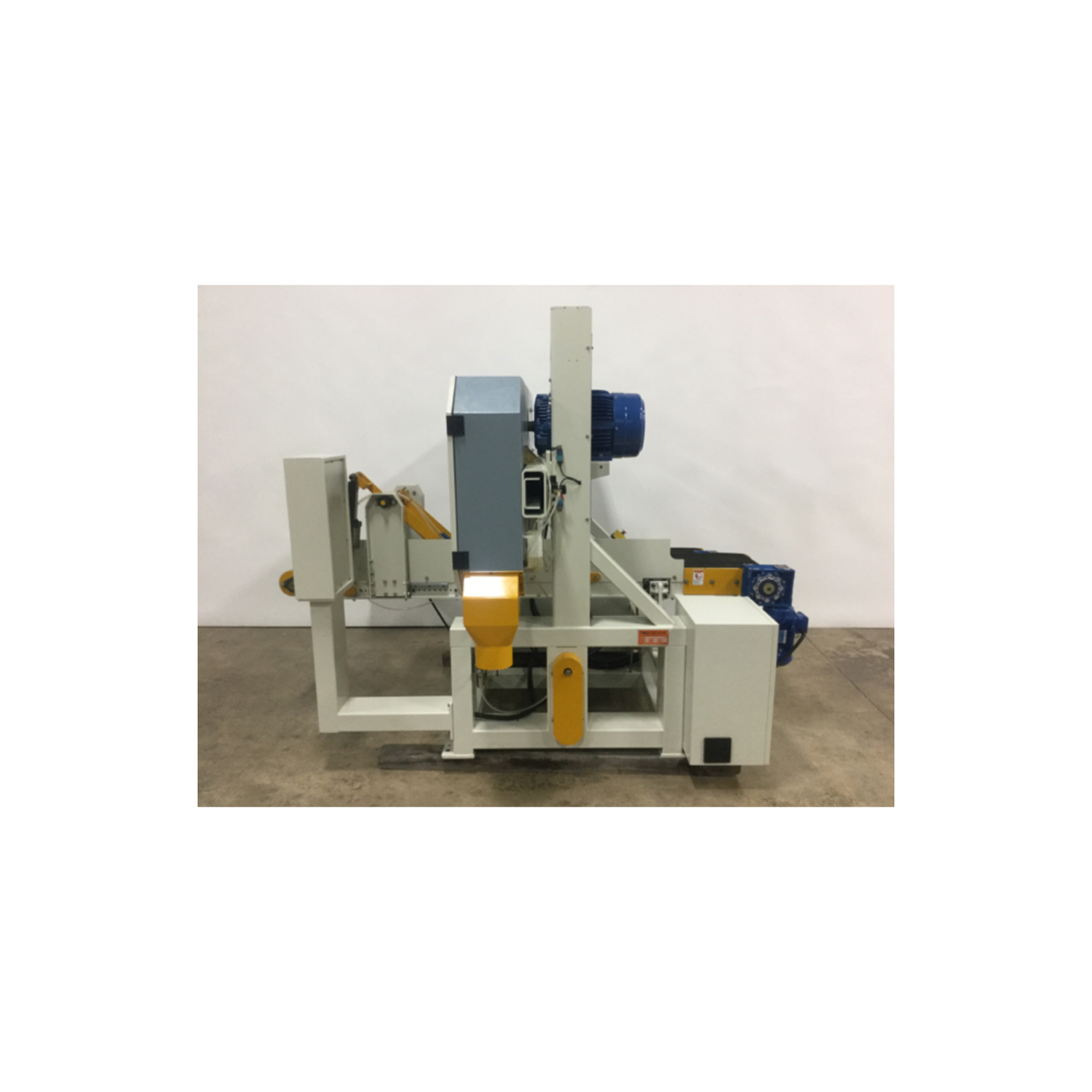

NorthTech Horizontal Bandsaw AW-400PBX
Shipping calculated at checkout.
NorthTech Horizontal Bandsaw AW-400PBX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
NorthTech Horizontal Bandsaw AW-400PBX
$0.00
Unit price
/
Unavailable
Description
Description
SPECS

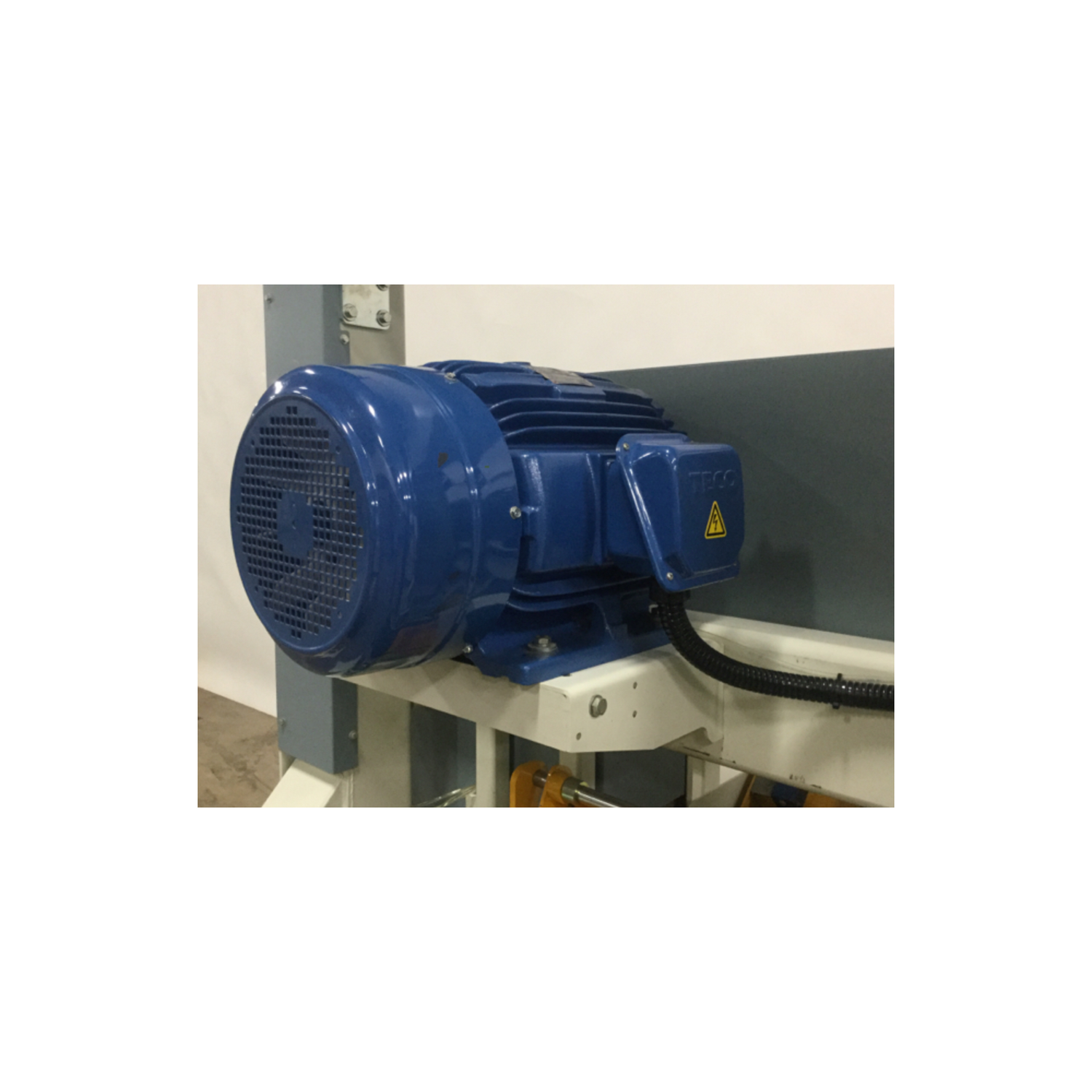

- Main Motor Hp. = 40 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 65 Amps
- Feed Hp. = 3 Hp.
- Feed System = 15-1/4'' x 215-3/8'' Belt
- Drive System = Motor Mated to Gear Box
- Feed Speed = 0 - 120 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 1 Hp.
- Elevation Style = CHPC-535 Elevation Control
- Elevation Sys. = (2) Post Jack Screw
- Total Hp. = 45 Hp.
- Electronics = UL Approved Components
- Control Voltage = 220V Control Voltage
- Min. Length = Individual Feed 20''
- Min. Width = 2"
- Max. Width = 17-1/2''
- Min. Thickness = 1/8''
- Max. Thickness = 10''
- Blade Size = 2'' x 208''
- No. of Teeth = 208
- Tooth Spacing = 1''
- Blade Kerf = .086 In.
- Blade Speed = 4700 - 6750 FPM
- Tracking Style = Manual Adjustment
- Tension Style = Pneumatic / Hydraulic Tension
- Vertical Travel = 1/8'' - 10''
- Dust Collection = (2) 6'' @ 1962 CFM
- Dust Port Out = (2) 6'' Ports
- Digital Display = Elevation
- Conveyor = 15-1/4'' x 215-3/8''
- Hold Down Style = Pneumatic / Gravity
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 1000 CFM @ Extraction Point
- Emergency Stop = Push Button
- Rear E Stop = Push Button
- Guarding = Full Cabinet Enclosure
- Oiler = Blade Oil Mister
- Tiltable = 30 Degree Tilt
- Blade Guide = Steel Blade Guides
- Wheel Dims. = 1-3/4'' x 33-1/2''
- Wheel Construction = Steel Construction
- Frame Const. = 1/4'' Steel Construction
- Worktable Dims. = 15'' x 109''
- Table Const. = Steel
- Return Conveyor = 7-1/4'' x 218'' Belt
- Decible Rating = 80 dB
- Net Weight = 3674
- Gross Weight = 4090 Lbs.
- Machine Dims. = 117'' x 100'' x 88''
- Packaging Dims = 120'' x 102'' x 90''
ITEM ID: 1178
