TurboSawmill Automated Warrior swing-blade Sawmill

$29,900.00
SKU M10-28A
Max Board Size
Engine Options

TURBOSAWMILL AUTOMATED WARRIOR SWING-BLADE SAWMILL

Call Jay (318-266-8091) for inventory and place an order.

  • AUTOMATED WARRIOR SWING-BLADE SAWMILL PRICE

    • M10-28A - 10" x 10" with 30hp IGX800 Honda gas - $29,900 - 4 available

    • M10-15A - 10" x 10" with 15hp/11kw Electric - $35,000

    • M12-28A - 12" x 12" with 30hp IGX800 Honda gas - $35,000 - 3 available

    • M12-25A - 12" x 12" with 25hp Electic - $41,000

  • AUTOMATED WARRIOR SWING-BLADE SAWMILL DESCRIPTION

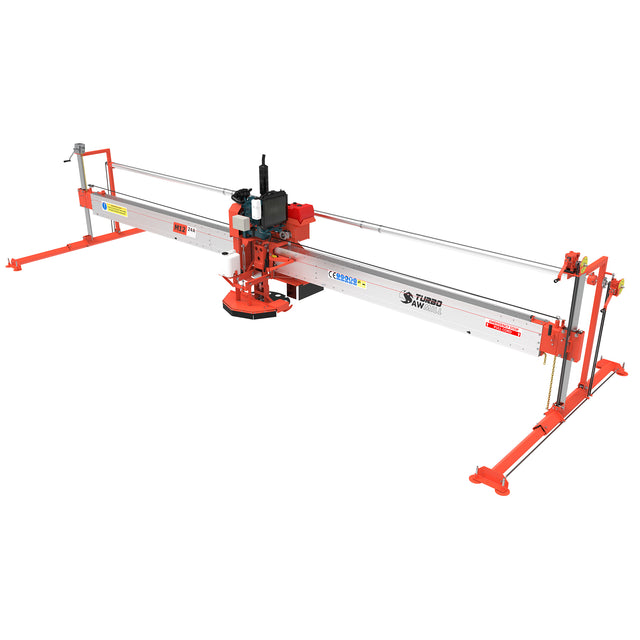

    TurboSawmill's automated swing-blade sawmills are high-tech, easy to use, simple, and portable. The frame is built tough and offers accurate cutting. In addition, TurboSawmill's single-beam design provides unrestricted access to load logs and retrieve your lumber.

    Sizing is performed simultaneously through two reduction gearboxes with large dials for sizing. The gearbox means you will not rely on preset clicks for every movement; they are infinitely variable.

    Although the sizing is all done at one end, you still get the option to adjust for taper at the far end through a hand winch. Changing settings is essential when setting up your sawmill over the log, and there is no need to lift and wedge the log.

    Power the sawmill through the log via a hand lever actuating horizontal and vertical cuts remotely for every board sawn. Once the carriage reaches the other end, it hits a stop, and the blade automatically swings (through a simple gas strut) vertically ready for the return cut.

    The power feed is controlled remotely through a hydrostatic drive, providing a variable speed for all depths of cut.

    The sawmill comes standard with a large ATV dolly system in the middle of your beam, allowing one person to move the mill around quickly. You could also tow it around your farm behind an ATV or similar.

    Another feature that comes standard is the weatherboard attachment device. This accessory allows you to saw tapered boards directly from your log.

    Disassembly (6 assemblies including jockey wheels):

    • Unbolt the long alloy tube.

    • Unbolt the operator end frame. You may use the included jockey wheels to prop up the beam during disassembly. You may also remove the long base skids of each frame to reduce the weight.

    • Roll the carriage off the beam onto a pellet in your truck.

    • To reduce the overall weight of your carriage, you may also remove the guards, blade, and motor.

    • Unbolt the far-end frame.

    • Place the complete beam on your truck’s roof rack or disassemble it into pieces for easier transport.

    NOTE: Some TurboSawmill images are shown with the computer. The computer is not included and is an accessory with additional cost, see below for add-on accessories.

  • AUTOMATED WARRIOR SWING-BLADE SAWMILL INCLUDES

    • Jockey transport wheels.

    • 1 x 5-tooth INSERT blade, tool, extra tips, and sharpener (requires a drill).

    • Power feed.

    • Auto remote blade swing.

    • Operable in both auto and manual mode.

    • 2-year warranty on the mill framework.

    • 3-year warranty on the motor.

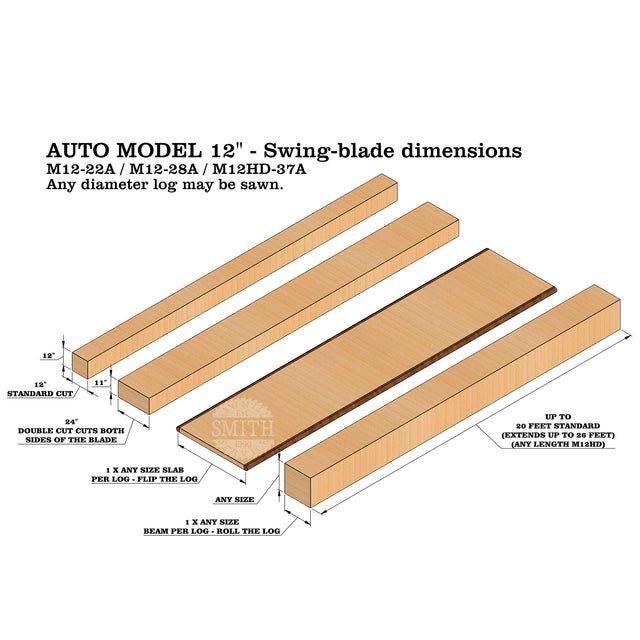

  • SPECS

    AUTOMATED WARRIOR SWING-BLADE SAWMILL SPECS

    • Single-end vertical and horizontal sizing.

    • Log setup taper alignment included.

    • 1.3m (4 ft) diameter log - although any diameter may be sawn.

    • 6m (20 ft) log cut length. Extendable to (26 ft) log cut length.

    Extended much longer with center leg (additional). Double cut capable.
  • AUTOMATED WARRIOR SWING-BLADE SAWMILL VIDEO

Download TurboSawmill Automated Swing Blade Sawmill
