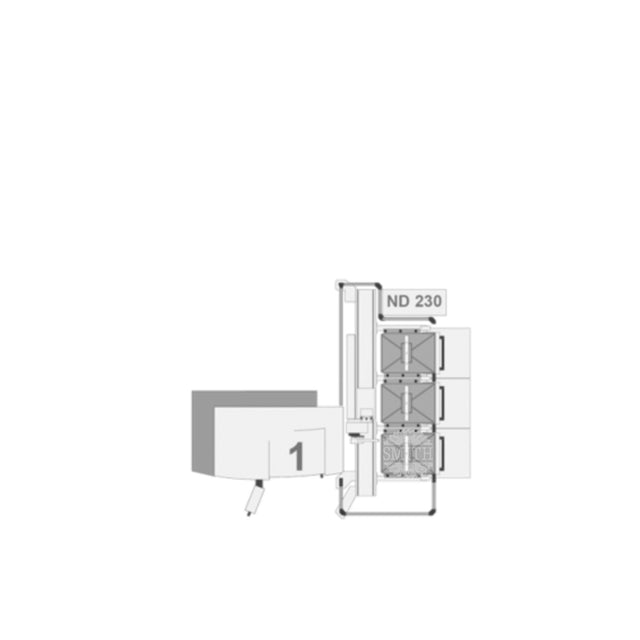

ND 230 ROBOT SYSTEM
-
FOR SHARPENING UP TO 230 CIRCULAR SAW BLADES
For all companies which would like to machine circular saw blades extremely efficiently and productively with low staffing – without compromising the quality of the results – VOLLMER offers the ideal automation solutions. For unstaffed machining of tooth faces, tooth tops and side angles in production and servicing. Around the clock.
With its tried-and-tested ND handling system in combination with convenient data input, you benefit from maximum flexibility.
This symbol indicates that a machine is already ideally set up for connection to a robot system and is therefore the first choice for fully automated complete machining.
With four CNC-controlled axes. With double gripper and three loading carriages. To load a sharpening machine automatically with up to 250 circular saw blades.
Circular saw blade external diameter: 100 to 630 mm
-
VOLLMER ND 230 SPECS
WORKPIECE DATA ND 230
CIRCULAR SAW BLADES Circular saw blades outside diameter 100 - 630 mm WORKPIECE HANDLING Stack height < 300 mm INTERFACES Electrical connected load 1,7 kVA Pneumatic pressure 0,6 - 1 MPa (6 - 10 bar)
