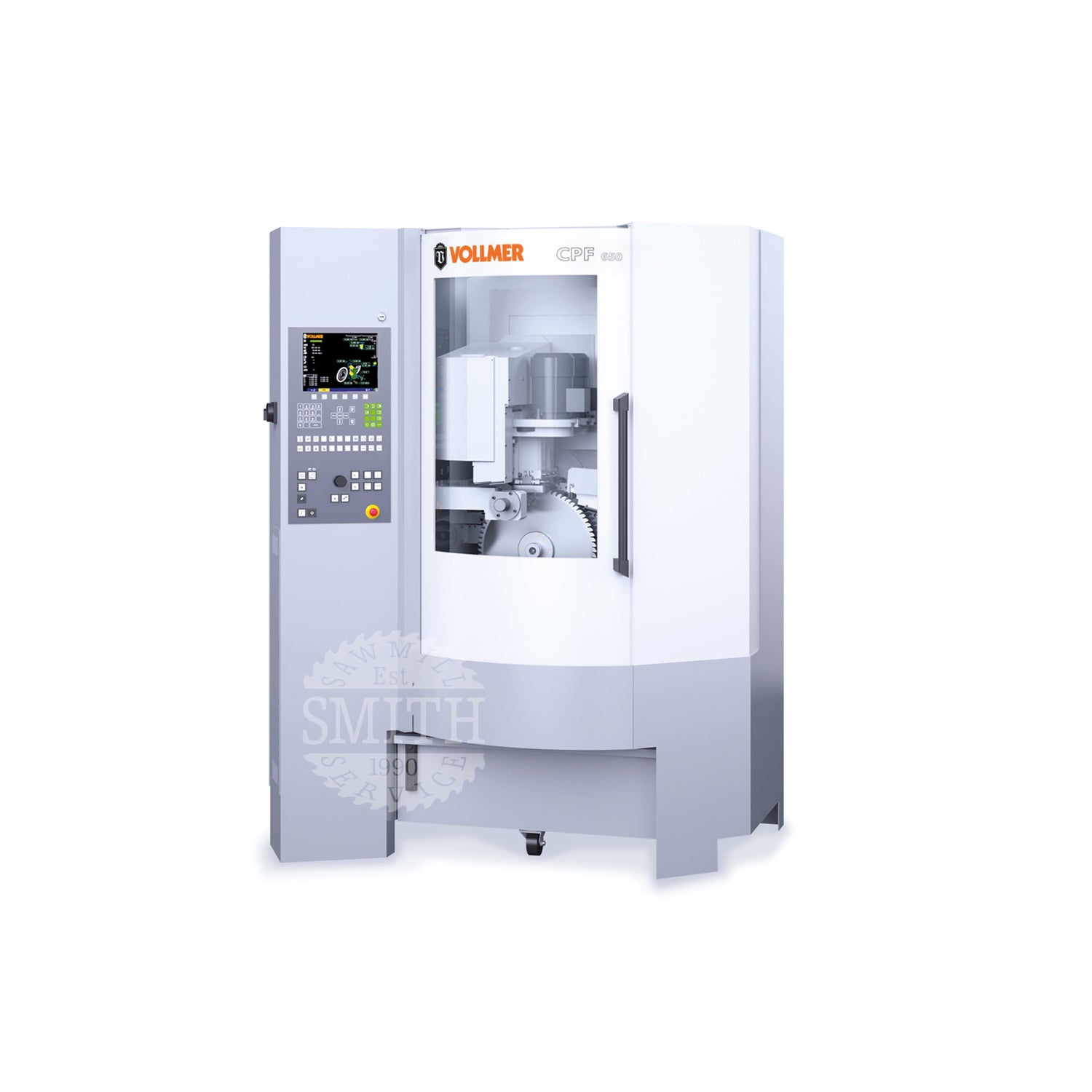

Vollmer CPF 650

MACHINE FOR SHARPENING THE SIDE ANGLES ON CARBIDE-TIPPED CIRCULAR SAW BLADES

• DESCRIPTION
• APPLICATION
• SPECS
• VIDEO

• CPF 650 CONCEPT

  The CPF 650 is ideally equipped for sharpening carbide-tipped circular saw blades, offering versatility which leaves nothing to be desired.

  • Five CNC-controlled axes for beginning-to-end hydraulics-free complete machining of all commonly used angles – even for saws with group toothing

  • Oscillation grinding as standard – for high material removal rates in just one cycle, in line with the requirements for production and when replacing teeth during servicing

  • Optimal movement coordination for short grinding times and reduced non-productive times, adjustable feed cam for ideal tooth positioning

  • Proven VOLLMER drive technology for dynamic and reliable machining

  • Five-axis kinematics for maximum flexibility

  • Automatic central lubrication included in the basic equipment for reduced maintenance costs

• APPLICATION

  Side machining of saws for processing wood, plastics and aluminum. Its high level of flexibility and superior grinding efficiency makes the CPF 650 the first choice for many applications.

  • Automatic setting of all commonly used angles – including the hook angle – and automatic detection of the tooth pitch

  • Machining of convex tooth sides is also possible

  • Saw change possible without adjusting the mounting carriage – no need to set it up again

• SPECS

  WORKPIECE DATA	CPF650
  CIRCULAR SAW BLADES
  Circular saw blades outside diameter	80 - 650 mm
  Circular saw blades with bore diameter	10 - 180 mm
  Circular saw blades with blade thickness	≤ 5 mm
  TOOTH GEOMETRY
  Grinding length on the side angles	< 19 mm
  Tangential clearance angle	0° - +8°
  Radial clearance angle	-20° - +6°
  Hook angle	-10° - +30°
  Tooth pitch	6 - 100mm
  INTERFACES
  Electrical connected load	4,9 kVA
  INTERNAL COOLANT UNIT
  Coolant tank	140 |
