NorthTech Up Cut Saw CS36L-2532, Smith Sawmill Service

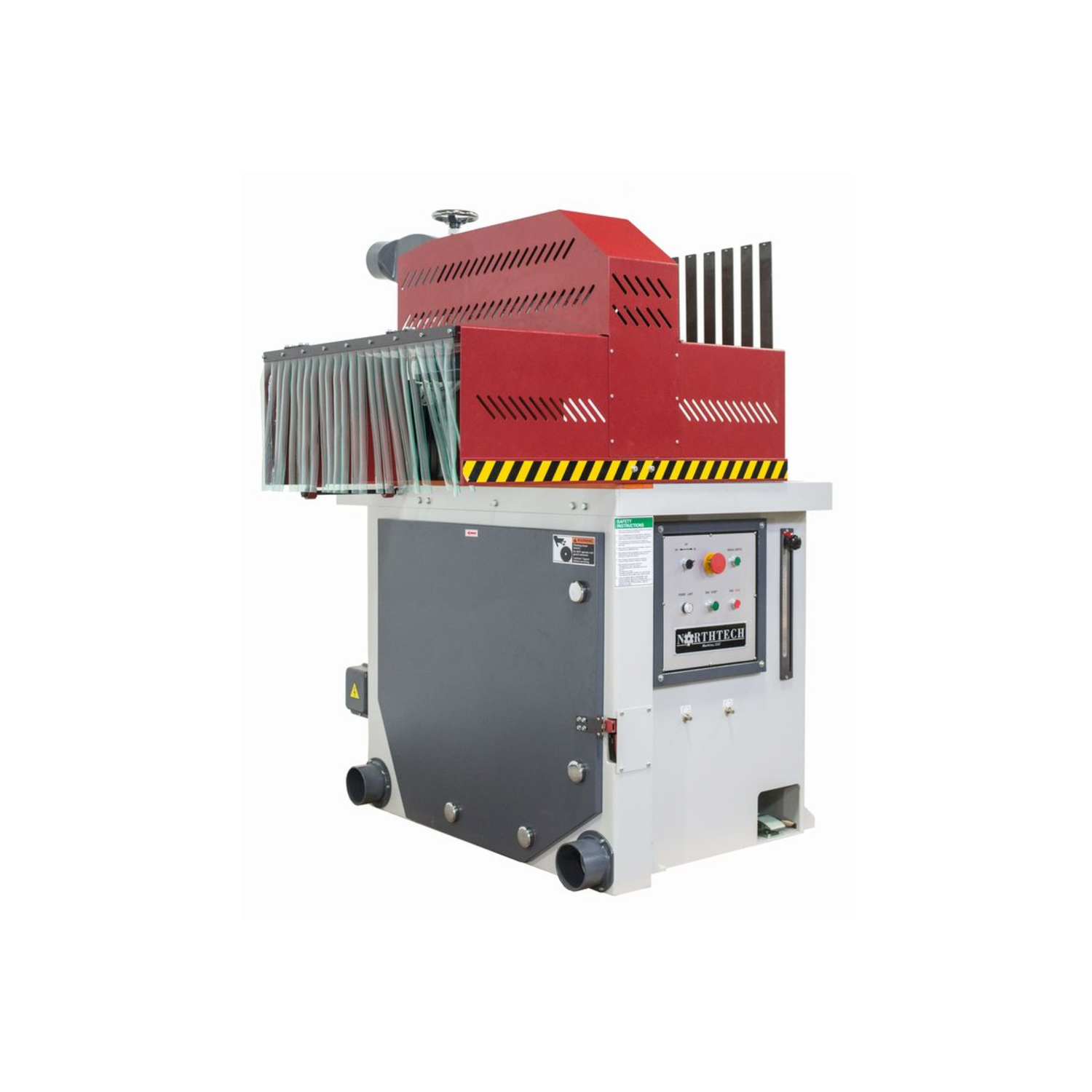

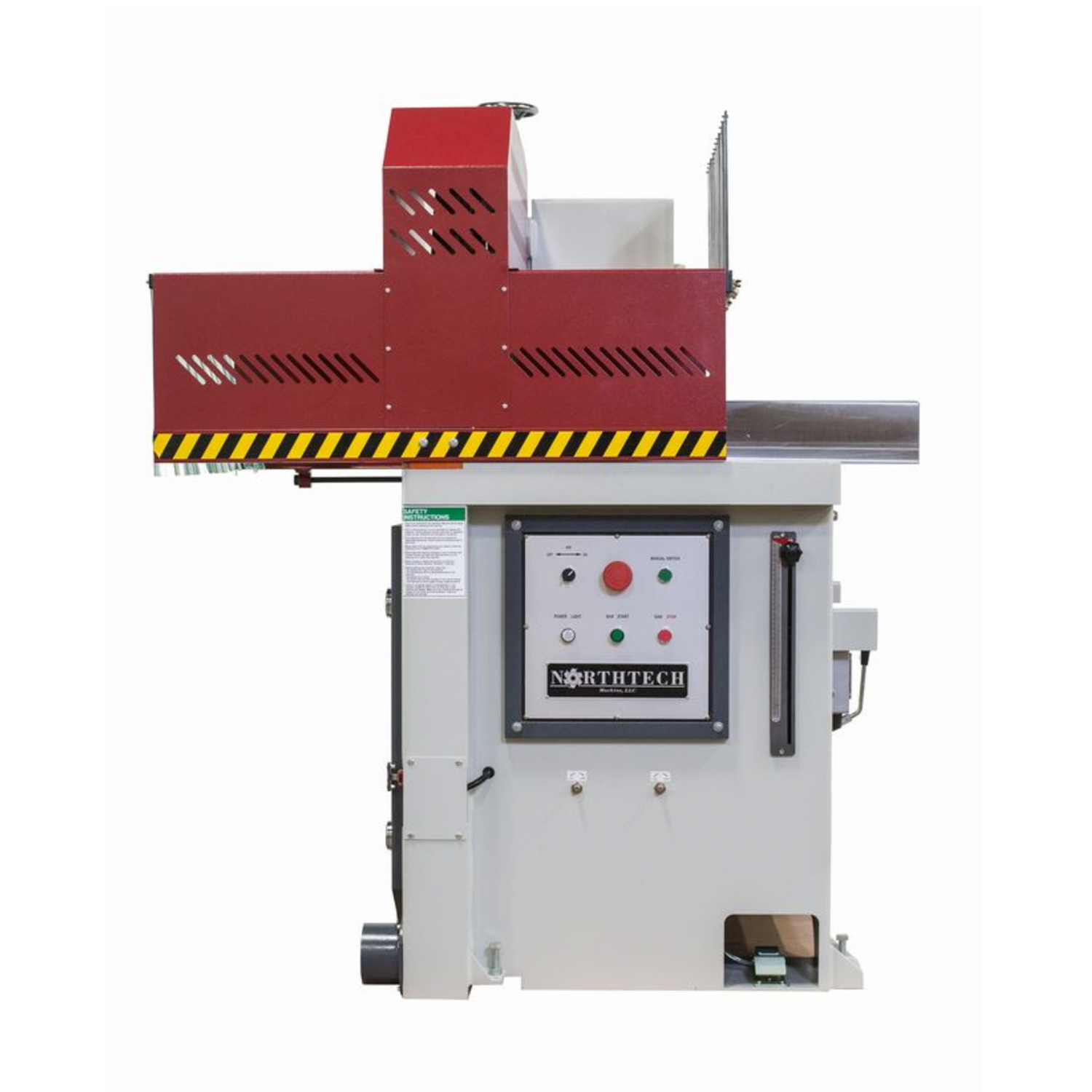

NorthTech Up Cut Saw CS36L-2532 + CS36R-2532

by NorthTech
SKU NORTHTECH-UP-CUT-SAW-CS36L-2532
Machine

NorthTech Up Cut Saw NT CS30L-1534

  • PRODUCT DIMENSIONS

    • Max cutting capacity: 2" x 33" 4" x 31" 6" x 29" 8" x 25" 10" x 20'' 12" x 12"

  • FEATURES

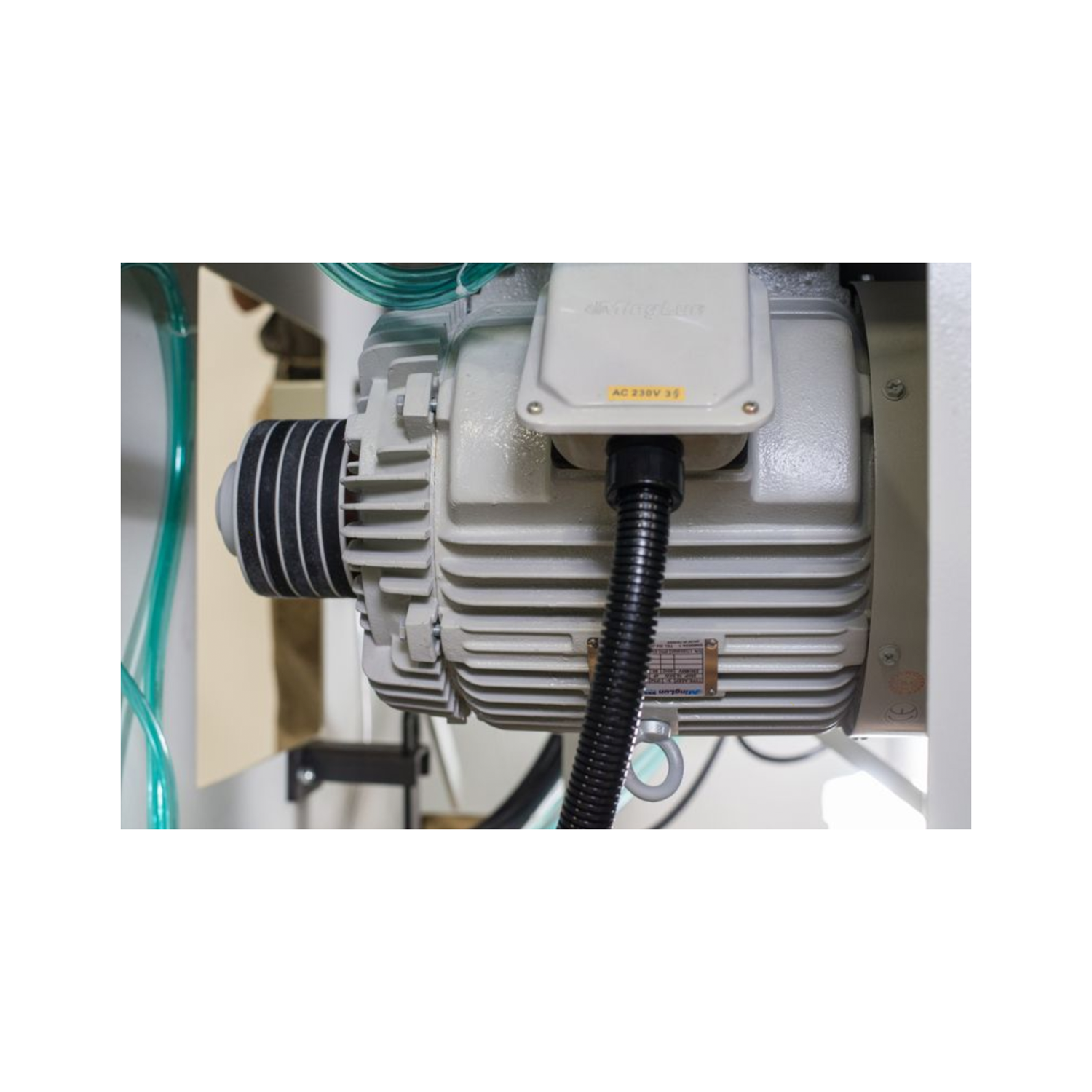

    • Motor: 25HP 3PH 230V; (1500 RPM).

    • 36” Carbide tipped blade with 120T included

    • 2” Saw arbor diameter

    • Cycle operation: Pneumatic

    • Table size: 57-3/4" x 34-3/4"

    • Safety interlock on blade door.

    • Quick access on front of the machine to adjust stroke.

    • Net weight: 2,605 lbs. • Gross weight: 2,900 lbs.

    • Packing dimensions: (L) 63" x (W) 45" x (H) 79"

    • (1) Tool box and manual

    • Warranty is one year parts

    • All machines are tested at factory prior to shipment providing trouble free start up.

  • OPTIONS

    • 8’ infeed / 8’ outfeed roller system with (2) gravity flip stops

    • 16' infeed / 16' outfeed roller system with (2) gravity flip stops

    • 36” x 120T carbide tipped blade (standard with saw)

    • 36” x 160T carbide tipped blade

    • (1) Gravity flip stop

    • 460V electrics

    • Double palm button actuation in lieu of foot pedal

  • SPECS

    • Factory

    • Main Motor Hp. = 25 hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 60.2 Amps

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 24 Volt Control Voltage

    • Assisted Start = Wye Delta

    • Cut Envelope = 2'' x 33'' 12'' x 12''

    • Min. Length = 23'' from Blade to Guard Edge

    • Max. Width = 2'' x 33''

    • Max. Thickness = 12''

    • Arbor Rpm = 1500 Rpm

    • Blade Size = 36'' Tungsten Carbide Tipped

    • No. of Teeth = 120 Tooth

    • Tooth Spacing = 1''

    • Blade Kerf = .305 In.

    • Dust Collection = 681 CFM @ Extraction Point

    • Dust Port Out = 2- 5'' Top 2- 5'' Bottom

    • Arbor Diameter = 2" Arbor

    • Cycles/Minute = 14 Cuts Per Minute

    • Hold Down Style = T Clamp

    • FLR Included = Filter, Lubricator, Regulator

    • Recommended CFM = 3/8'' Supply Line @ 90 Psi

    • Emergency Stop = Push Button

    • Safety Feature = Safety Interlock Switch

    • Guarding = High Visibility Guarding

    • Operation Style = Pneumatic Foot Pedal

    • Fence Type = Adjustable Fence

    • Fence Dims. = 3'' x 39-3/4''

    • Frame Const. = 1/4'' Steel Construction

    • Worktable Dims. = 57-3/4'' x 34-3/4''

    • Table Const. = Cast Iron

    • Decible Rating = 79 dB

    • Net Weight = 2605 Lbs.

    • Gross Weight = 2900 Lbs.

    • Machine Dims. = 58'' x 66'' x 78''

    • Packaging Dims = 62'' x 45'' x 79''

ITEM ID: 1086

×





×
