Opticom CC02-TVI Series

by Opticom
SKU OPTICOM-CC02-TVI

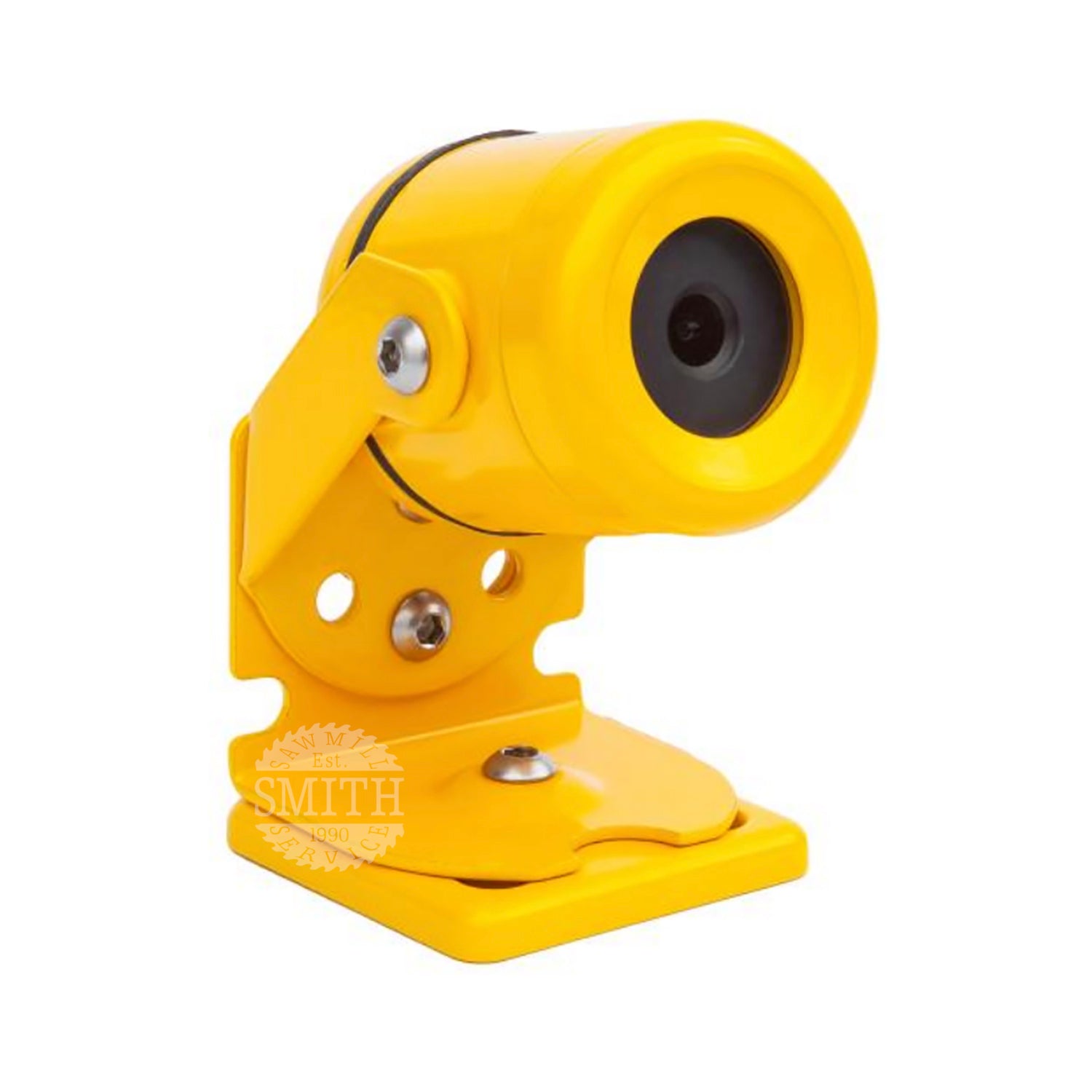

OPTICOM CC02-TVI SERIES

  • OPTICOM CC02-TVI SERIES DESCRIPTION

    The CC02-TVI camera is uniquely designed to meet the rugged environmental demands of heavy industry. The virtually indestructible titanium alloy housing ensures long camera life by shielding the imaging components from dust, moisture, vibration and extreme temperatures.

    The vibration resistance of the CC02-TVI is unsurpassed. Independent vibration testing has proven the CC02-TVI's ability to stand up to the stresses caused by industrial machinery.

  • OPTICOM CC02-TVI SERIES FEATURES

    • 1080P Resolution at 30 FPS

    • Vibration Resistant

    • Titanium Alloy Housing

    • Extreme Temperature Rating

    • IP68 All Weather Housing

    • Auto Day/Night Function

  • OPTICOM CC02-TVI SERIES SPECS

    Specifications  CC02TVI Series
    Image Sensor 1/2.7" CMOS Progressive Scan Sensor
    Total/Effective Pixels 2066(H) x 1100(V) = 2.27M / 1930(H) x 1088(V) = 2.09M
    Resolution 1080P (1920 x 1080) / 30 FPS
    Illumination 0.5 Lux
    S/N Ratio More than 40 dB (AGC Off)
    Day/Night Function Auto (ICR)
    Backlight Compensation Off/On (Auto)
    Digital Noise Reduction 2D DNR
    White Balance Auto
    Lens available
    2.9, 3.6, 4.3, 6.0, 8.0, 12.0 & 16.0mm
    Sync System Internal
    Video Output 1 Vp-p / 75 ohms
    NEMA Rating IP 68
    Housing Titanium Alloy with Safety Yellow Powder Coat
    Bracket Tri-Axial Mount included
    Power 12V DC (Power supply included) / 24V AC Optional
    Power Consumption 150mA Max.
    Dimensions 2.36 x 2.75 x 4.26"
    Operation Temp -76F ~ +140F (-60C ~ +60C)
    Weight 1.76 lbs

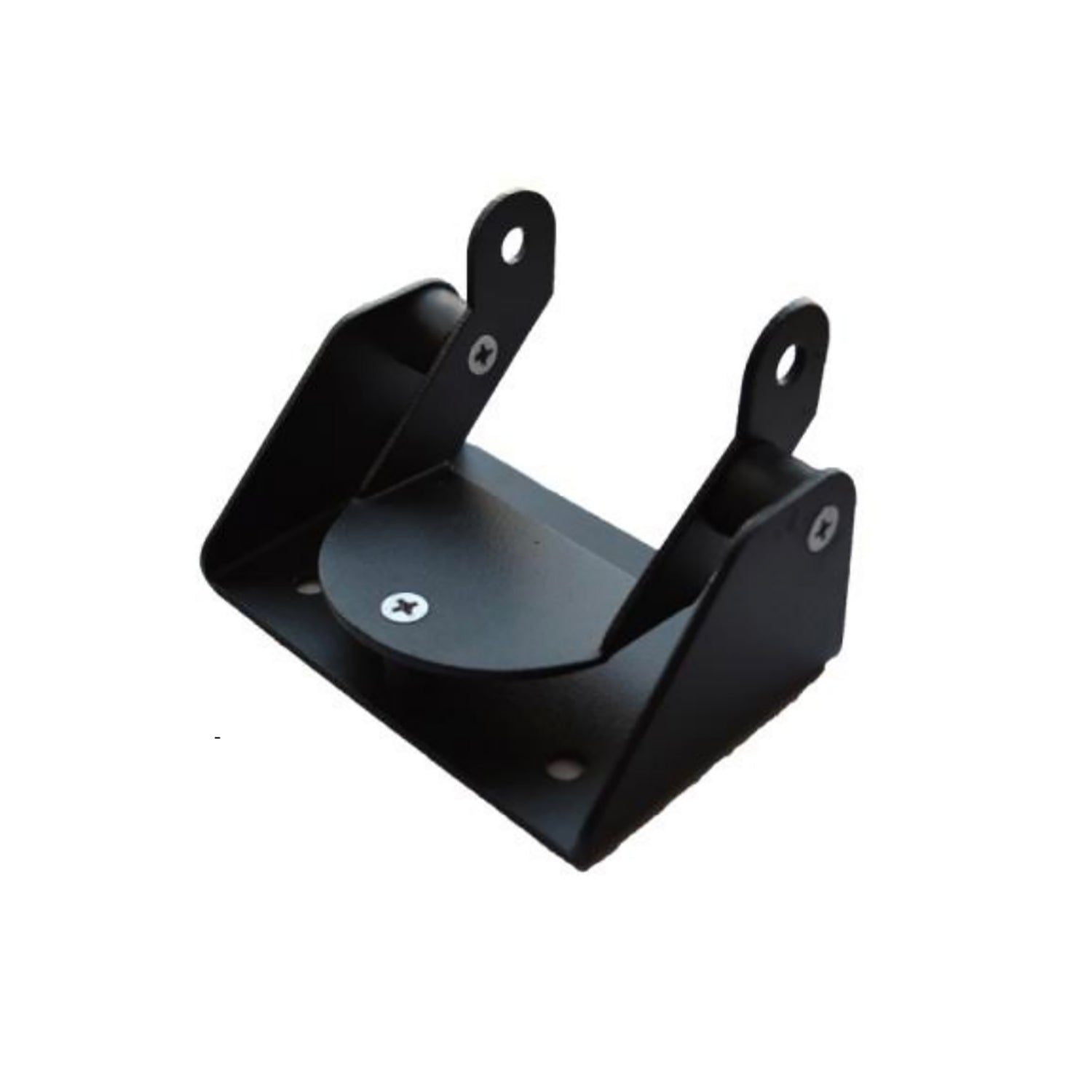

  • VM-1 VIBRATION MOUNT

    • New optional mount for very high vibration applications

    • Extends Camera Life

    • Easy To Install

    • Advanced Vibration Damping Design



  • CC02TVI PART NUMBERS

    Lens Size 12V DC 24V AC
    2.9mm Lens CC02TVI-29 CC02TVI-29-24
    3.6mm Lens CC02TVI-36 CC02TVI-36-24
    4.3mm Lens CC02TVI-43 CC02TVI-43-24
    6.0mm Lens CC02TVI-6 CC02TVI-6-24
    8.0mm Lens CC02TVI-8 CC02TVI-8-24
    12.0mm Lens CC02TVI-12 CC02TVI-12-24
    16.0mm Lens CC02TVI-16 CC02TVI-16-24
Download Opticom CC02-TVI Series Brochure
