PRINZ MOBILCUT STATE LINE
-
DESCRIPTION

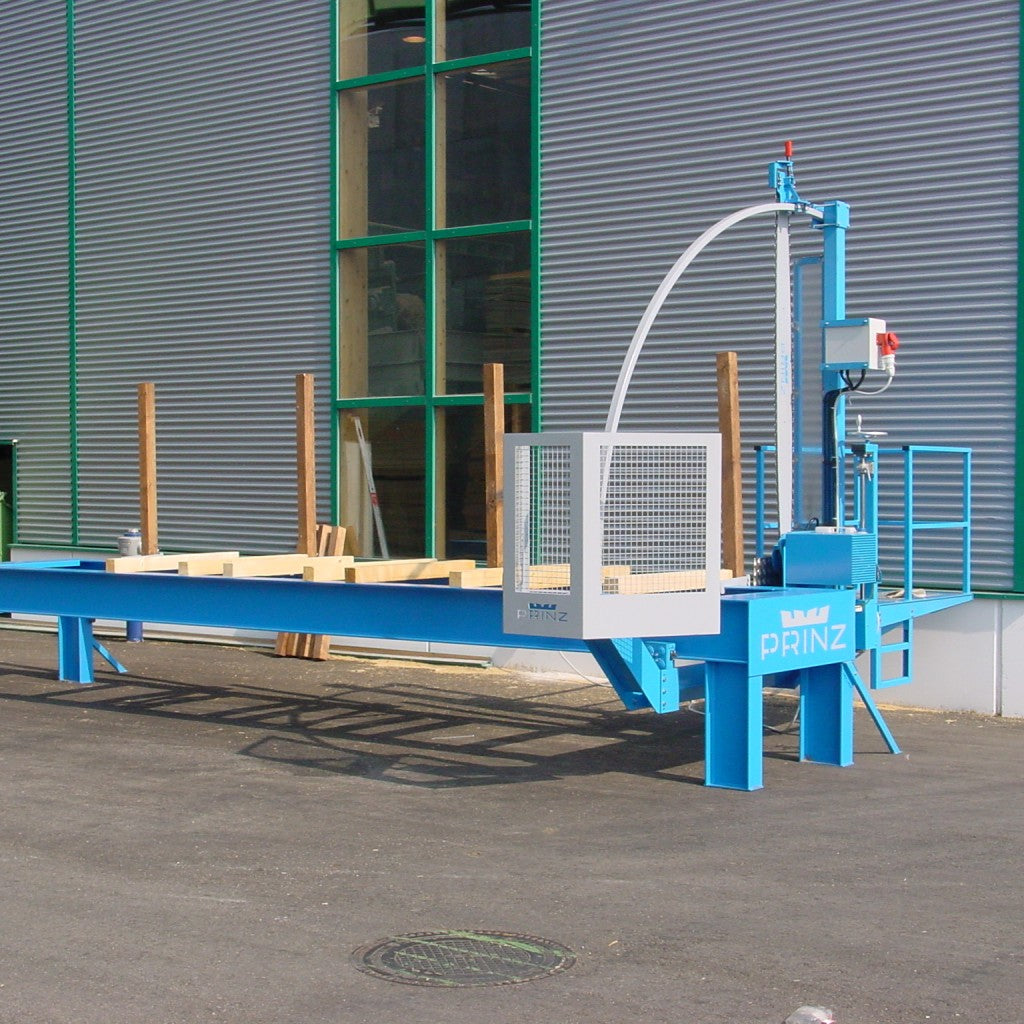

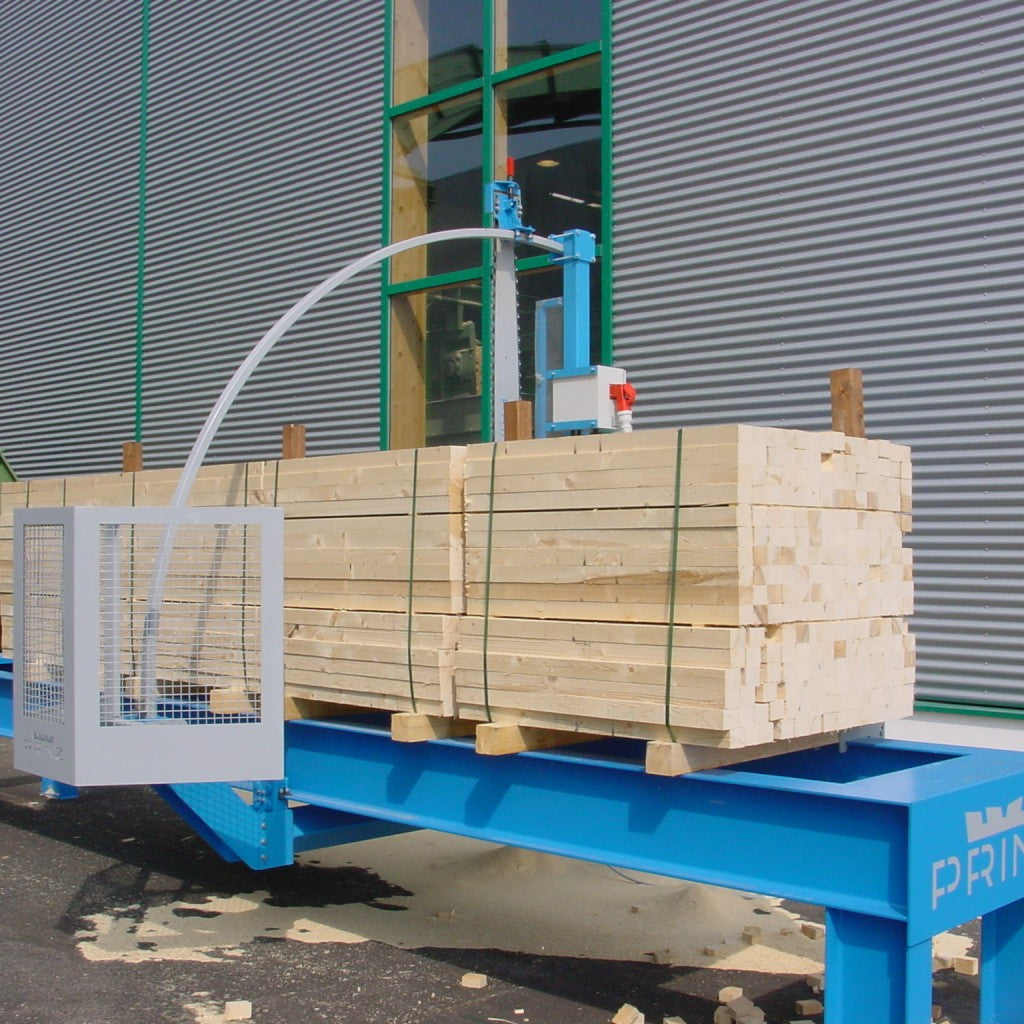

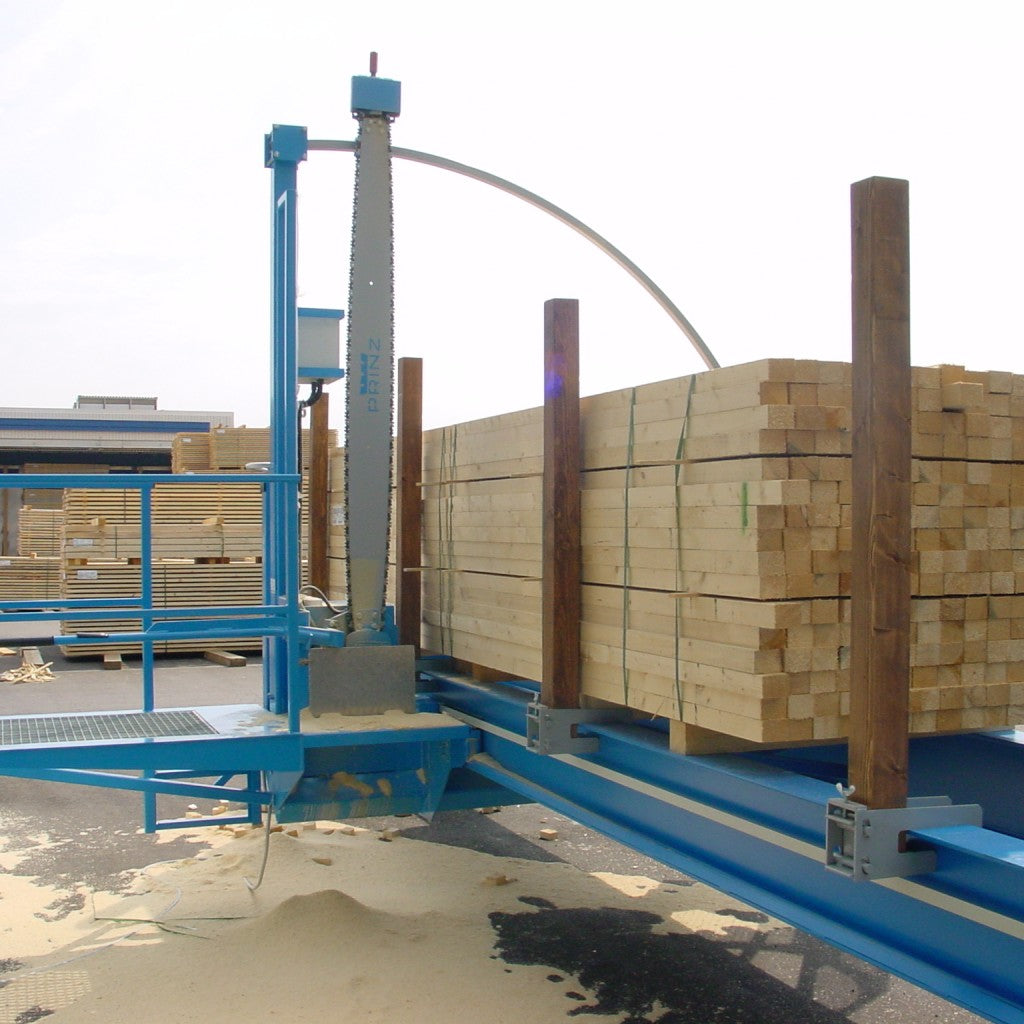

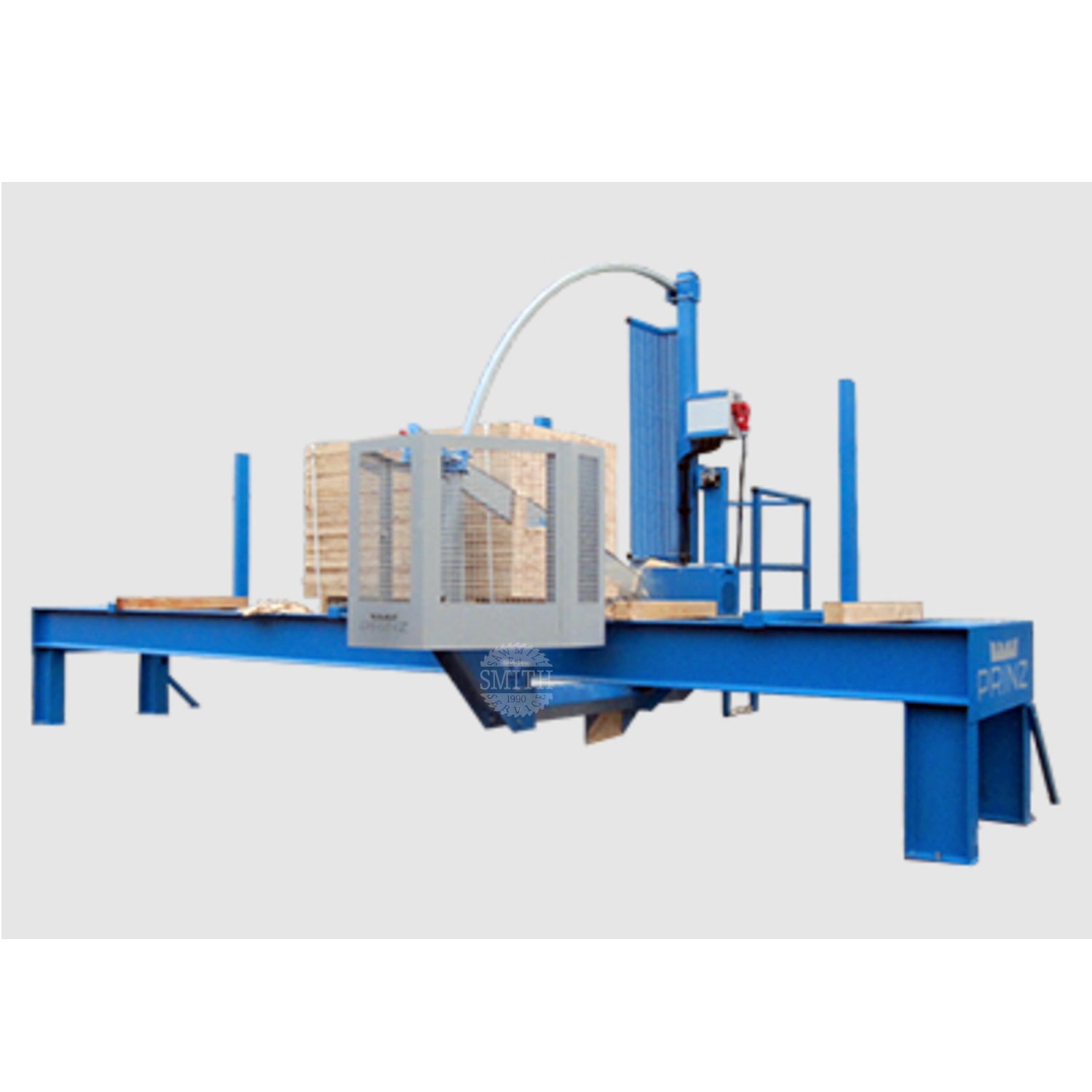

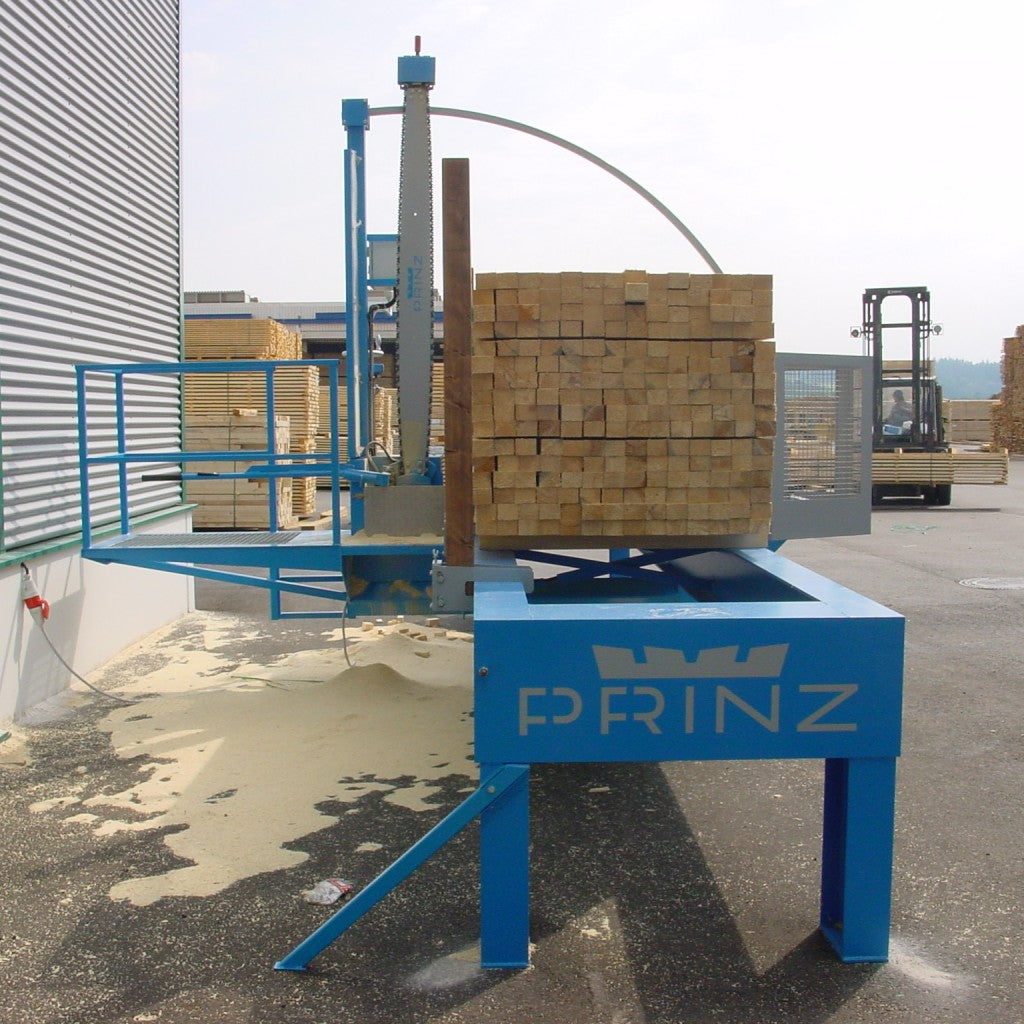

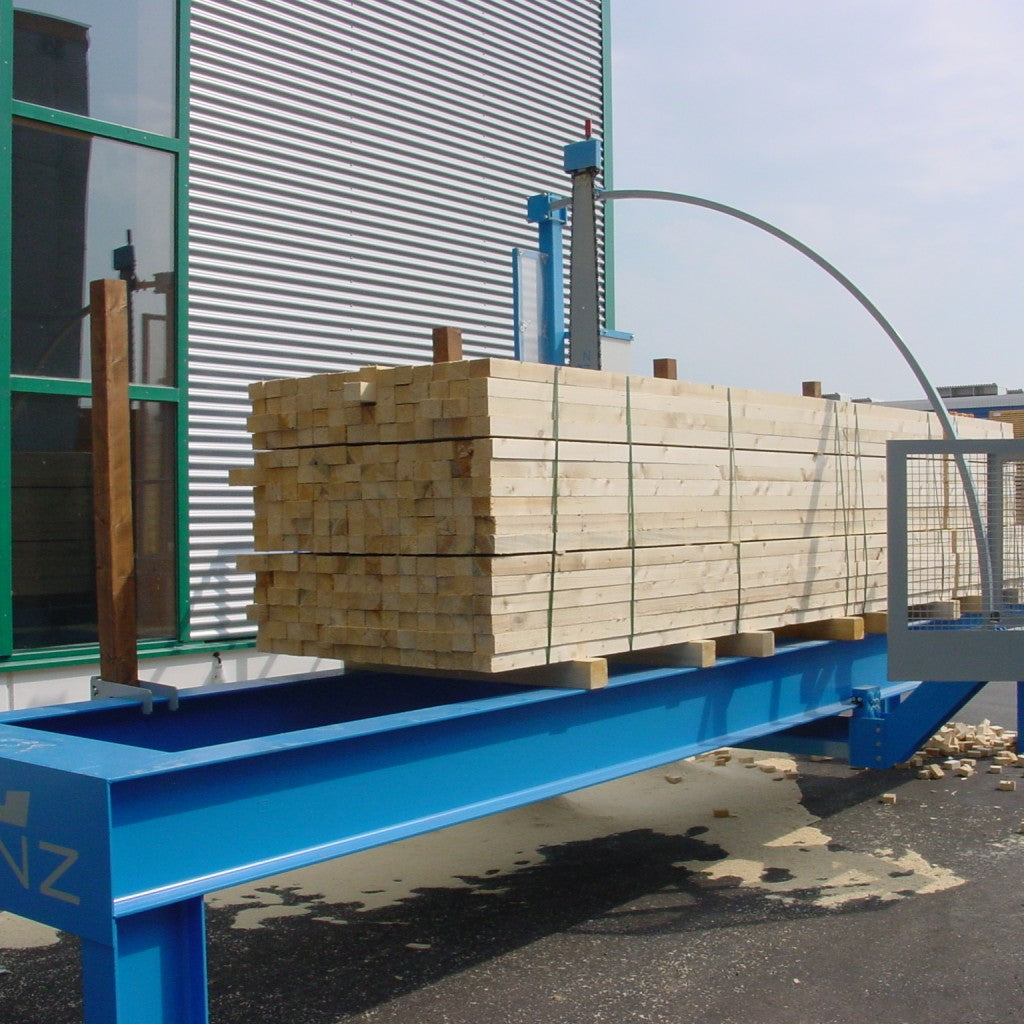

The MOBILCUT STATE LINE is a positioning saw with a package frame to cut stationery packages. The saw positioning is manual, the guide bar moves along a robust guide arch for high cut accuracy. The saw stands out due to its easy operation, sturdy design, and excellent stability. With a maximum frame length of 7,6 m, it can also be installed where space requirement is limited.
Main facts about the MOBILCUT STATE LINE :
• chain engine with 7,5 kW
• very robust guide arch
• to cut packages with 51″ x 51″ (130×130 cm) up to 236″ (6 m) length
• reduced space requirement with only 297″ (755 cm) length
• cut accuracy of +/- 0.08″ (±2 mm) with arch guiding
• cut feed manual
• positioning of the saw manual with handwheel/automatic
• optional extras to best meet your individual requirements: digital readout of the length, laser light, and conveyors for waste removal
-
TECHNICAL DATA
Power:
7.5 kW Motor/Engine:
electric Cutting accuracy: +/- 0.08″ (±2 mm)
Standard package size (width x height)
51″ x 51″ (130 x 130cm)
Larger dimensions available:
yes
Cut feed: manual Guiding of the cut:
with arch Saw type:
saw moves/stationary package
Chain types:
scraper chain/ carbide tipped chain
Guide bar:
solid steel, special hard-faced edge
Cutting performance:
2min/m²
Package/saw drive:
positioning of the saw
Measuring device available:
yes
Control system:
full and half-automatic
Applications:
traveling saw to handle packages up to 6m length with a cut accuracy of ±2mm and limited space requirement Options:
digital readout of the length/ measuring device
laser light for cut position
conveyors for waste removal
container for waste removal
-
