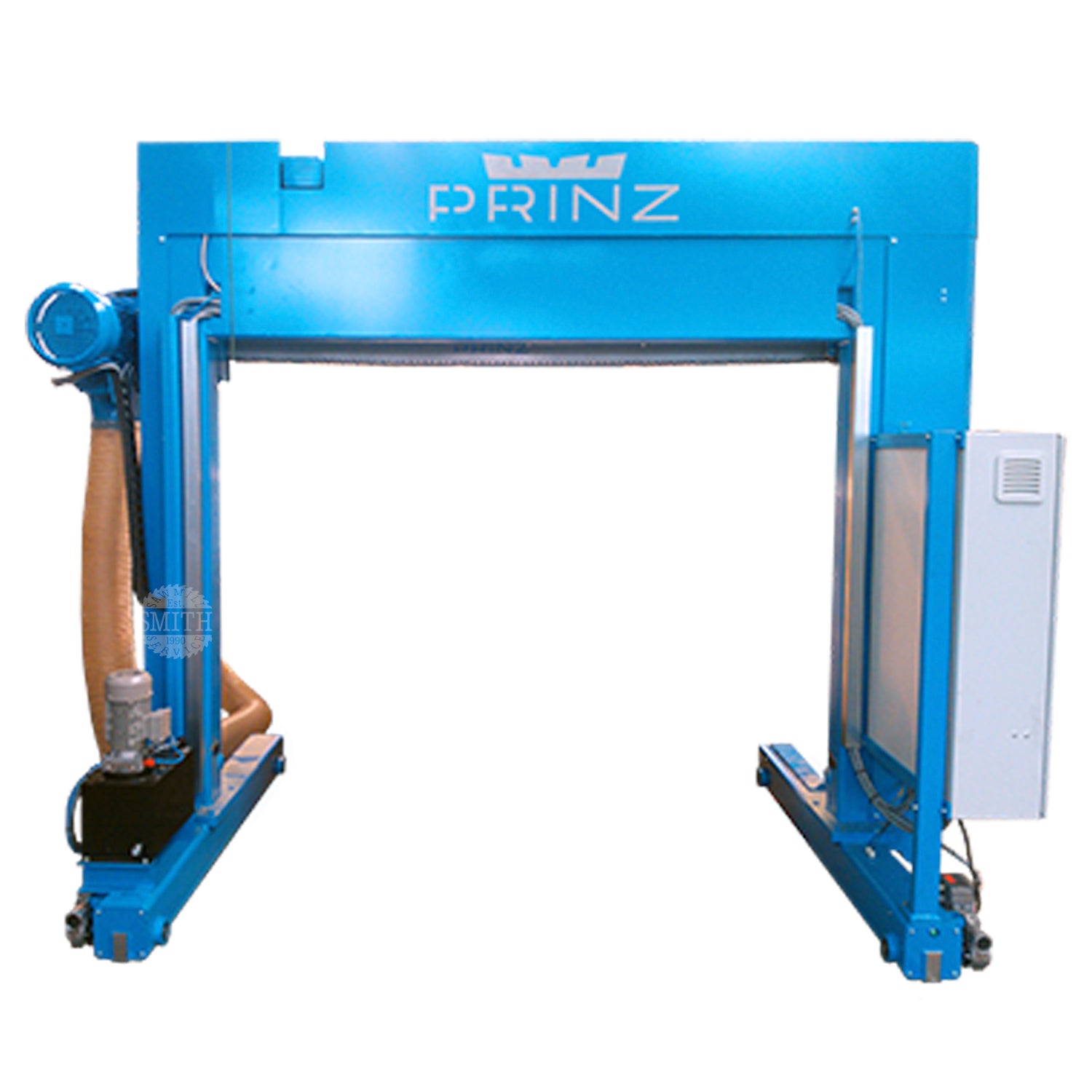

PRINZ PC120 PACKCUT
-
DESCRIPTION

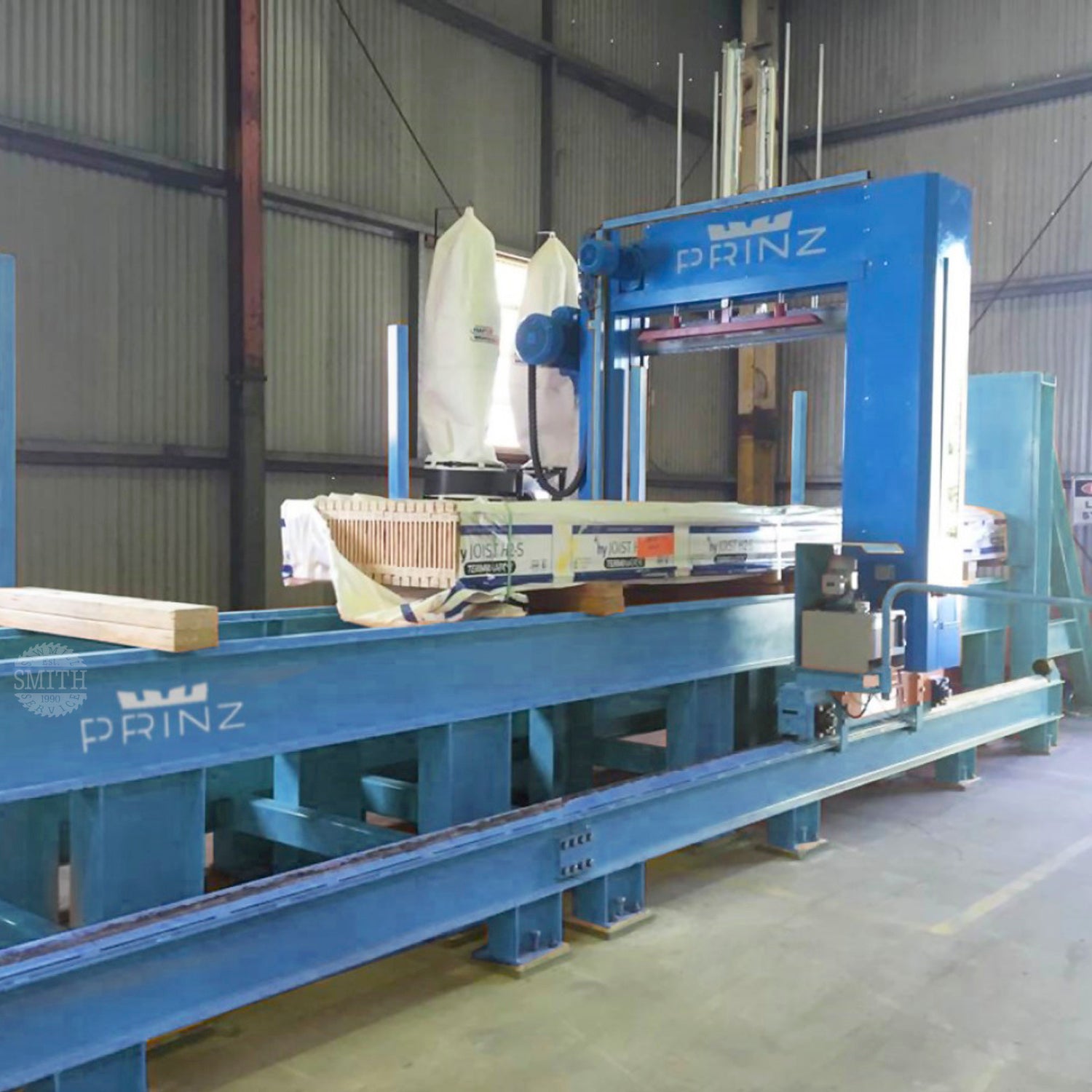

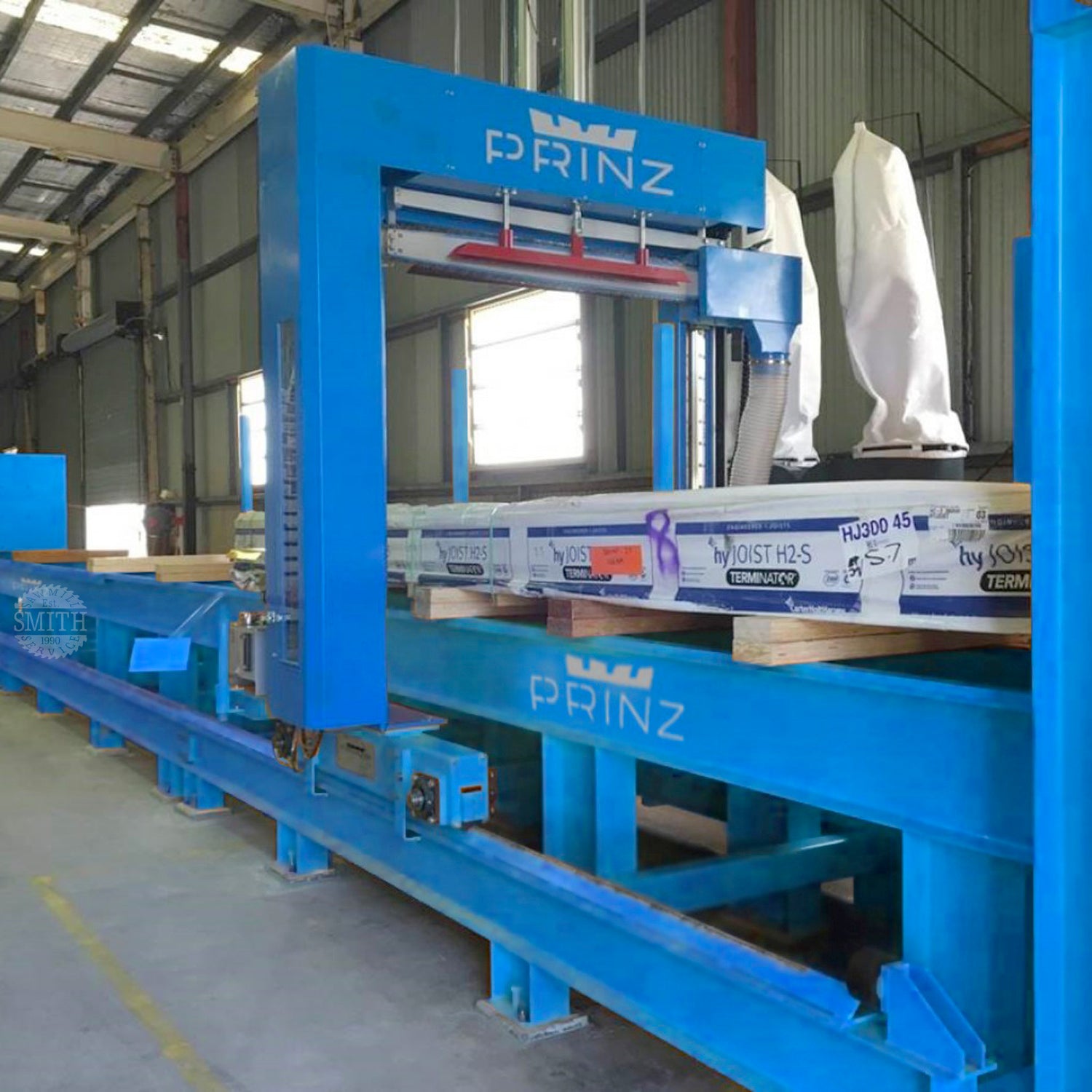

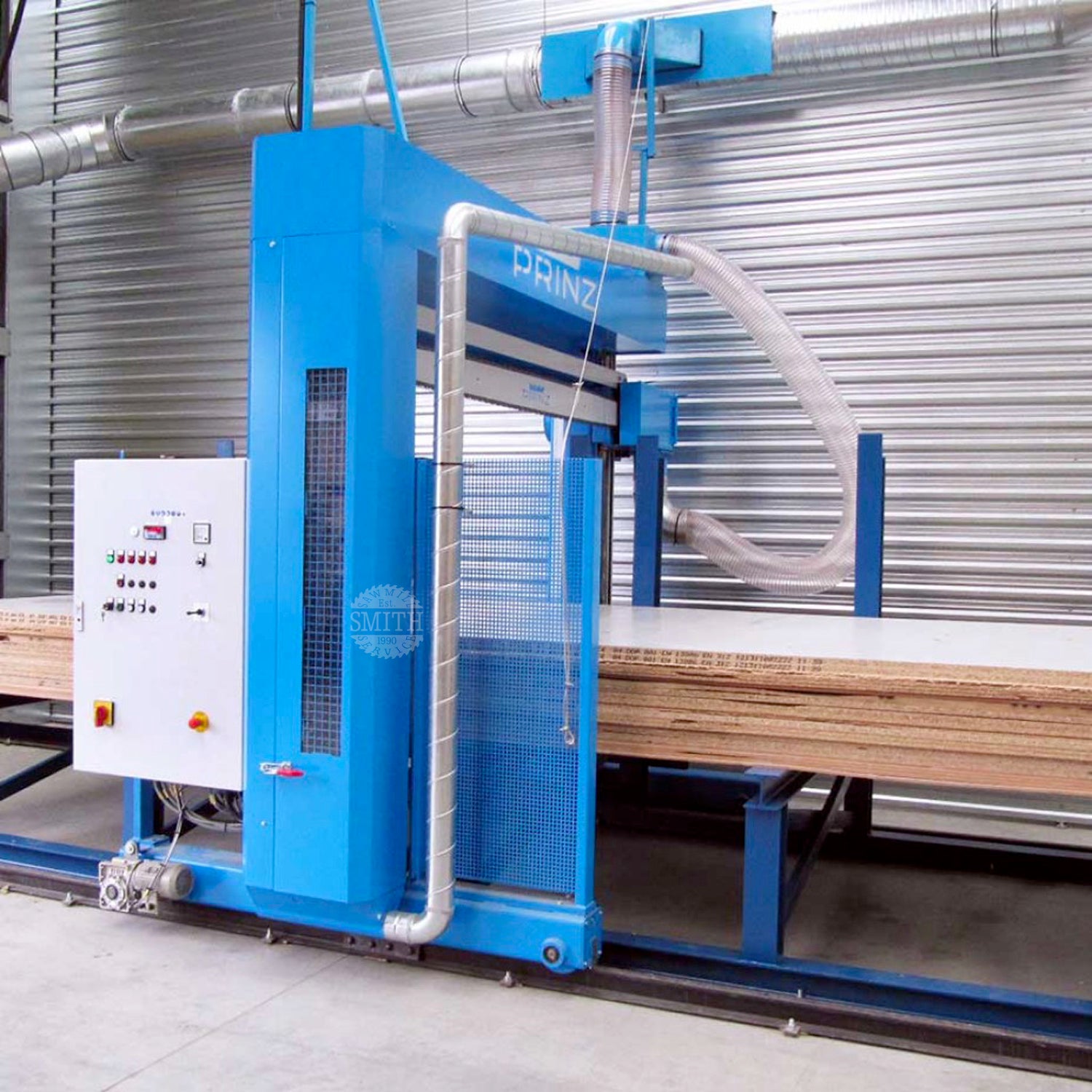

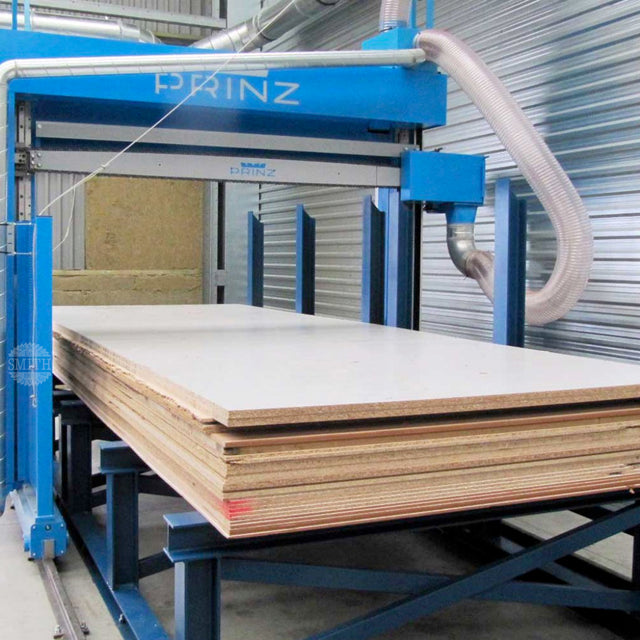

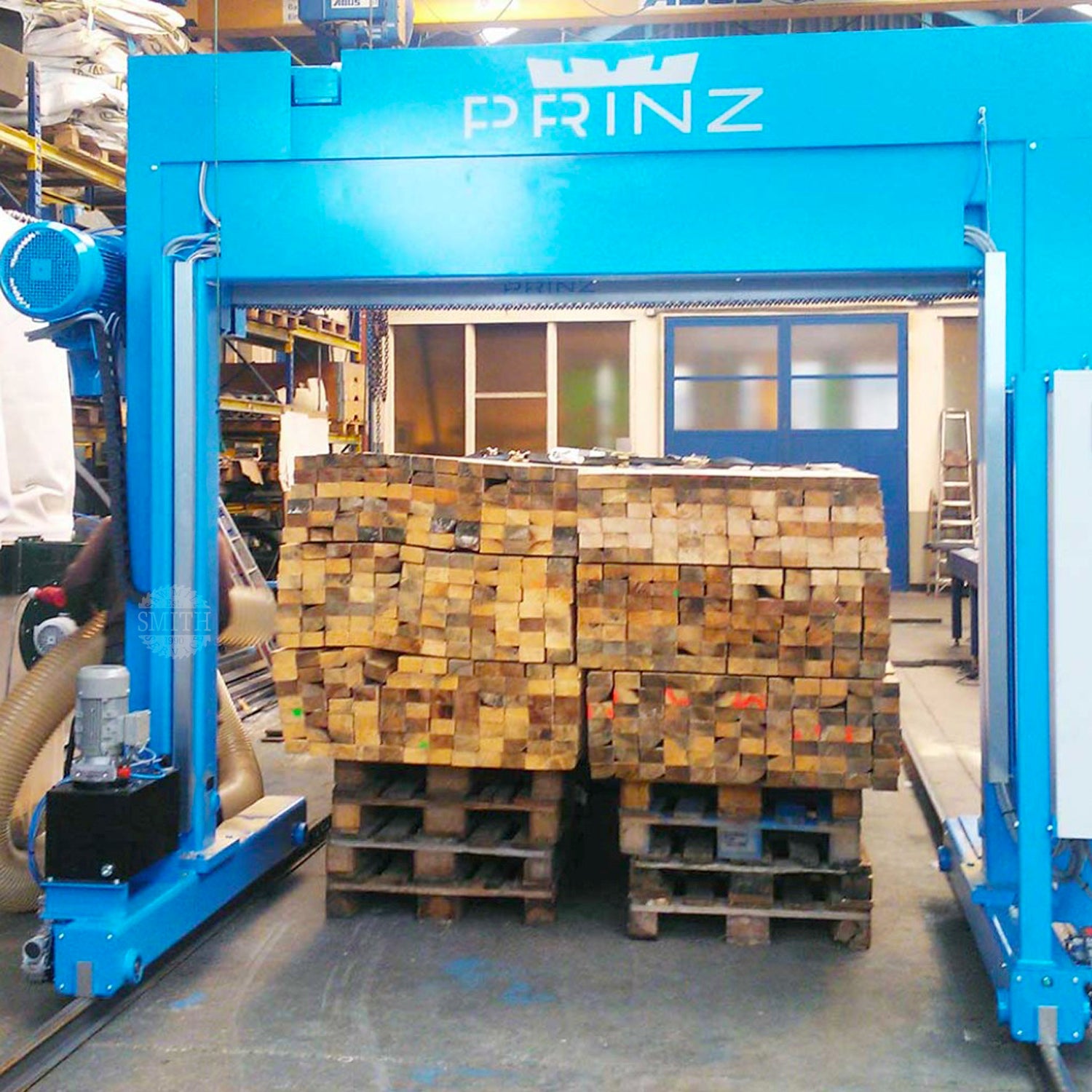

The loading possibilities for the packages are numerous and can be configured according to your individual needs. The configuration of the saw is very flexible and enables you to take into account your specials requirements as to the width and height of the packages to be processed. The saw moves on a rail system to the wished cutting position rending the installation expandable at any time. Many options are also available for the PACKCUT like length indication, pressure pads, and solutions for waste removal.
-
TECHNICAL DATA
Power:
15 kW Motor/Engine:
electric Cutting accuracy: depending on the performance version
Standard package size (width x height)
94,5” x 47” (240 x 120cm)
Larger dimensions available:
yes
Cut feed: gear motor Guiding of the cut:
parallel precision linear bearing guide system
Saw type:
stationary package/saw moves
Chain types:
scraper chain/ carbide tipped chain
Guide bar:
solid steel, special hard-faced edge
Package/saw drive:
gear motor with frequency converter
Measuring device available:
yes
Control system:
full and half-automatic
Applications:
traveling saw to handle packages up to 6 m length with ±1mm cut accuracy and limited space requirement Options:
fully automatic production system with hight cut accuracy, unlimited package length
manual or electronic measuring device
exhaust connection, cross conveyors, laser light for cut position
strapping machine, conveyors for waste removal
vibrating roll case for package alignment to eliminate end trims, a container for waste removal
package holding down appliance
