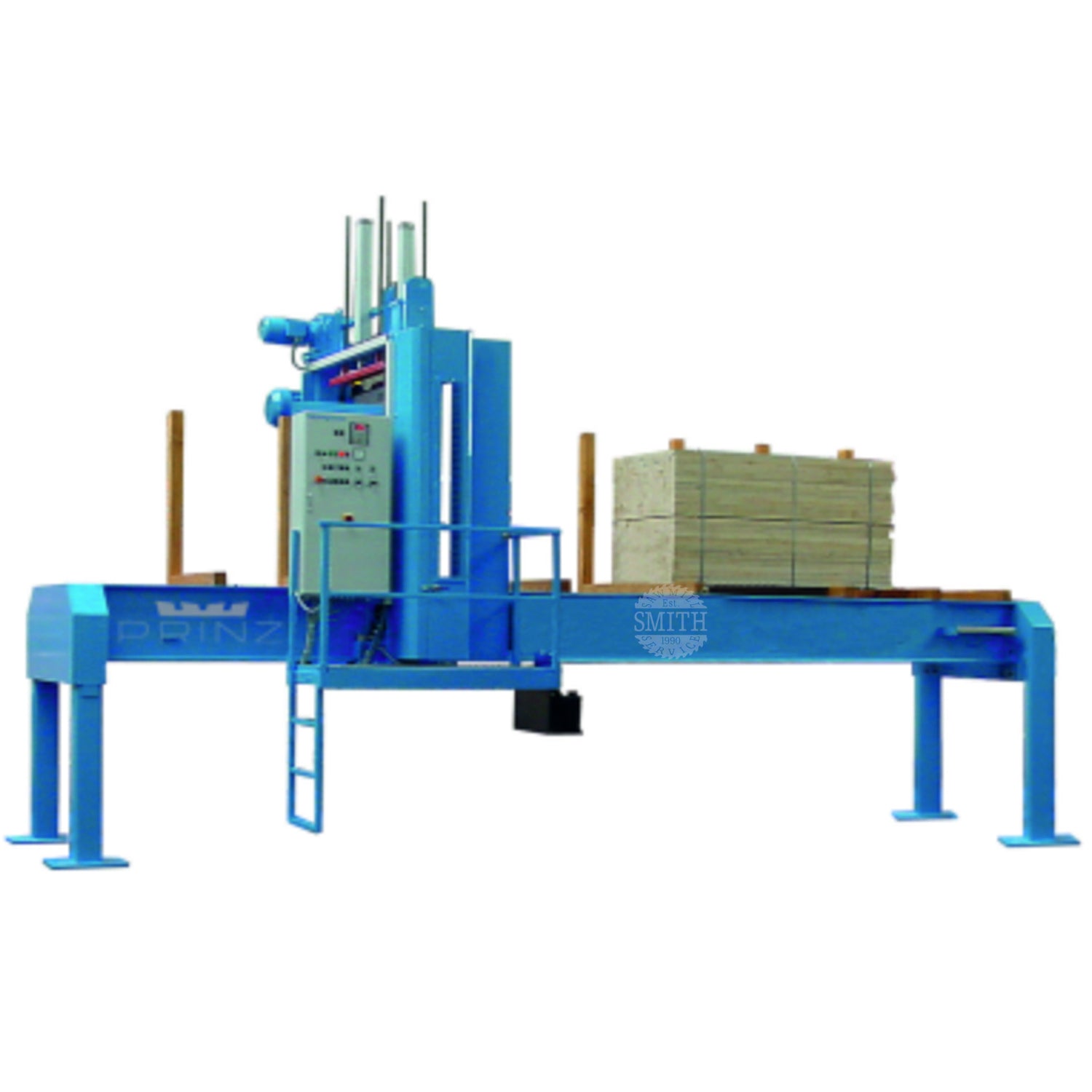

PRINZ PC120 CUTSTAR
-
DESCRIPTION
Ideal for just those situations where you do not have much room to work in, but you need maximum cutting accuracy. With the mobile CUTSTAR, stationary lumber packages are cross-cut to the required length at a cutting accuracy of ±1 mm (.040”). A compact and cost-efficient solution to meet the most stringent demands.
• ±1 mm (.040”) cutting accuracy thanks to precision guidance
• connection for sawdust extraction
• automatic measurement of lengths using a PLC control system
• individually programmable package lengths
• pneumatic pressure pads to hold down the packages
• clear control panel for safe machine operation
• options: series cutting function, package lift for kerf opening, integrated wood residue disposal
-
TECHNICAL DATA
Power:
15 kW Motor/Engine:
electric Cutting accuracy: ±.040” (±1mm) Standard package size (width x height)
47” x 47” (120 x 120 cm)
Larger dimensions available:
yes
Cut feed: gear motor Guiding of the cut:
parallel precision linear bearing guide system
Saw type:
stationary package/saw moves
Chain types:
scraper chain/ carbide tipped chain
Guide bar:
solid steel, special hard-faced edge
Cutting performance:
1,5 min/m²
Package/saw drive:
gear motor with frequency converter
Measuring device available:
yes
Control system:
full and half-automatic
Applications:
traveling saw to handle packages up to 6 m length with ±1mm cut accuracy and limited space requirement Options:
electronic measuring device
exhaust connection, laser light for cut position
conveyors for waste removal
container for waste removal
package holding down appliance
package lift for kerf opening
