Description

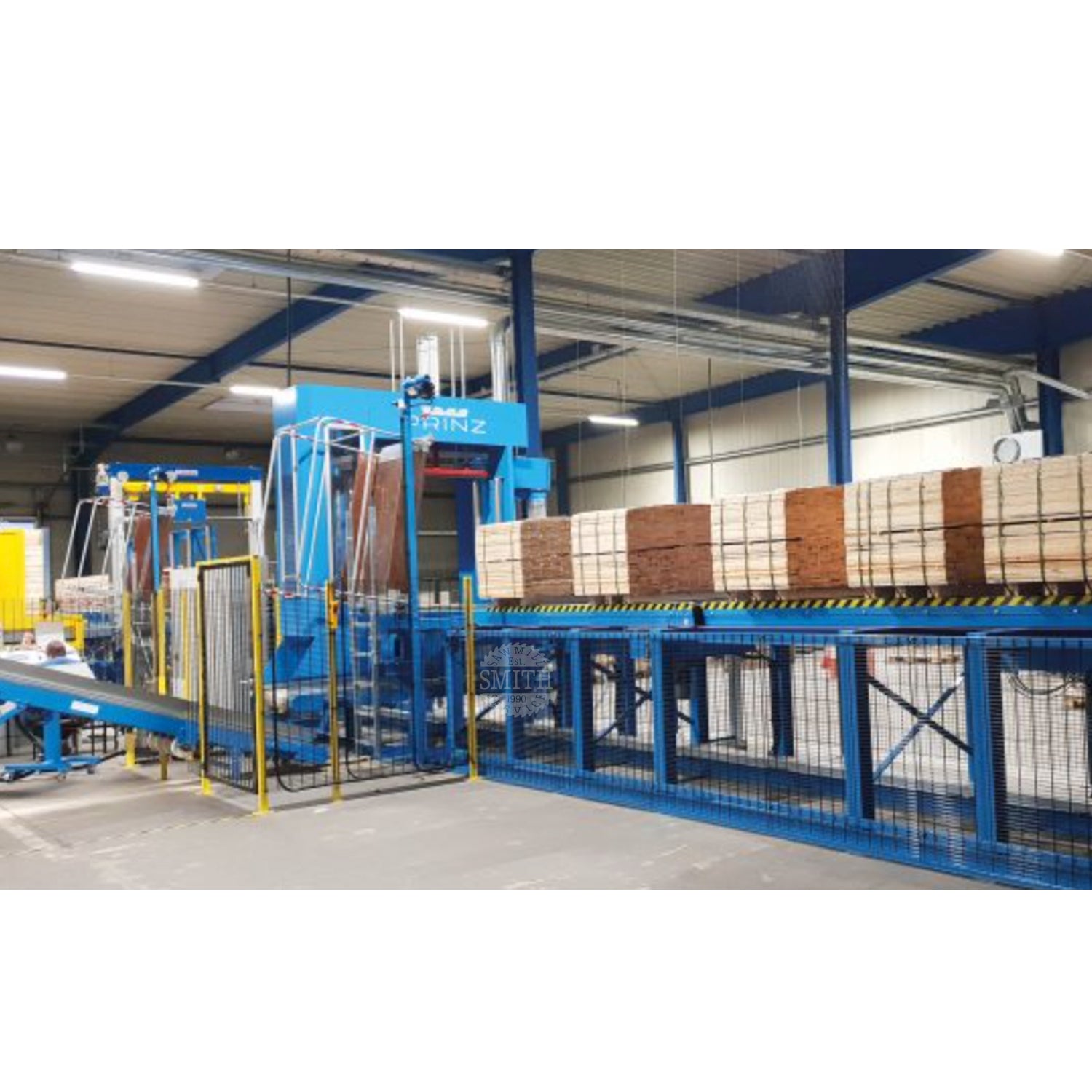

PRINZ PC120 Chain Conveyor

  • DESCRIPTION

    Chain conveyors are perfectly suited for the forwarding of packages of short length such as MDF, chipboard, and composite materials as these systems are continuous and without any interruption. They are also the best solution when fragile surfaces have to be transported.

  • TECHNICAL DATA

    Power:
    15 kW
    Motor/Engine:
    electric
    Cutting accuracy: ±.040” (±1mm)
    Standard package size (width x height)
    47” x 47” (120 x 120 cm)
    Larger dimensions available:
    yes
    Cut feed:
    gear motor
    Guiding of the cut:
    parallel precision linear bearing guide system
    Saw type:
    stationary saw/package moves
    Chain types:
    scraper chain/ carbide tipped chain
    Guide bar:
    solid steel, special hard-faced edge
    Package/saw drive:
    gear motor with frequency converter
    Measuring device available:
    yes
    Control system:
    full and half-automatic
    Applications:
    fully automatic production system with ±1mm cut accuracy, unlimited package length
    Options:
    manual or electronic measuring device

    exhaust connection, cross conveyors, laser light for cut position

    strapping machine, conveyors for waste removal

    vibrating roll case for package alignment to eliminate end trims, a container for waste removal

    package holding down appliance
