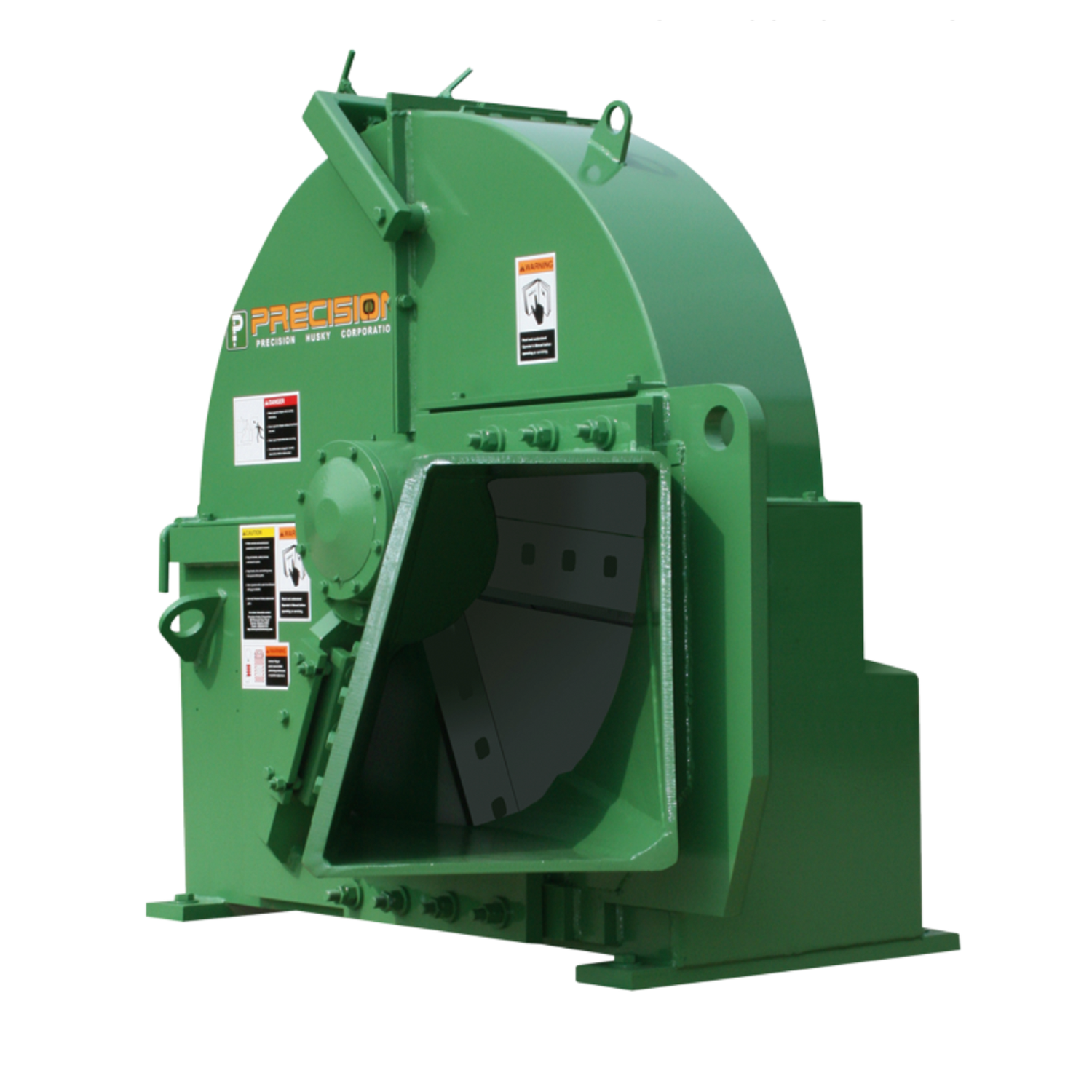

Precision Waste Wood Chippers

CAPABILITIES

The canted side spout design and the position of the knife causes a smooth slicing action. The attack angle of the knife gives a gentle lift to the slab as the knife passes the center line and begins the upward swing turning the slab counterclockwise. The spout has a flat bottom and canted side to give 25% more anvil contact, preventing slapping and wood turning in the wrong direction. Horizontal and vertical anvils give additional life, requiring less maintenance. Both anvils are hard surfaced with colmonoy with a hardness of 62-65, Rockwell C scale. With a four-sided replaceable anvil, maintenance and time are saved. Less horsepower is needed with Precision’s smoother slicing action.

Precision’s UNIQUE and PROVEN design has earned its reputation as "The Best and Most Consistent Chipper in the World." With numerous and custom configurations, we can meet your company’s every need and will provide you with the best quality product in the industry. Precision Husky Corporation is quality driven and service oriented.

VIEW BROCHURE

SPECIFICATIONS

• SIZE 38"

• SIZE 48"

• SIZE 58"

• SIZE 66"

• CHIPPER SIZE 38" [96 CM]	SPECS
  Number of Knives	4
  Disc Diameter	30 HP [22 kw]
  Max. Operating Rpm	8’ to 20’ [2.44 m x 6.10 m]
  Spout Opening	25’ [7.62 m]
  Approx. Feed Rate	6”-36” [152 mm to 914 mm]

• CHIPPER SIZE 48" [122 CM]	SPECS
  Number of Knives	3,4,6 or 8
  Disc Diameter	48" [1220 mm]
  Max. Operating Rpm	900
  Spout Opening	11" x 24" [280 mm x 610 mm]
  Approx. Feed Rate	337 fpm [102 mpm]

• CHIPPER SIZE 58" [147 xm]	SPECS
  Number of Knives	3,4,6 or 8
  Disc Diameter	58" [1475 mm]
  Max. Operating Rpm	720
  Spout Opening	15" x 34" [380 mm x 865 mm]
  Approx. Feed Rate	270 fpm [82 mpm]

• CHIPPER SIZE 66" [168 CM]	SPECS
  Number of Knives	3,4,6 or 8
  Disc Diameter	66" [1675 mm]
  Max. Operating Rpm	600
  Spout Opening	17" x 37.5" [430 mm x 950 mm]
  Approx. Feed Rate	300 fpm [91 mpm]

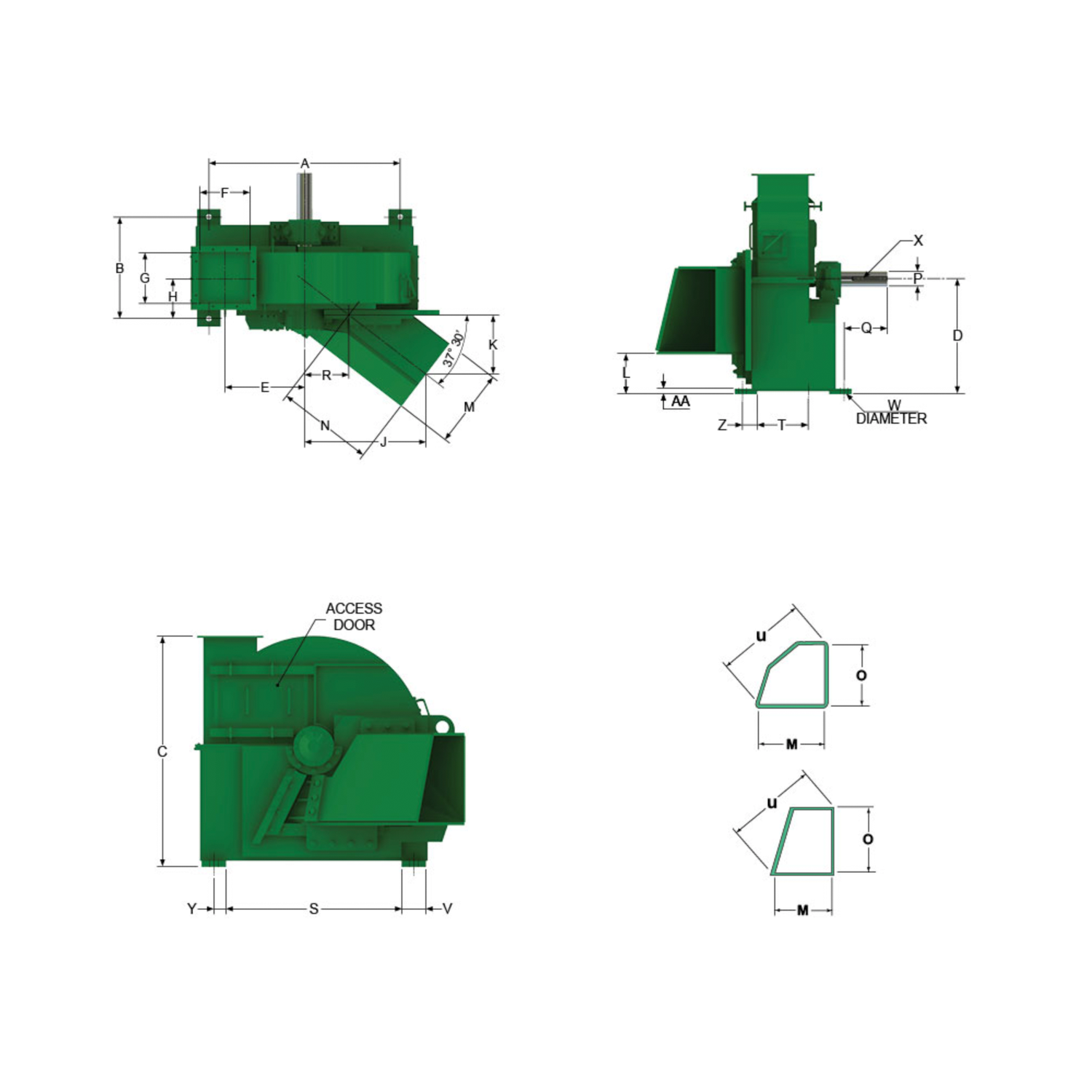

DIMENSION SPECIFICATIONS

• SIZE 38"

• SIZE 48"

• SIZE 58"

• SIZE 66"

• CHIPPER SIZE 38" [96 CM]	SPECS
  A	36” [914 mm]
  B	23” [584 mm]
  C	44 ⅝” [1133 mm]
  D	23 ⅝” [600 mm]
  E	16” [406 mm]
  F	10” [254 mm]
  G	10 ¾” [273 mm]
  H	7 ⅝” [194 mm]
  J	25 ⅜” [645 mm]
  K	11 3/4 “ [298 mm]
  L	7 ⅝” [194 mm]
  M	14 1/2 “ [368 mm]
  N	20 ½” [521 mm]
  O	14 ¾” [375 mm]
  P	2 15/16” [75 mm]
  Q	5 ½” [140 mm]
  R	9 ⅛” [232 mm]
  S	32” [813 mm]
  T	10 ¾” [273 mm]
  U	20 ½” [521 mm]
  V	6” [152 mm]
  W	1 ¼” [32 mm]
  X	¾” x ⅜” x 6” [19 mm x 9.5 mm x 152 mm]
  Y	2” [51 mm]
  Z	3” [76 mm]
  AA	1 ½” [38 mm]

• CHIPPER SIZE 48" [122 CM]	SPECS
  A	48” [1219 mm]
  B	25 1/2” [648 mm]
  C	55” [1397 mm]
  D	29” [737 mm]
  E	20” [508 mm]
  F	12” [305 mm]
  G	12 ½” [318 mm]
  H	10” [254 mm]
  J	27” [686 mm]
  K	12 ½” [318 mm]
  L	10 3/4” [273 mm]
  M	18” [457 mm]
  N	21” [533 mm]
  O	20 ¾” [527 mm]
  P	3 15/16” [100 mm]
  Q	10 1/18” [257 mm]
  R	10 1/4” [260 mm]
  S	42” [1067 mm]
  T	12 ½” [318 mm]
  U	27” [686 mm]
  V	6” [152 mm]
  W	1 ¼” [32 mm]
  X	1” x 1 1/2” x 8 ½” [25 mm x 13 mm x 216 mm]
  Y	2” [51 mm]
  Z	3 3/4” [95 mm]
  AA	1 ½” [38 mm]

• CHIPPER SIZE 58" [147 xm]	SPECS
  A	57” [1448 mm]
  B	28 5/8” [727 mm]
  C	63” [1600 mm]
  D	33” [838 mm]
  E	24 1/2” [622 mm]
  F	12” [305 mm]
  G	13 1/2” [343 mm]
  H	10 1/2” [267 mm]
  J	30 3/4” [781 mm]
  K	13” [330 mm]
  L	9 5/8” [244 mm]
  M	22” [559 mm]
  N	22” [559 mm]
  O	26” [660 mm]
  P	4 7/16” [113 mm]
  Q	8 1/2” [216 mm]
  R	13 1/4” [337 mm]
  S	51” [1295 mm]
  T	13 ½” [343 mm]
  U	34” [864 mm]
  V	6” [152 mm]
  W	1 ¼” [32 mm]
  X	1” x 1 1/2” x 8 ½” [25 mm x 13 mm x 216 mm]
  Y	3” [76 mm]
  Z	3 3/4” [95 mm]
  AA	1 1/4” [32 mm]

• CHIPPER SIZE 66" [168 CM]	SPECS
  A	67” [1702 mm]
  B	35” [889 mm]
  C	74 1/4” [1886 mm]
  D	38 1/2” [978 mm]
  E	27 1/8” [689 mm]
  F	15” [381 mm]
  G	13 3/4” [349 mm]
  H	17 1/8” [435 mm]
  J	32 1/4” [819 mm]
  K	9” [229 mm]
  L	13 3/4” [349 mm]
  M	25” [635 mm]
  N	15 1/2” [394 mm]
  O	28” [711 mm]
  P	4 15/16” [125 mm]
  Q	11 1/2” [292 mm]
  R	19 7/8” [505 mm]
  S	55" [1397 mm]
  T	13 3/4” [349 mm]
  U	38” [965 mm]
  V	6” [152 mm]
  W	1 1/2" [38 mm]
  X	1 1/4” x 5/8” x 10” [32 mm x 16 mm x 254 mm]
  Y	6” [152 mm]
  Z	10 1/4” [260 mm]
  AA	1 1/4” [32 mm]

OPTIONS

• Horizontal Feed
• Rechipper Spout
• Discharge
• Drop or Gravity Feed
• Helical Wear Plates
• Left Hand or Right Hand
• Bottom Discharge
• Wear Liners
• 360° Swivel Discharge
• Top Discharge
• Carbide Anvils
• Belt Driven
• Rear Discharge
• Two piece Hood
• Direct Driven
• Cardbreakers
• One piece Hood
• Dissipator for Rear Discharge Chippers
• Hard Surfaced Counter Knives
