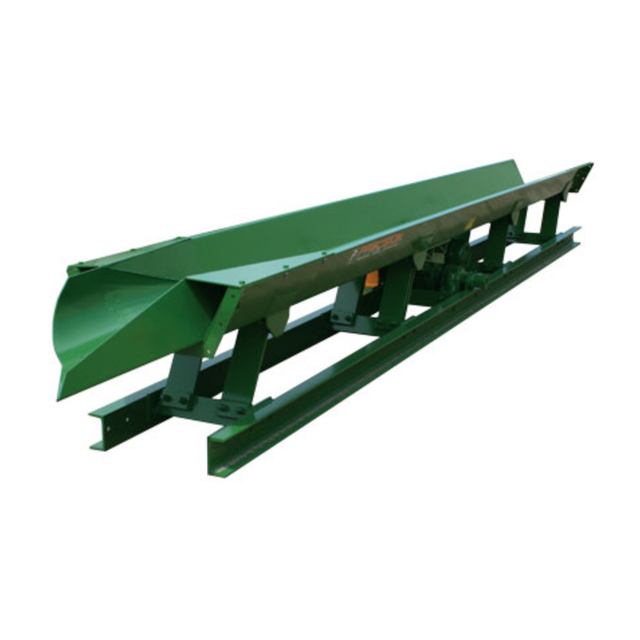

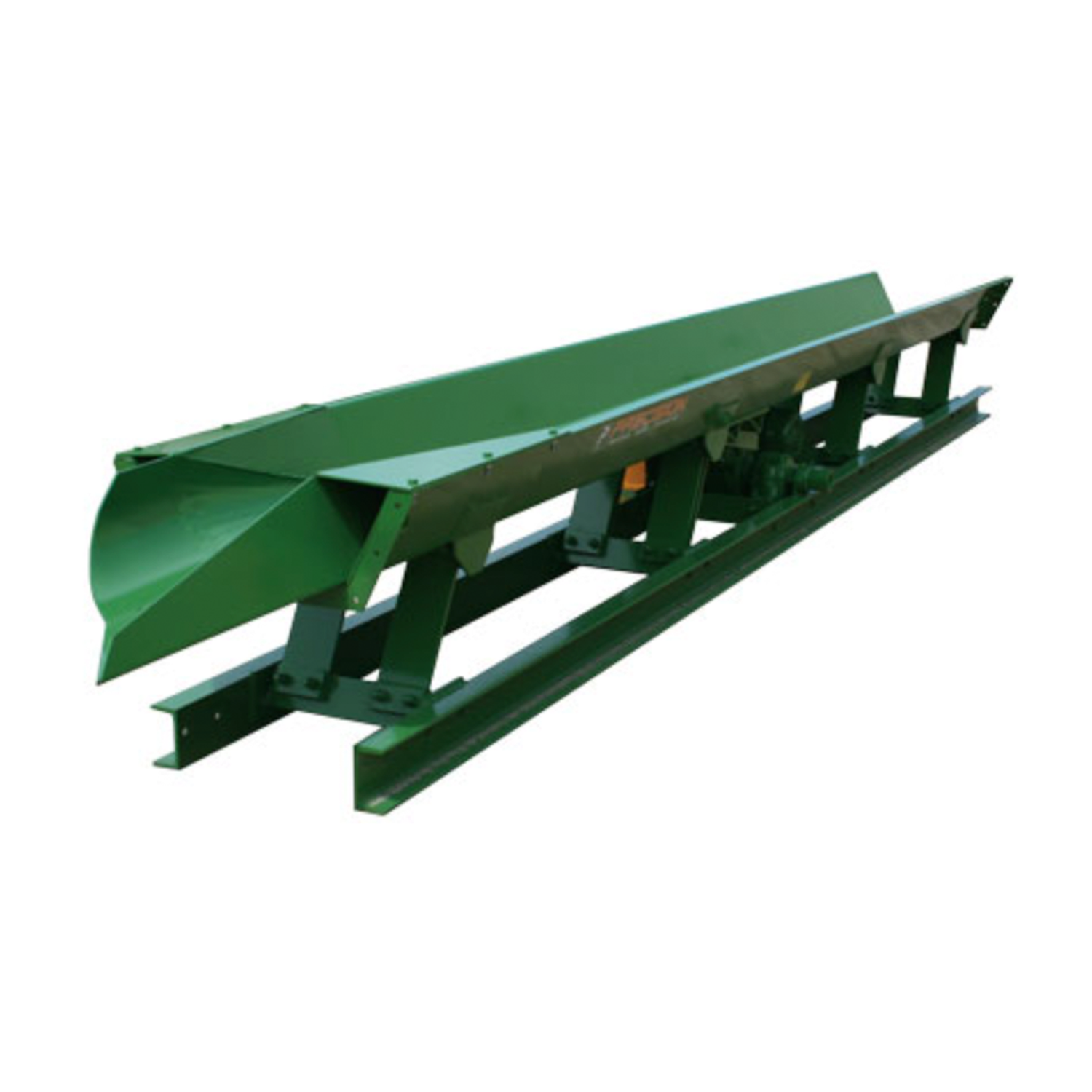

Precision Vibrating Conveyor
Precision Vibrating Conveyor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
Precision Vibrating Conveyor
Description
Description
CAPABILITIES
All components are heavy-duty as the spherical roller bearings used in the drive section. Motor under the conveyor gives added protection. Contact the factory for custom sizes, vibrating tables, various custom widths and screening sizes. Options include: chipper transitions, fiberglass sections for metal detector use, sawdust drop outs and wear liners.
Main frame for the heavy-duty unit is made from 6” channel at 16.3 pounds per foot. The vibrating conveyor’s energy is transferred through the heavy-duty fiberglass support bars to the heavy-duty channel. This secure footing reduces maintenance and insures long life.
Sawdust removal screen allows only blocks, slabs and edgings to enter the chipper, increasing chipper blade effectiveness and reducing dust. Sawdust discharge is custom, and user specified.

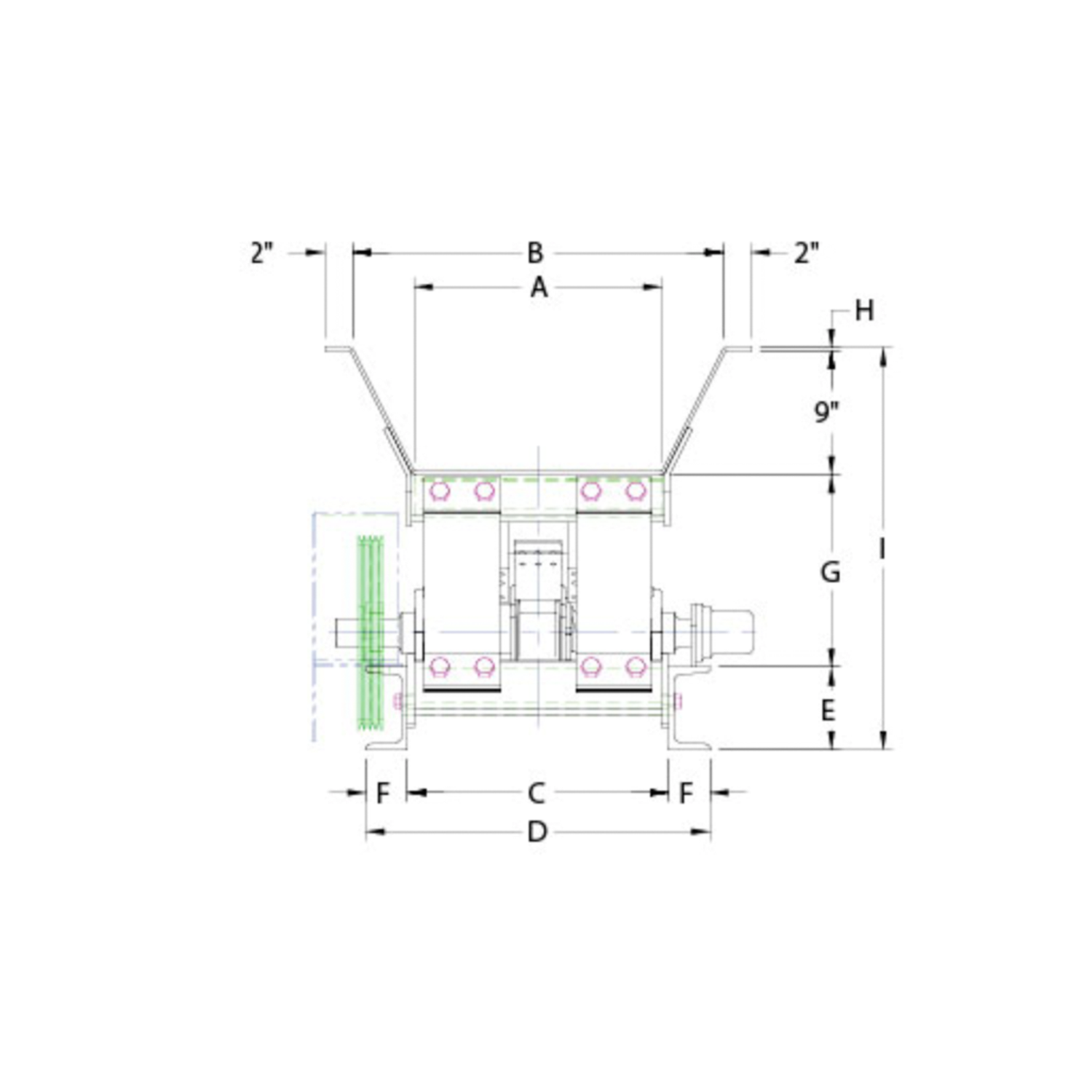

SPECIFICATIONS
-
PMD MEDIUM DUTY 18"
SPECS
A
18" [457mm]
B
27" [686mm]
C
15.5" [394mm]
D 19 1/4"[489]
E
5" [127mm]
F
1 7/8" [48mm]
G
7 3/4" [197mm]
H
3/16" [5mm]
I
21 3/4" [552mm]
-
PMD MEDIUM DUTY 24"
SPECS
A
24" [610mm]
B
33" [838mm]
C
15.5" [394mm]
D
19 1/4" [489mm]
E
5" [127mm]
F
1 7/8" [48mm]
G
7 3/4" [197mm]
H
3/16" [5mm]
I
21 ¾” [552mm]
-
PHD HEAVY DUTY 18"
SPECS
A
18" [457mm]
B
27" [686mm]
C
19" [483mm]
D 25" [635mm]
E
6" [152mm]
F
3" [76mm]
G
14" [356mm] H
1/4" [6mm]
I
29" [737mm]
-
PHD HEAVY DUTY 24"
SPECS
A
24" [610mm]
B
33" [610mm]
C
19" [483mm]
D
25" [635mm]
E
6" [152mm]
F
3" [76mm]
G
14" [356mm]
H
1/4" [6mm] I
29" [737mm]
-
