CAPABILITIES
ProGrind Tub Grinders offer industry-leading, user-friendly controls, clutch protection and a variety of hammer options for grinding versatility. The tub on each model tilts up to 90 degrees for easy access to the hammermill, screens and lower auger area. Precision Husky offers six rugged models, each built with ease of operation, cost and – always – your productivity in mind.
PERFORMANCE

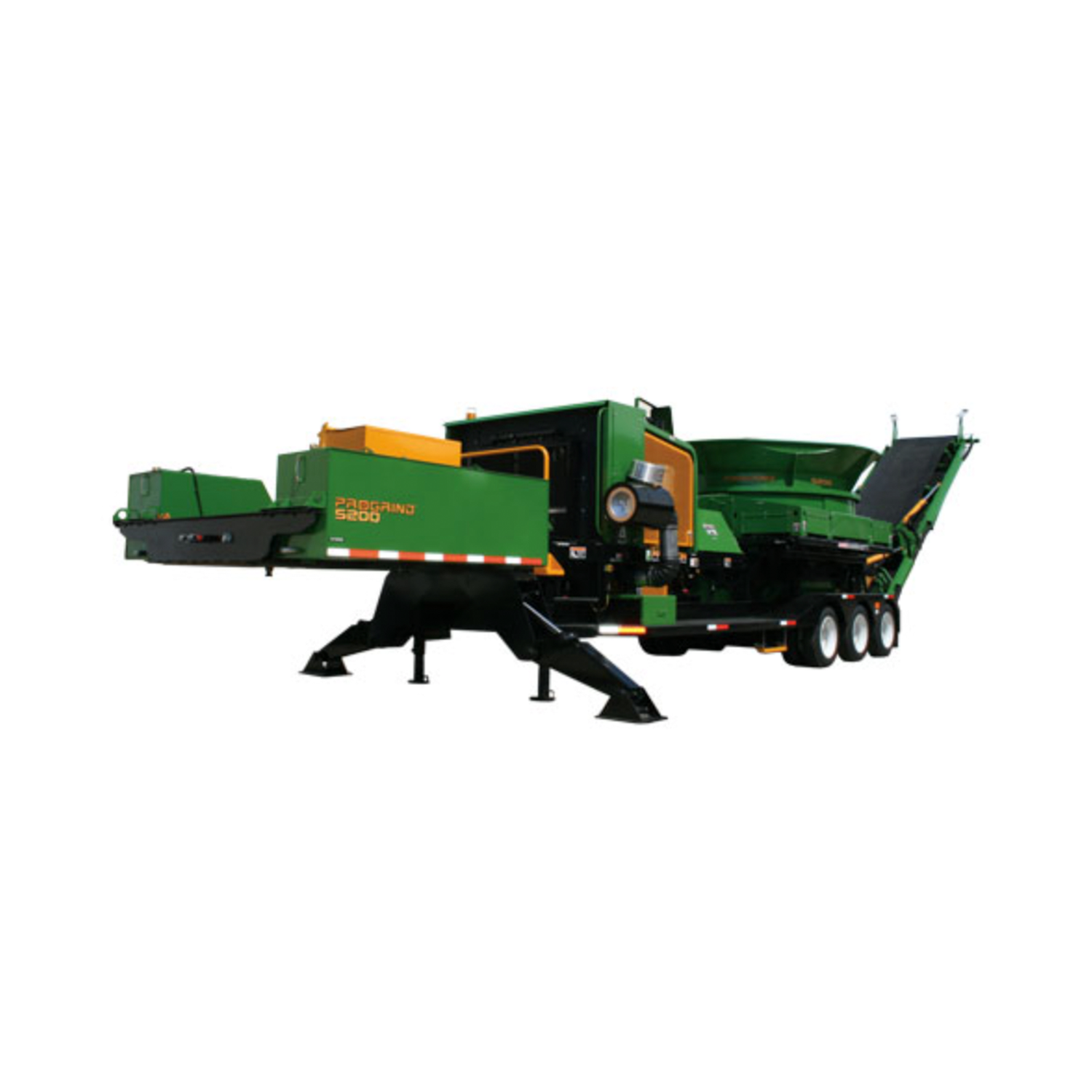

Our PG-5200 Tub Grinder is a bold new 5200, available in trailer or track mount, contains one of the most aggressive hammermills in the industry. It can cut through mountains of green waste at production rates of over 100 tons-per-hour! The special double-bolt hammer tips provide more durability and grinding ease, assuring high production rates, less wear on the hammermill and easy maintenance. It’s been called the most powerful, easy to use tub grinder in the industry.
The 5200 is operated by a dust and water-resistant, shock-mounted control box with a Sauer Plus 1 system, CAN+ radio remote controls and a smart display panel. The enclosed, wet hydraulic clutch is engaged from the control panel with fault indicators using a push button microprocessor.
Many of our customers choose the knuckle boom loader option, complete with air-conditioned cab (standard) and state-of-the-art joystick.
SPECIFICATIONS
-
GENERAL DIMENSIONS SPECS
Transport Length 44’ [13.41m] Transport Height
13’-6” [4.10 m]
Transport Width
11’-11” [3.63 m]
Loading Height
10’-9” [3.28 m]
Gross Weight
74,000 lbs [33,566 kg]
Tongue Weight
20,000 lbs. [9,072 kg]
Axle Weight 54,000 lbs. [24,494 kg]
Tongue Weight w/Loader
26,500 lbs. [1,134 kg]
Axle Weight w/Loader 53,500 lbs. [24,267 kg]
Gross Weight w/Loader 80,000 lbs. [36,287 kg]
-
ENGINE
SPECS
Horsepower
875-1200HP [652-895kw]
Air Cleaner
Donaldson Dry Type
Fuel Capacity
450 gal. [1,704 L]
Fluid Drive Hydraulic Wet Clutch Drive Shaft Spicer 1910 Final Drive -
CONTROL PANEL
SPECS
Controls / Gauges
Dust and Water Resistamt Shock-Mounted Control Box w/ Sauer Plus 1 System and Smart Display Panel to Include All Operating and Diagnostic Data. -
HAMMERMILL
SPECS
Opening 27” x 63” [686 x 1600 mm]
Length
60” [1.5 m] Shaft 7” [178 mm] Diameter Hardenend Alloy Steel
Diameter
16 7/8” [429 mm] O.D. with 8 1/4” [210 mm] Diameter Center
Mill Plates
2” [51 mm] Thick, Machined to 1 15/16” [49 mm] in Hammer Swing Area
Hammers
(32) 36 lb. [16.3 kg] Fixed w/2-Bolt Replaceable Tips Heat treated and Hard Surfaced Hammers Swing Diameter 26 3/4” [680 mm] Hammer Rods (12) 2 1/4” [57 mm] Diameter Alloy Steel Bearings 4 7/16” [113 mm] Double Row Sperical w/ Heat Monitoring System and Custom Ductile Cast Iron Housing
Screen Size 3,100 sq. in. [2.0 sq. m] -
TUB
SPECS
Inside Width
10’-0” [3 m]
Flare Width
13’ [3.96 m]
Depth
56” [1.4 m]
Walls
7/16” [11.1 mm] Steel Channel w/ Eight (8) 3/4” [19 mm] Stiffeners Welded Vertically to Support Tub and Flares
Fin Agitators
Six (6) 3/4” x 5” [19 mm x 127 mm] Speed
Variable, Up to 9 RPM Forward and Reverse; Auto-Reverse if Jammed
Drive
Tub Rotates by two (2) Hydraulic Piston Motors, Each Directly Driving a 140 DC Chain
-
DISCHARGE SYSTEM SPECS
Augers
Three (3) 12” [305 mm] Hydraulicly Driven and Reversible Stacking Conveyor
60” [152 mm] x 26’ [7.9 m] Long x 15’ [4.6 m] Stacking Height
Magnetic Roller 12” x 62” [305 x 1575mm] Magnetic Pulley w/ Nail Chute
-
OPTIONAL LOADER + EQUIPMENT
SPECS
Loader Reach 25’-1” [7.64 m] Loader Lift Capacity 9650 lbs. [4377 kg] @ 10’ [3.05 m] 6650 lbs. [3016 kg] @ 15’ [4.57 m] 5100 lbs. [2313 kg] @ 20’ [6.10 m]
Loader Cab Controls Electric Operated Joystick Controls; Engine Speed; Clutch, Tub, Conveyor, Outrigger and Cab Height Controls. Loader Cab Gauges All included in Control Panel Display Loader Cab Features 1/2” [13 mm] Lexan Windshield, Wiper, Washer, Defroster, Dome Light, Fan, Horn, Insulation, Heater, Air Conditioner, Raises for Loading Loader Grapples 1/3 Cord Bypass or Claw. Continuous Rotation OPTIONAL EQUIPMENT Screens Various Standard and Custom Sizes Available. Other Air Compressor, Radio Remote Control, Auto-Reversing Fan.
